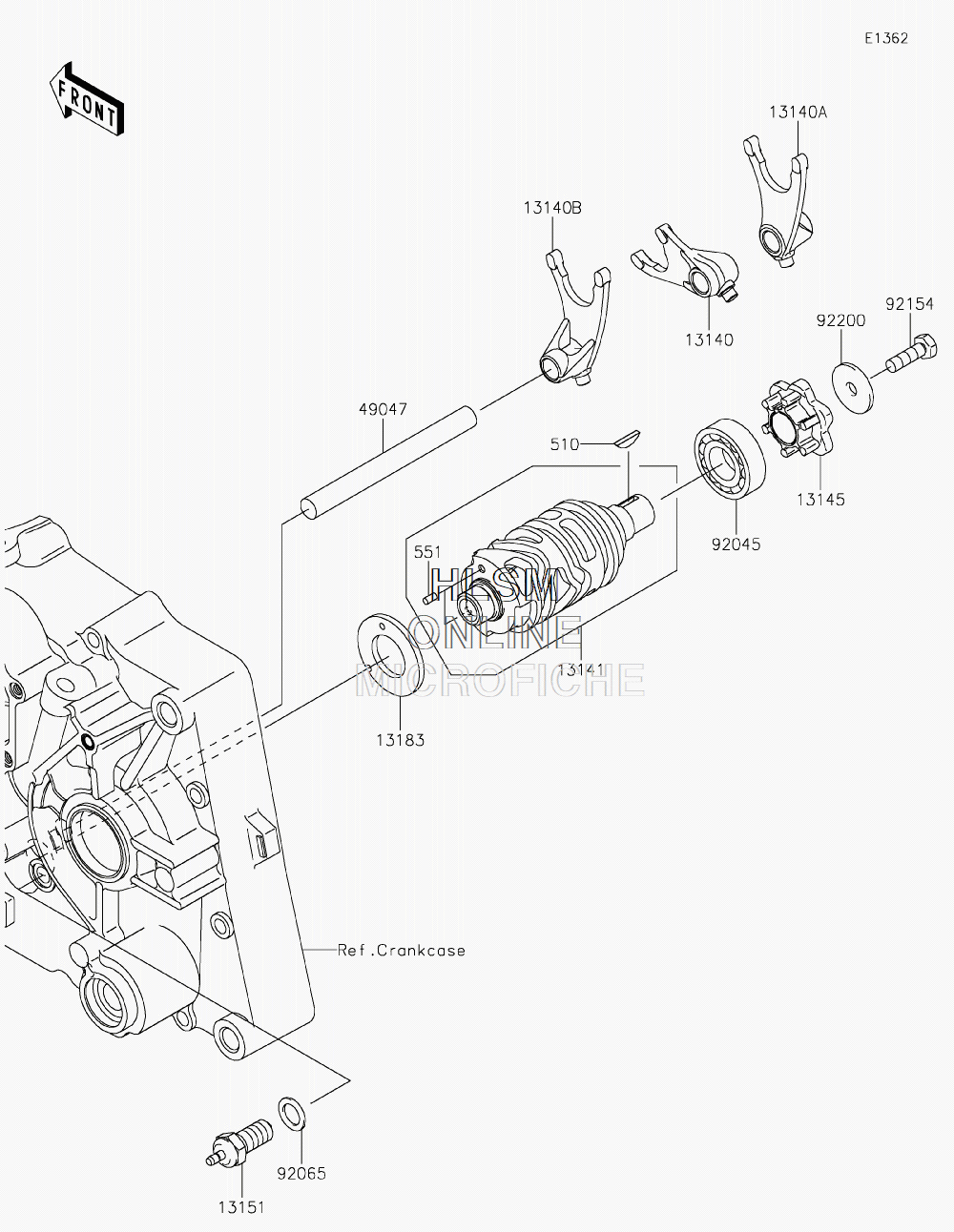

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 13140
    13140-0066 FORK-SHIFT, INPUT
    FORK-SHIFT, INPUT
  • 13140A
    13140-0067 FORK-SHIFT, OUTPUT RIGHT HAND
    FORK-SHIFT, OUTPUT RIGHT HAND
  • 13140B
    13140-0068 FORK-SHIFT, OUTPUT LEFT HAND
    FORK-SHIFT, OUTPUT LEFT HAND
  • 13141
    13141-0572 DRUM-CHANGE
    DRUM-CHANGE
  • 13145
    13145-0045 CAM-CHANGE DRUM
    CAM-CHANGE DRUM
  • 13151
    13151-1099 SWITCH-COMP, NEUTRAL
    SWITCH-COMP, NEUTRAL
  • 13183
    13183-1066 PLATE, CHANGE
    PLATE, CHANGE
  • 49047
    49047-1094 ROD-SHIFT
    ROD-SHIFT
  • 510
    510A3200 KEY-WOODRUFF
    KEY-WOODRUFF
  • 551
    551A0306 PIN-DOWEL, 3X6
    PIN-DOWEL, 3X6
  • 92045
    92045-0126 BEARING-BALL, 17X35X10
    BEARING-BALL, 17X35X10
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92154
    92154-1166 BOLT, UPSET, 6X20
    BOLT, UPSET, 6X20
  • 92200
    92200-0838 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
