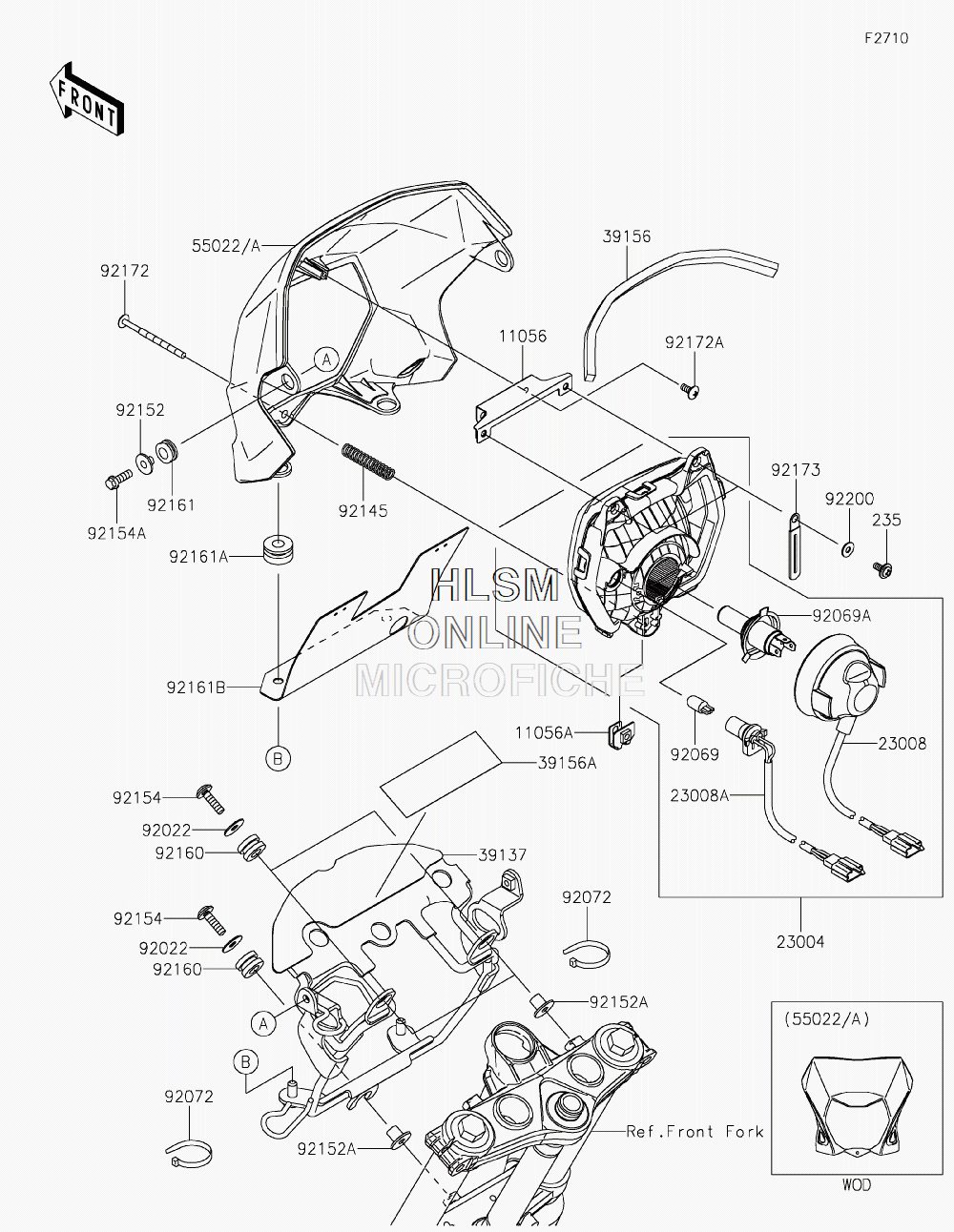

HEADLIGHT(S) для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1105611056-7216 BRACKETBRACKET
-
11056A11056-7968 BRACKETBRACKET
-
2300423004-0357 LAMP-HEADLAMP-HEAD
-
2300823008-0173 SOCKET-ASSY, HEAD LAMPSOCKET-ASSY, HEAD LAMP
-
23008A23008-0174 SOCKET-ASSY, POSITION LAMPSOCKET-ASSY, POSITION LAMP
-
235235AA0512 SCREW-PAN-WP-CROS, 5X12SCREW-PAN-WP-CROS, 5X12
-
3913739137-0674 STAY-COMP, HEAD LAMPSTAY-COMP, HEAD LAMP
-
3915639156-1857 PAD, 10X260X7PAD, 10X260X7
-
39156A39156-2305 PAD, 35X110PAD, 35X110
-
5502255022-0312-290 COVER-HEAD LAMP, (L.GREEN) (FOR 290)COVER-HEAD LAMP, (L.GREEN) (FOR 290)
-
55022A55022-0312-6C COVER-HEAD LAMP, (EBONY) (FOR 6C)COVER-HEAD LAMP, (EBONY) (FOR 6C)
-
9202292022-165 WASHER, PLAIN, 6.5X20X1WASHER, PLAIN, 6.5X20X1
-
9206992069-0059 BULB, 12V 5WBULB, 12V 5W
-
92069A92069-0086 BULB, 12V35/35WBULB, 12V35/35W
-
9207292072-0044 BAND, L=220BAND, L=220
-
9214592145-1645 SPRINGSPRING
-
9215292152-0295 COLLARCOLLAR
-
92152A92152-2494 COLLAR, 6.5X10X13.1COLLAR, 6.5X10X13.1
-
9215492154-3758 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
92154A92154-3761 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9216092160-1167 DAMPER, 10X20X12DAMPER, 10X20X12
-
9216192161-1535 DAMPER, 10X18X7.5DAMPER, 10X18X7.5
-
92161A92161-1536 DAMPER, 7.5X22X11DAMPER, 7.5X22X11
-
92161B92161-2115 DAMPERDAMPER
-
9217292172-0909 SCREW, 5X70SCREW, 5X70
-
92172A92172-1255 SCREW, CROS, 5X10SCREW, CROS, 5X10
-
9217392173-1424 CLAMPCLAMP
-
9220092200-1694 WASHER, 5.2X13X1WASHER, 5.2X13X1
