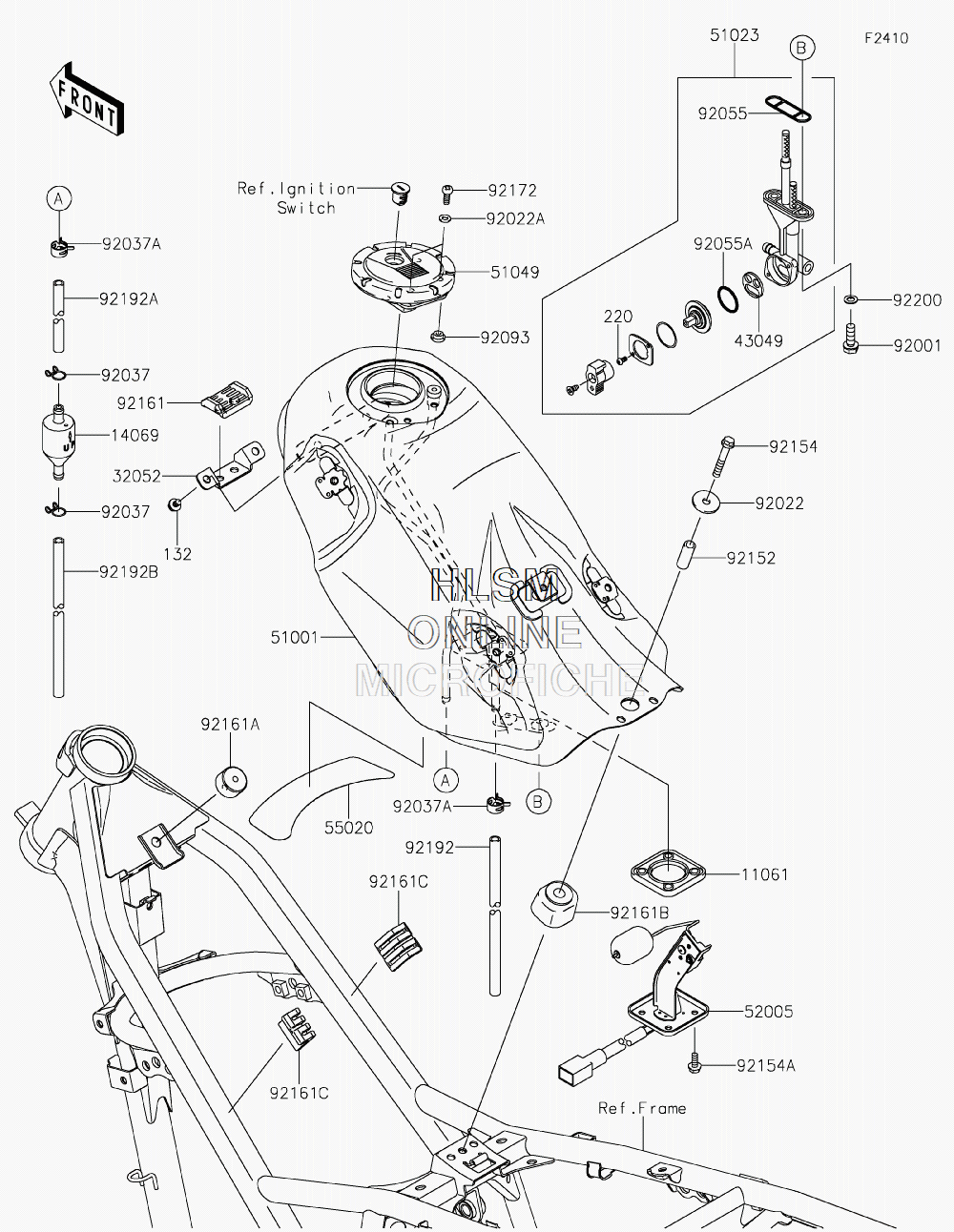

FUEL TANK для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0279 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
132132BB0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
1406914069-1004 BREATHER, FUEL TANKBREATHER, FUEL TANK
-
220220AA0308 SCREW-PAN-CROS, 3X8SCREW-PAN-CROS, 3X8
-
3205232052-0735 BRACKET-TANKBRACKET-TANK
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
5100151001-0828-25Q TANK-COMP-FUEL, (F.S.BLACK)TANK-COMP-FUEL, (F.S.BLACK)
-
5102351023-0037 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104951049-0049 CAP-TANK, FUELCAP-TANK, FUEL
-
5200552005-0748 GAUGE, FUEL TANKGAUGE, FUEL TANK
-
5502055020-0950 GUARDGUARD
-
9200192001-1091 BOLT, 6X20BOLT, 6X20
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1601 CLAMPCLAMP
-
9205592055-1112 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92055A92055-1419 RING-O, TAP LEVERRING-O, TAP LEVER
-
9209392093-0722 SEAL, RO 2X12X4.8SEAL, RO 2X12X4.8
-
9215292152-2175 COLLAR, 6.8X10X27COLLAR, 6.8X10X27
-
9215492154-1134 BOLTBOLT
-
92154A92154-1215 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9216192161-0705 DAMPERDAMPER
-
92161A92161-1533 DAMPERDAMPER
-
92161B92161-1817 DAMPERDAMPER
-
92161C92161-2111 DAMPERDAMPER
-
9217292172-0496 SCREW, 5X10SCREW, 5X10
-
9219292192-1085 TUBE, 6X9X620TUBE, 6X9X620
-
92192A92192-1442 TUBE, 6X9X56TUBE, 6X9X56
-
92192B92192-1443 TUBE, 6X9X260TUBE, 6X9X260
-
9220092200-0177 WASHER, 6.5X11.5X0.8WASHER, 6.5X11.5X0.8
