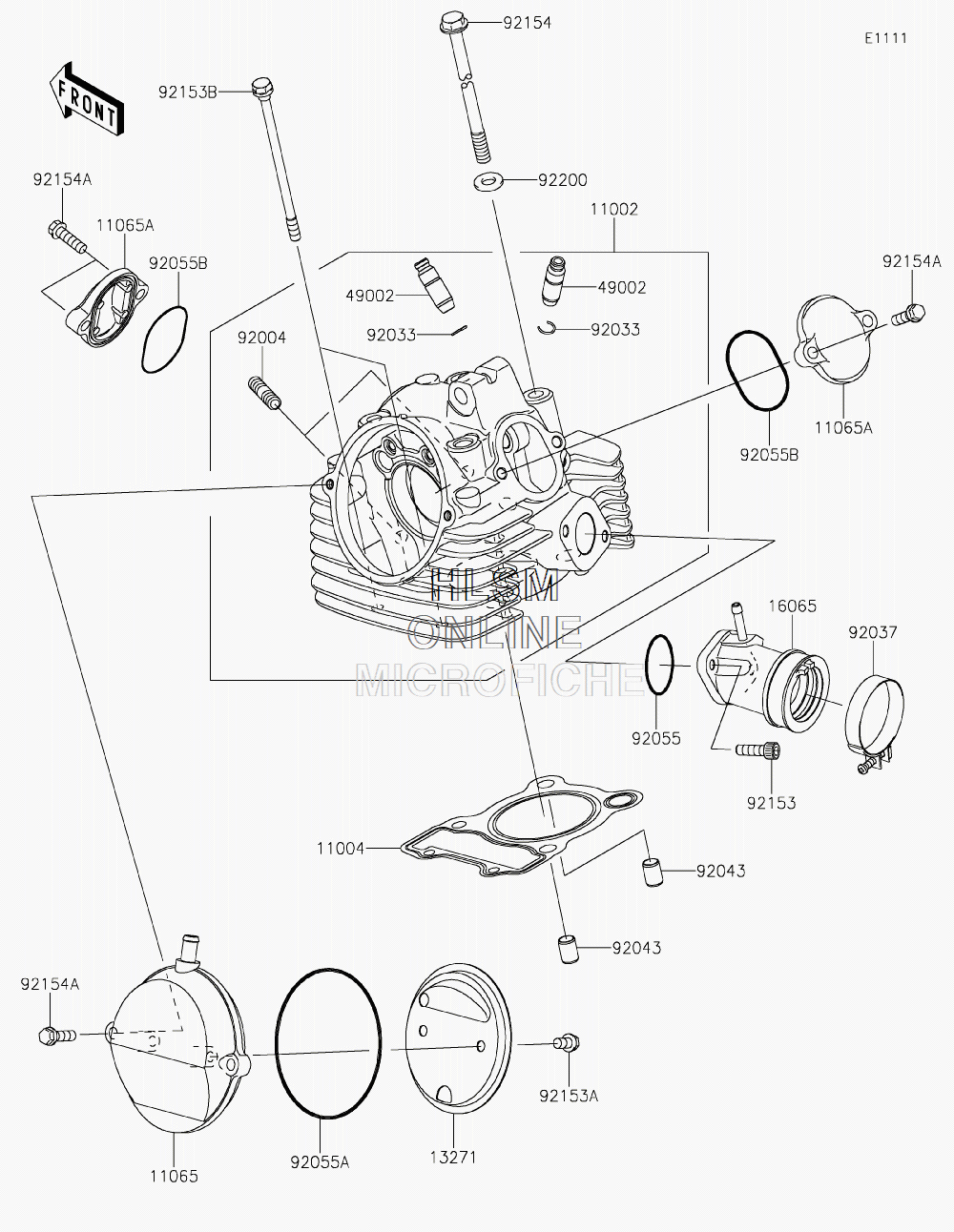

CYLINDER HEAD для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1100211002-0126 HEAD-ASSY-CYLINDERHEAD-ASSY-CYLINDER
-
1100411004-0751 GASKET-HEADGASKET-HEAD
-
1106511065-0799 CAPCAP
-
11065A11065-0800 CAP, VALVE, ADJUSTINGCAP, VALVE, ADJUSTING
-
1327113271-1844 PLATE, BREATHERPLATE, BREATHER
-
1606516065-0061 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-0019 GUIDE-VALVEGUIDE-VALVE
-
9200492004-0722 STUD, 8X22STUD, 8X22
-
9203392033-0789 RING-SNAPRING-SNAP
-
9203792037-1305 CLAMPCLAMP
-
9204392043-0100 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-0191 RING-O, 32X1.9RING-O, 32X1.9
-
92055A92055-0202 RING-O, 86X1.9RING-O, 86X1.9
-
92055B92055-1697 RING-ORING-O
-
9215392153-0481 BOLT, 6X20BOLT, 6X20
-
92153A92153-1140 BOLT, 6X10BOLT, 6X10
-
92153B92153-1970 BOLT, FLANGED, 6X110BOLT, FLANGED, 6X110
-
9215492154-1155 BOLT, FLANGED, 8X201BOLT, FLANGED, 8X201
-
92154A92154-1219 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9220092200-1631 WASHER, 8.2X17X2.3WASHER, 8.2X17X2.3
