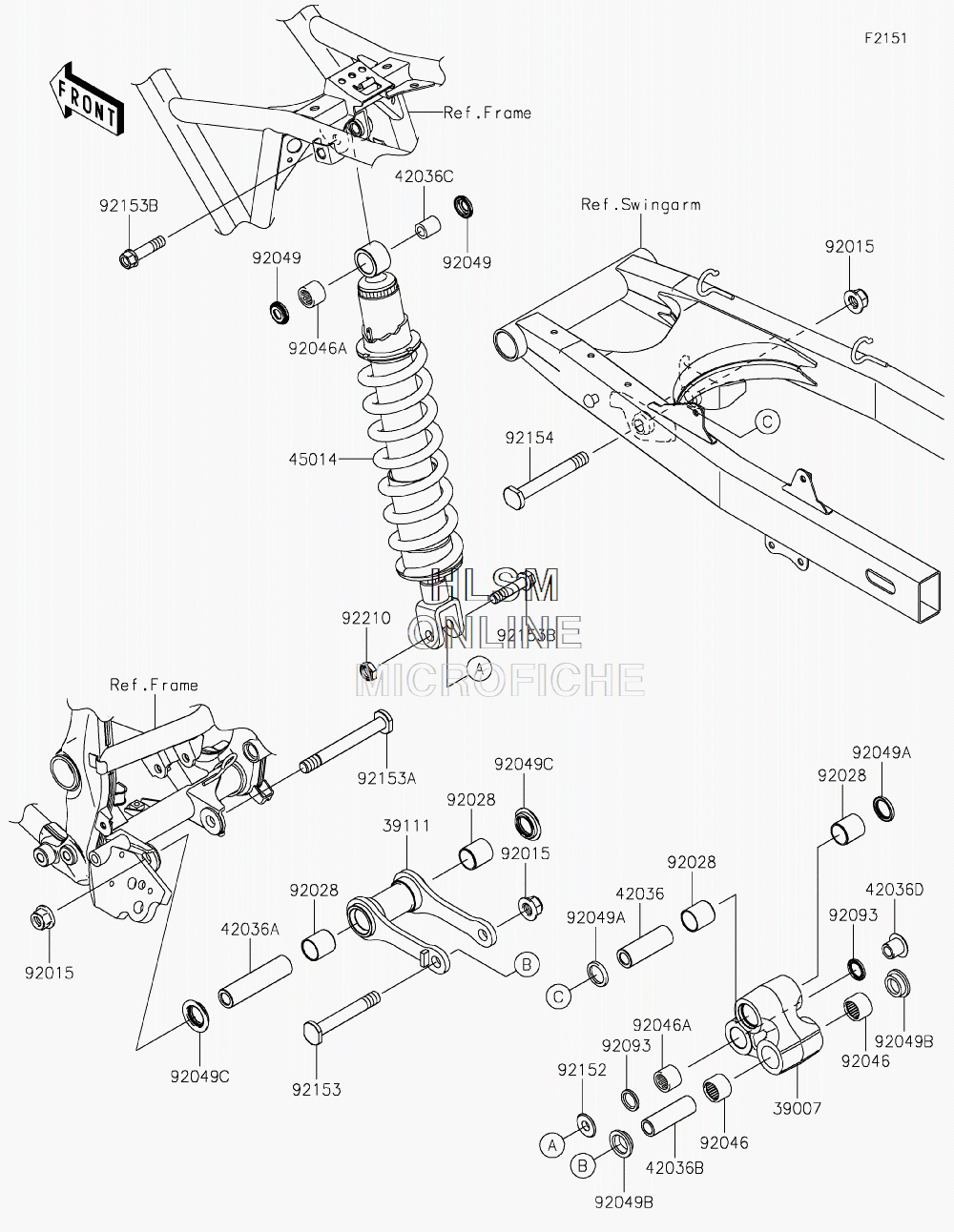

SUSPENSION - SHOCK ABSORBER для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
3900739007-0391 ARM-SUSPARM-SUSP
-
3911139111-0323-458 ROD-TIE, (P.SILVER)ROD-TIE, (P.SILVER)
-
4203642036-0046 SLEEVE, 12.1X20X58SLEEVE, 12.1X20X58
-
42036A42036-0068 SLEEVE, 12.1X20X82.6SLEEVE, 12.1X20X82.6
-
42036B42036-0827 SLEEVE, 12.1X18X58SLEEVE, 12.1X18X58
-
42036C42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036D42036-1351 SLEEVESLEEVE
-
4501445014-0532-458 SHOCKABSORBER, (P.SILVER)SHOCKABSORBER, (P.SILVER)
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202892028-1598 BUSHINGBUSHING
-
9204692046-1144 BEARING-NEEDLE, 18BM2416BEARING-NEEDLE, 18BM2416
-
92046A92046-1192 BEARING-NEEDLE, 16BM2212BEARING-NEEDLE, 16BM2212
-
9204992049-0069 SEAL-OILSEAL-OIL
-
92049A92049-0135 SEAL-OIL, SDO 20 26 3SEAL-OIL, SDO 20 26 3
-
92049B92049-0813 SEAL-OIL, 18X30X5.7SEAL-OIL, 18X30X5.7
-
92049C92049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
9209392093-0155 SEAL, SO 16 22 2.5SEAL, SO 16 22 2.5
-
9215292152-1139 COLLARCOLLAR
-
9215392153-1828 BOLT, 12X85BOLT, 12X85
-
92153A92153-1829 BOLT, 12X108BOLT, 12X108
-
92153B92153-1957 BOLT, FLANGED, 10X42BOLT, FLANGED, 10X42
-
9215492154-1185 BOLT, 12X95BOLT, 12X95
-
9221092210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
