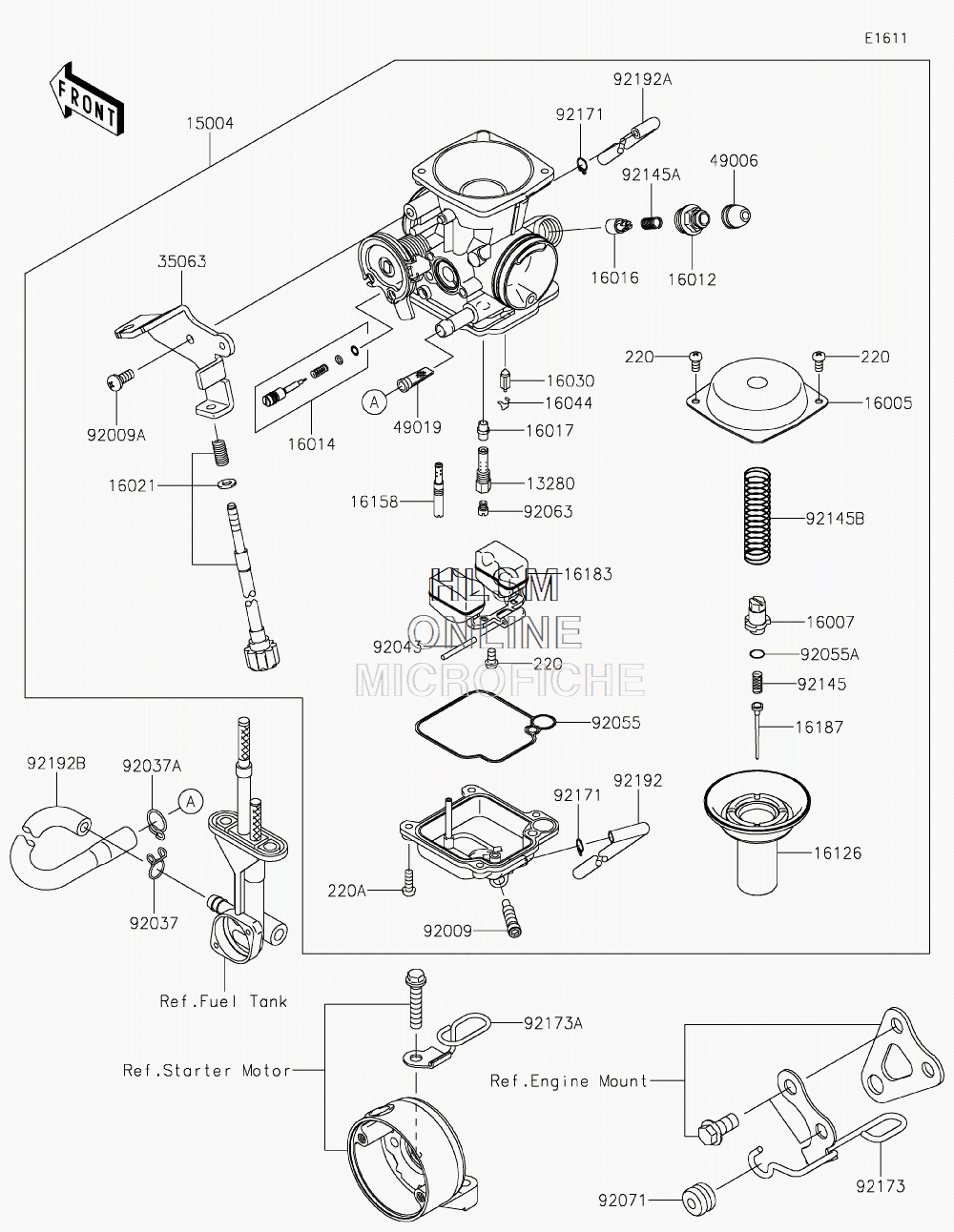

CARBURETOR для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1328013280-0235 HOLDERHOLDER
-
1500415004-0911 CARBURETOR-ASSYCARBURETOR-ASSY
-
1600516005-0003 TOP-CHAMBERTOP-CHAMBER
-
1600716007-0020 SEAT-SPRINGSEAT-SPRING
-
1601216012-0003 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
1601416014-0016 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0014 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-0017 JET-NEEDLEJET-NEEDLE
-
1602116021-0022 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-0005 VALVE-FLOATVALVE-FLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-0020 VALVEVALVE
-
1615816158-0007 JET-SLOWJET-SLOW
-
1618316183-0004 FLOAT-ASSYFLOAT-ASSY
-
1618716187-0573 NEEDLE-JETNEEDLE-JET
-
220220AA0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220AA0412 SCREW-PAN-CROS, 4X12SCREW-PAN-CROS, 4X12
-
3506335063-0684 STAYSTAY
-
4900649006-0039 BOOTBOOT
-
4901949019-1097 FILTER-FUELFILTER-FUEL
-
9200992009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
92009A92009-1865 SCREW, PLATESCREW, PLATE
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1935 CLAMPCLAMP
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-0084 RING-O, CHAMBER GASKETRING-O, CHAMBER GASKET
-
92055A92055-1223 RING-ORING-O
-
9206392063-0020 JET-MAIN, #112JET-MAIN, #112
-
9207192071-0038 GROMMETGROMMET
-
9214592145-0309 SPRINGSPRING
-
92145A92145-0313 SPRING, COILSPRING, COIL
-
92145B92145-0936 SPRINGSPRING
-
9217192171-0494 CLAMPCLAMP
-
9217392173-1066 CLAMPCLAMP
-
92173A92173-1430 CLAMPCLAMP
-
9219292192-0233 TUBETUBE
-
92192A92192-0876 TUBETUBE
-
92192B92192-1726 TUBE, TAP-ASSY-CARBURETORTUBE, TAP-ASSY-CARBURETOR
