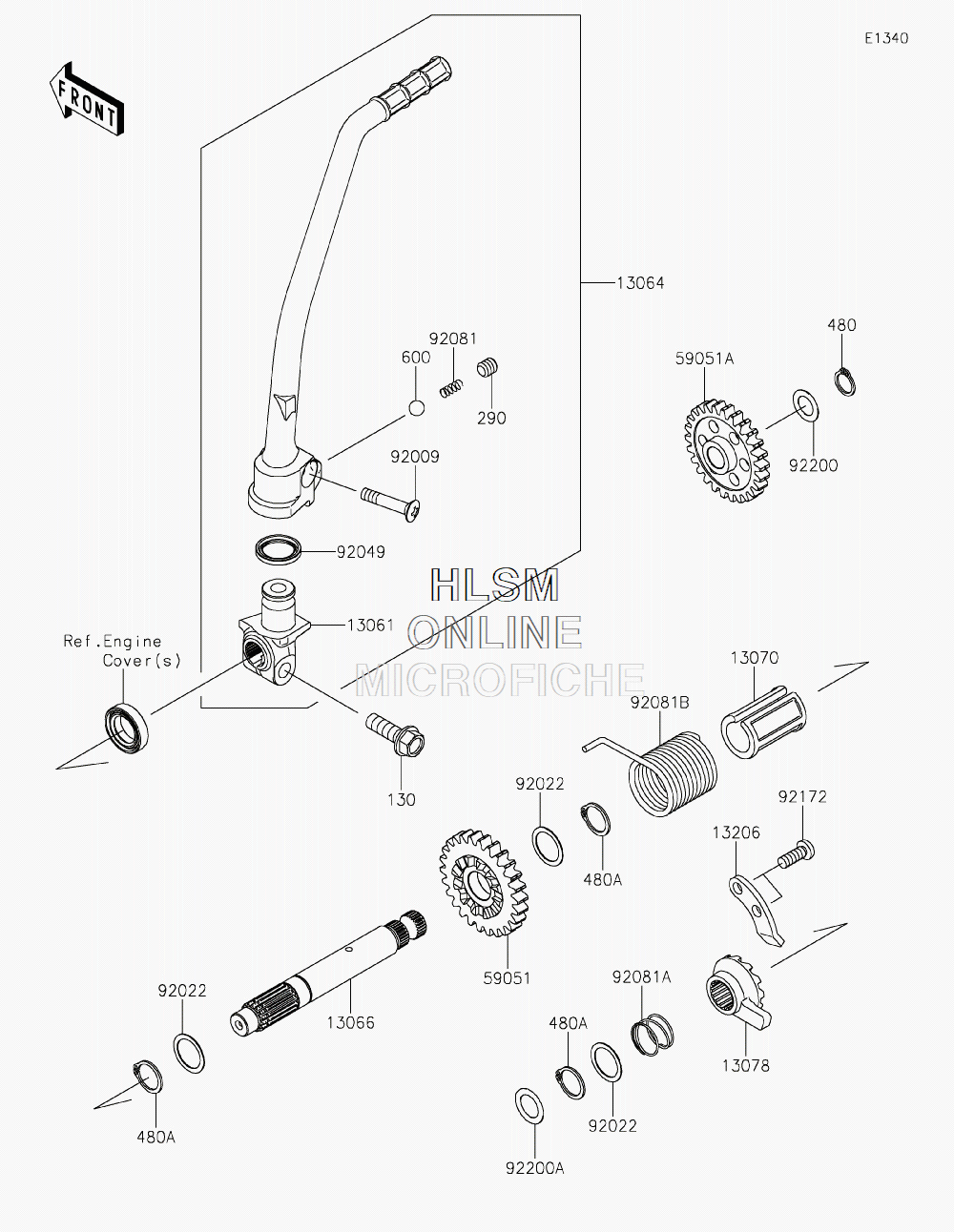

KICKSTARTER MECHANISM для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
130130CA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
1306113061-0778 BOSSBOSS
-
1306413064-0074 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-0014 SHAFT-KICKSHAFT-KICK
-
1307013070-1035 GUIDE, KICK SHAFTGUIDE, KICK SHAFT
-
1307813078-0030 RATCHETRATCHET
-
1320613206-1070 GUIDE-KICKGUIDE-KICK
-
290290CA0808 SCREW-SET-SOCKET, 8X8SCREW-SET-SOCKET, 8X8
-
480480J1200 CIRCLIP-TYPE-C, 12MMCIRCLIP-TYPE-C, 12MM
-
480A480J1600 CIRCLIP-TYPE-C, 16MMCIRCLIP-TYPE-C, 16MM
-
5905159051-0735 GEAR-SPUR, KICK STARTER, 26TGEAR-SPUR, KICK STARTER, 26T
-
59051A59051-0738 GEAR-SPUR, IDLE, 26TGEAR-SPUR, IDLE, 26T
-
600600A0800 BALL-STEEL, 1/4BALL-STEEL, 1/4
-
9200992009-1607 SCREW, 6X27SCREW, 6X27
-
9202292022-315 WASHER, 16.8X22X0.5WASHER, 16.8X22X0.5
-
9204992049-1387 SEAL-OIL, KICK PEDALSEAL-OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
92081B92081-1276 SPRING, KICK STARTERSPRING, KICK STARTER
-
9217292172-1051 SCREW, 6X16SCREW, 6X16
-
9220092200-0298 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
92200A92200-0571 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
