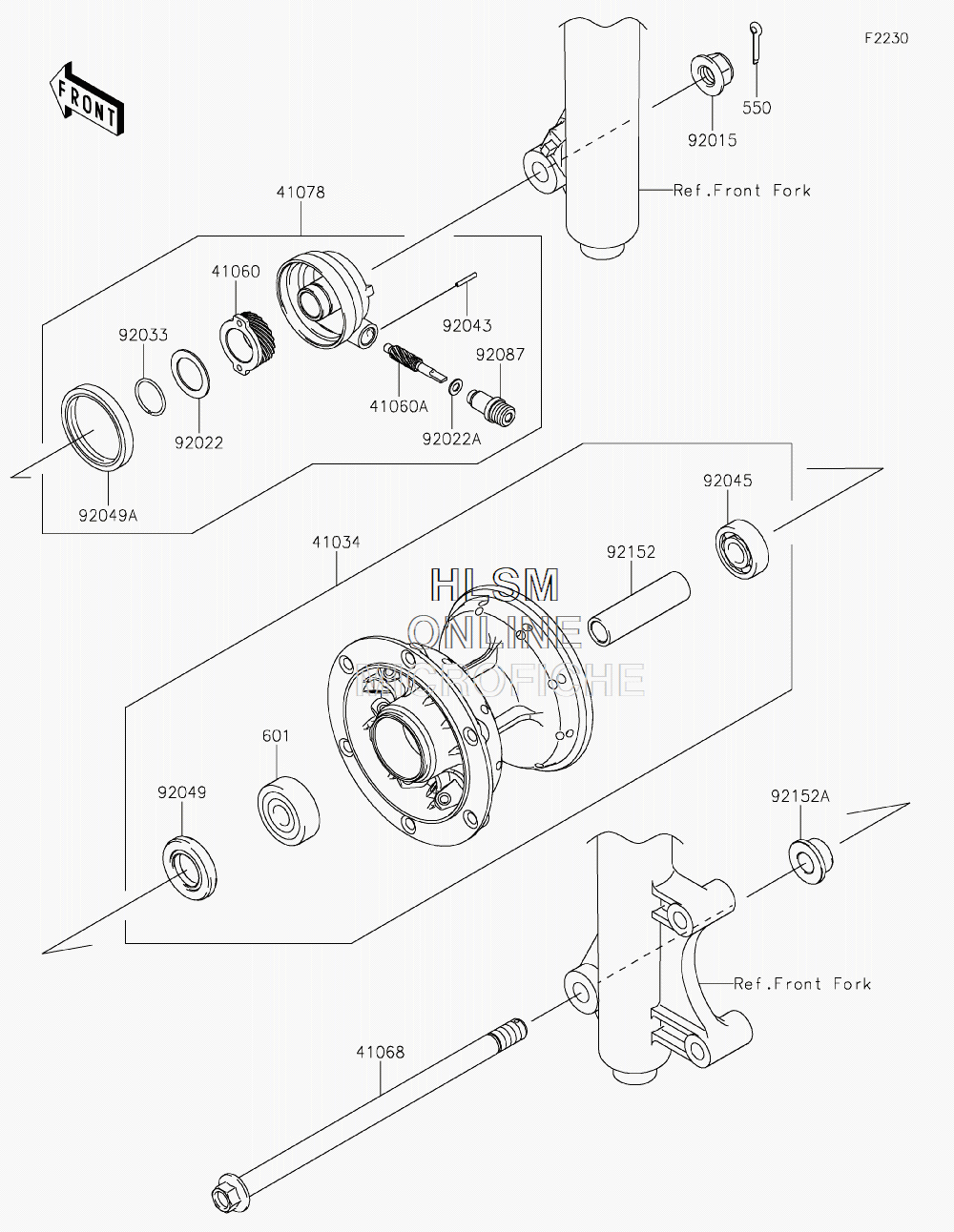

FRONT HUB для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 41034
    41034-0595 DRUM-ASSY, FRONT
    DRUM-ASSY, FRONT
  • 41060
    41060-0012 GEAR-METER SCREW, DRIVE, 24T
    GEAR-METER SCREW, DRIVE, 24T
  • 41060A
    41060-0013 GEAR-METER SCREW, PINION, 8T
    GEAR-METER SCREW, PINION, 8T
  • 41068
    41068-0582 AXLE, FRONT, 12X226
    AXLE, FRONT, 12X226
  • 41078
    41078-0016 CASE-ASSY-METER GEAR
    CASE-ASSY-METER GEAR
  • 550
    550AA2520 PIN-COTTER, 2.5X20
    PIN-COTTER, 2.5X20
  • 601
    601B6301UU BEARING-BALL, #6201UUC3
    BEARING-BALL, #6201UUC3
  • 92015
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92022
    92022-1510 WASHER, 20X29X1.0
    WASHER, 20X29X1.0
  • 92022A
    92022-1511 WASHER, 5X9.5X0.8
    WASHER, 5X9.5X0.8
  • 92033
    92033-1160 RING-SNAP, 19MM
    RING-SNAP, 19MM
  • 92043
    92043-1220 PIN, SPRING, 2X14
    PIN, SPRING, 2X14
  • 92045
    92045-0747 BEARING-BALL, 601B6201UU
    BEARING-BALL, 601B6201UU
  • 92049
    92049-0113 SEAL-OIL, 20X37X6.5
    SEAL-OIL, 20X37X6.5
  • 92049A
    92049-0727 SEAL-OIL, 42X50X6
    SEAL-OIL, 42X50X6
  • 92087
    92087-1051 BUSHING-METER GEAR
    BUSHING-METER GEAR
  • 92152
    92152-0709 COLLAR, 12.2X17.3X62.5
    COLLAR, 12.2X17.3X62.5
  • 92152A
    92152-0736 COLLAR
    COLLAR
