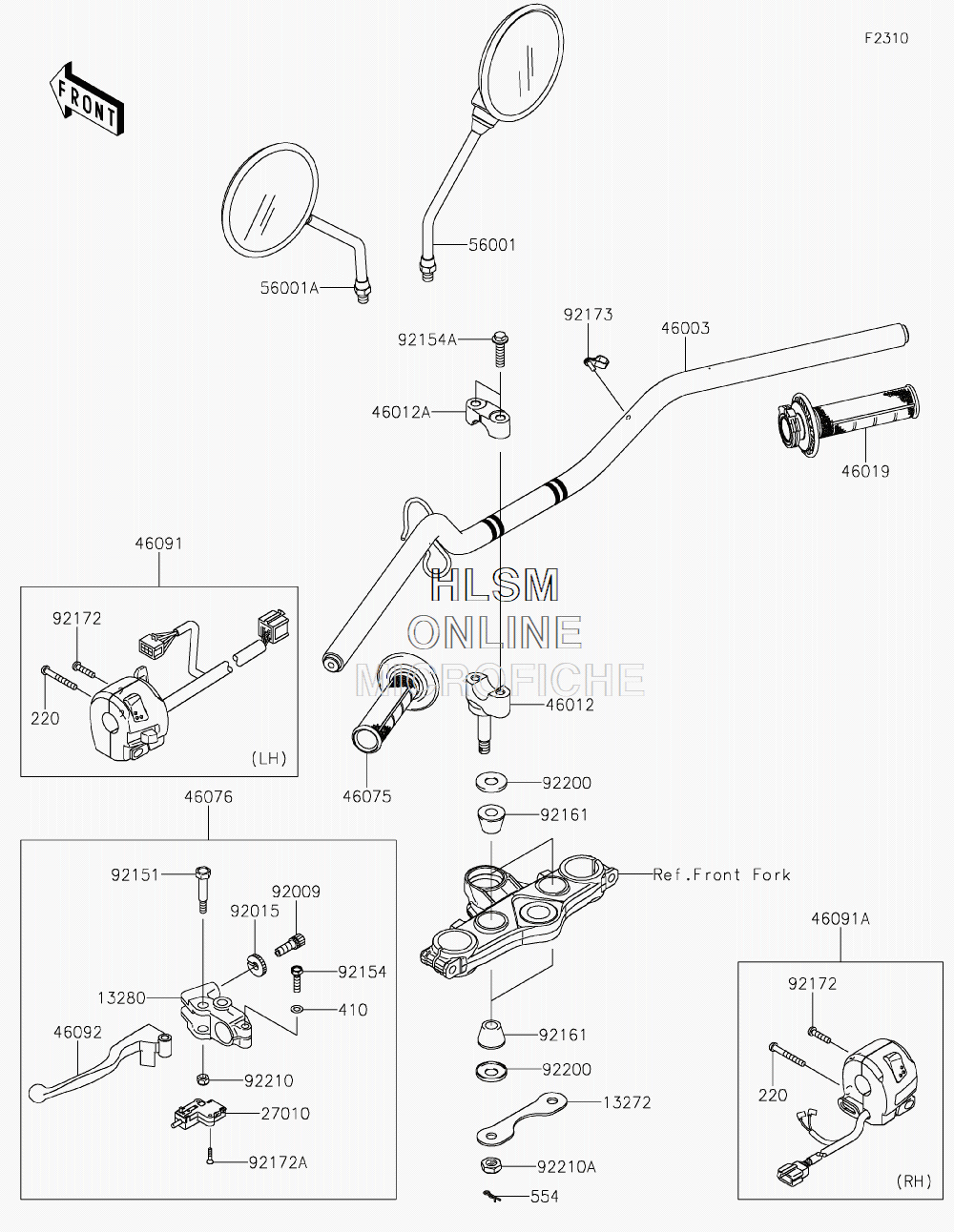

HANDLEBAR для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 13272
    13272-0795 PLATE
    PLATE
  • 13280
    13280-0105 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 220
    220AB0540 SCREW-PAN-CROS, 5X40
    SCREW-PAN-CROS, 5X40
  • 27010
    27010-0729 SWITCH, CLUTCH
    SWITCH, CLUTCH
  • 410
    410AB0600 WASHER-PLAIN-SMALL, 6MM
    WASHER-PLAIN-SMALL, 6MM
  • 46003
    46003-0667-458 HANDLE, (P.SILVER)
    HANDLE, (P.SILVER)
  • 46012
    46012-0075-458 HOLDER-HANDLE, LOWER, (P.SILVER)
    HOLDER-HANDLE, LOWER, (P.SILVER)
  • 46012A
    46012-0380-458 HOLDER-HANDLE, UPPER, (P.SILVER)
    HOLDER-HANDLE, UPPER, (P.SILVER)
  • 46019
    46019-0026 GRIP-ASSY, THROTTLE
    GRIP-ASSY, THROTTLE
  • 46075
    46075-0587 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-0148 LEVER-ASSY-GRIP, CLUTCH
    LEVER-ASSY-GRIP, CLUTCH
  • 46091
    46091-0306 HOUSING-ASSY-CONTROL, LEFT HAND
    HOUSING-ASSY-CONTROL, LEFT HAND
  • 46091A
    46091-0310 HOUSING-ASSY-CONTROL, RIGHT HAND
    HOUSING-ASSY-CONTROL, RIGHT HAND
  • 46092
    46092-0050 LEVER-GRIP, CLUTCH
    LEVER-GRIP, CLUTCH
  • 554
    554DA0800 PIN-SNAP
    PIN-SNAP
  • 56001
    56001-0166 MIRROR-ASSY, RIGHT HAND
    MIRROR-ASSY, RIGHT HAND
  • 56001A
    56001-0169 MIRROR-ASSY, LEFT HAND
    MIRROR-ASSY, LEFT HAND
  • 92009
    92009-1134 SCREW, CABLE ADJUST, 8MM, (BLACK)
    SCREW, CABLE ADJUST, 8MM, (BLACK)
  • 92015
    92015-1197 NUT, CABLE ADJUST LOCK, 8MM, (BLACK)
    NUT, CABLE ADJUST LOCK, 8MM, (BLACK)
  • 92151
    92151-1986 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92154
    92154-1422 BOLT, UPSET, 6X22
    BOLT, UPSET, 6X22
  • 92154A
    92154-3762 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 92161
    92161-2116 DAMPER, 12X26X19
    DAMPER, 12X26X19
  • 92172
    92172-0469 SCREW-PAN-CROS, 5X22
    SCREW-PAN-CROS, 5X22
  • 92172A
    92172-1187 SCREW-CSK-CROS, 3X16
    SCREW-CSK-CROS, 3X16
  • 92173
    92173-1077 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92200
    92200-0872 WASHER, 12.5X27.6X1.2
    WASHER, 12.5X27.6X1.2
  • 92210
    92210-1551 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
  • 92210A
    92210-1672 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
