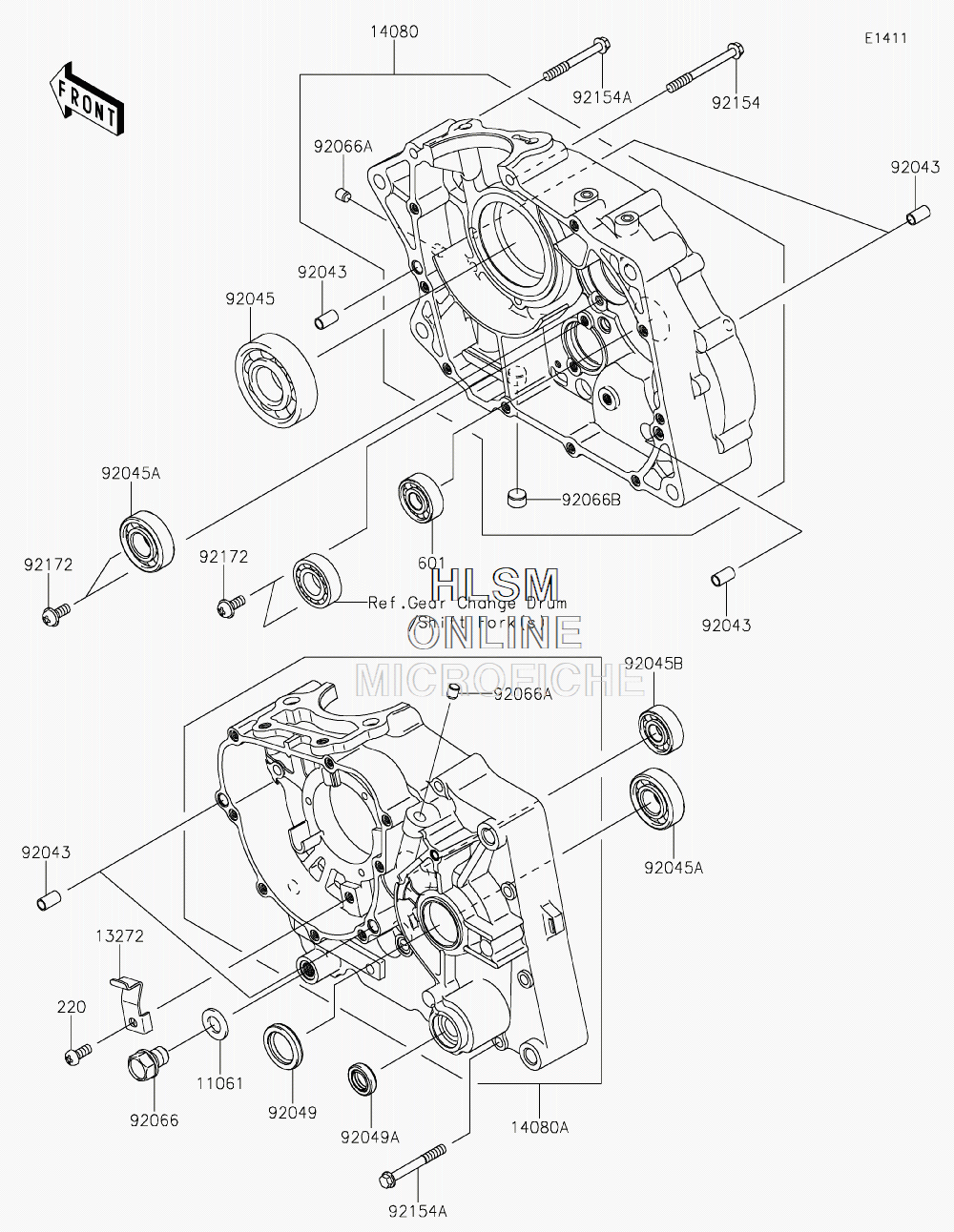

CRANKCASE для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0421 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1327213272-1384 PLATEPLATE
-
1408014080-0251 CRANKCASE, RIGHT HANDCRANKCASE, RIGHT HAND
-
14080A14080-0295 CRANKCASE, LEFT HANDCRANKCASE, LEFT HAND
-
220220AA0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
601601A6201 BEARING-BALLBEARING-BALL
-
9204392043-0099 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-0018 BEARING-BALLBEARING-BALL
-
92045A92045-0745 BEARING-BALL, #6203C2BEARING-BALL, #6203C2
-
92045B92045-1308 BEARING-BALL, 6201ZC3/5CBEARING-BALL, 6201ZC3/5C
-
9204992049-0011 SEAL-OILSEAL-OIL
-
92049A92049-1431 SEAL-OILSEAL-OIL
-
9206692066-0768 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92066A92066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066B92066-1110 PLUGPLUG
-
9215492154-1161 BOLT, 6X60BOLT, 6X60
-
92154A92154-1168 BOLT, 6X50BOLT, 6X50
-
9217292172-0850 SCREW, 6X14SCREW, 6X14
