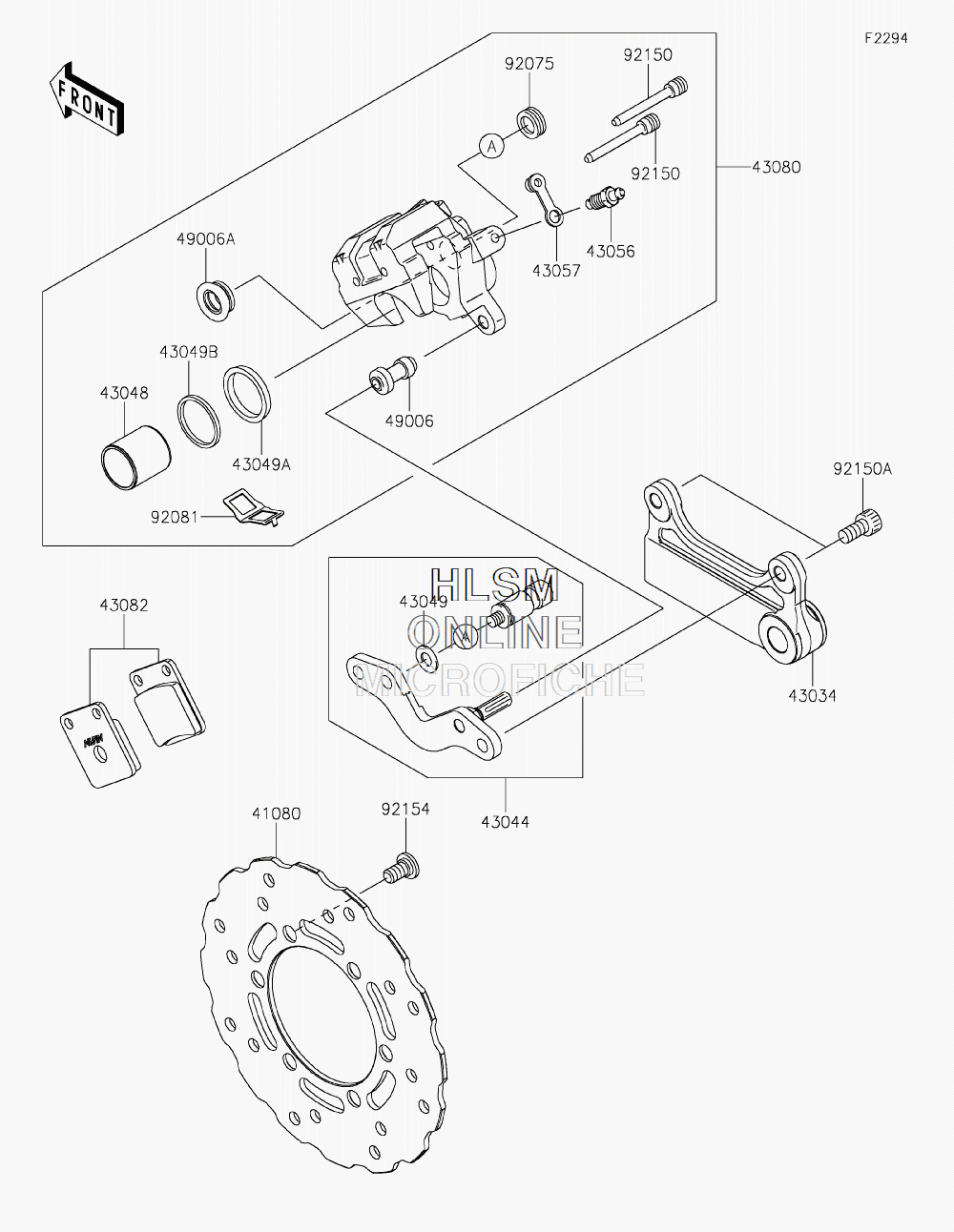

BRAKE - REAR для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
4108041080-0639 DISCDISC
-
4303443034-0106 HOLDER-BRAKE, REARHOLDER-BRAKE, REAR
-
4304443044-1076 HOLDER-COMP-CALIPER, REARHOLDER-COMP-CALIPER, REAR
-
4304843048-1090 PISTON-CALIPERPISTON-CALIPER
-
4304943049-1025 PACKINGPACKING
-
43049A43049-1060 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43049B43049-1061 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4308043080-0123 CALIPER-SUB-ASSY, REARCALIPER-SUB-ASSY, REAR
-
4308243082-0043 PAD-ASSY-BRAKEPAD-ASSY-BRAKE
-
4900649006-1088 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1089 BOOT, CALIPERBOOT, CALIPER
-
9207592075-1414 DAMPERDAMPER
-
9208192081-1502 SPRING, PADSPRING, PAD
-
9215092150-1144 BOLTBOLT
-
92150A92150-1840 BOLT, SOCKET, 8X16BOLT, SOCKET, 8X16
-
9215492154-1181 BOLT, SOCKET, 8X15BOLT, SOCKET, 8X15
