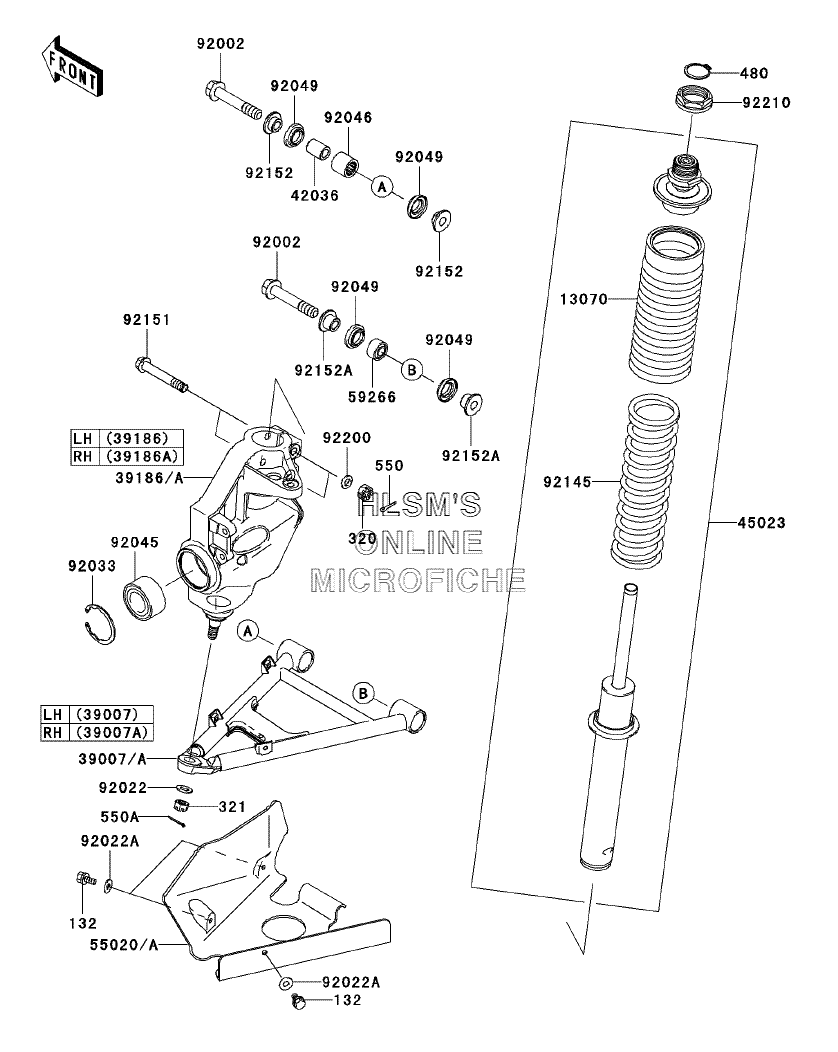

SUSPENSION для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска`
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
320320H1000 NUT-CASTLENUT-CASTLE
-
321321H1200 NUT-CASTLE, 12MMNUT-CASTLE, 12MM
-
480480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
1307013070-1383 GUIDE, STRUTGUIDE, STRUT
-
3900739007-0058 ARM-SUSPENSION (LEFT)ARM-SUSPENSION (LEFT)
-
39007A39007-0059 ARM-SUSPENSION (RIGHT)ARM-SUSPENSION (RIGHT)
-
3918639186-0041 KNUCKLE, FRONT (LEFT)KNUCKLE, FRONT (LEFT)
-
39186A39186-0042 KNUCKLE, FRONT (RIGHT)KNUCKLE, FRONT (RIGHT)
-
4203642036-1365 SLEEVE, 12X20X26.7SLEEVE, 12X20X26.7
-
4502345023-0004 STRUTSTRUT
-
5502055020-1768 GUARD, FRONT AXLE (LEFT)GUARD, FRONT AXLE (LEFT)
-
55020A55020-1769 GUARD, FRONT AXLE (RIGHT)GUARD, FRONT AXLE (RIGHT)
-
5926659266-1118 JOINT-BALLJOINT-BALL
-
9200292002-1861 BOLT, FLANGED, 12X67BOLT, FLANGED, 12X67
-
9202292022-1065 WASHER, 12.3X22X1.6WASHER, 12.3X22X1.6
-
92022A92022-1344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
9203392033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-1448 BEARING-BALL, 30BWD08ABEARING-BALL, 30BWD08A
-
9204692046-1290 BEARING-NEEDLE, TA202725ZEBEARING-NEEDLE, TA202725ZE
-
9204992049-1539 SEAL-OIL, MF020N3SEAL-OIL, MF020N3
-
9214592145-0009 SPRING, STRUT, K=1.1SPRING, STRUT, K=1.1
-
9215192151-1709 BOLT, FLANGED, 10X65BOLT, FLANGED, 10X65
-
9215292152-1295 COLLARCOLLAR
-
92152A92152-1296 COLLARCOLLAR
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
9221092210-1226 NUT, FLANGED, 35MMNUT, FLANGED, 35MM
