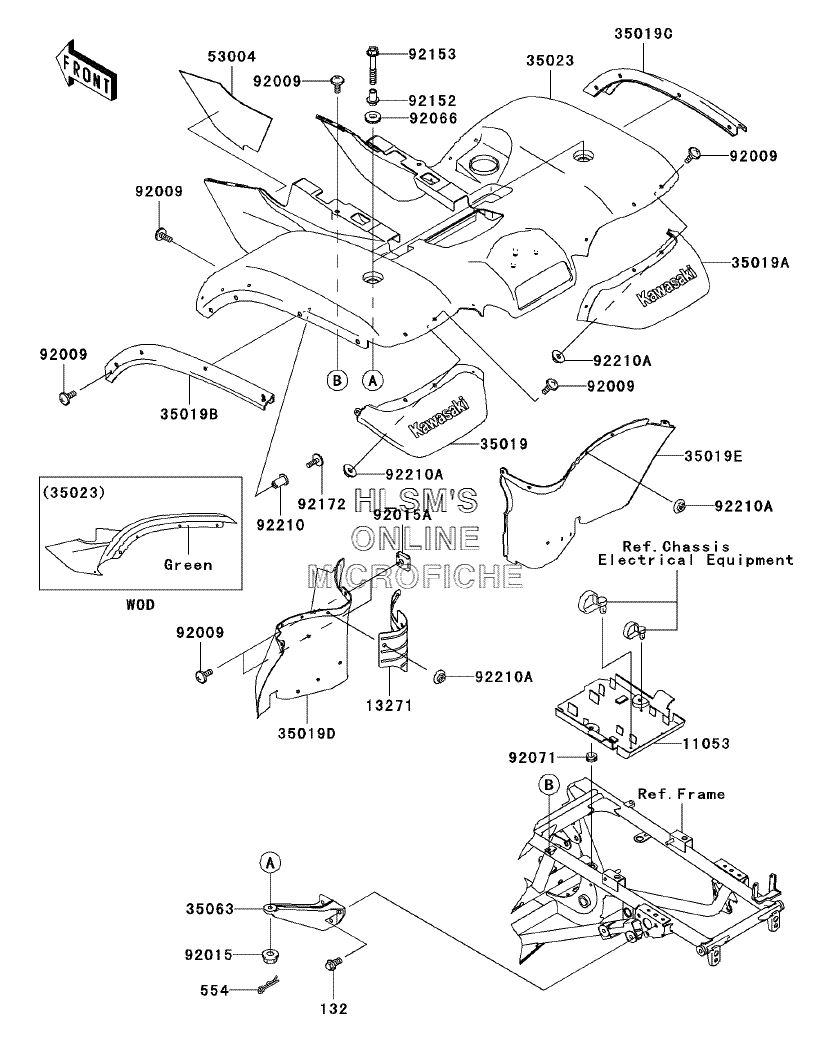

FENDER - REAR для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132J0818 BOLT-FLANGED-SMALL, 8X18BOLT-FLANGED-SMALL, 8X18
-
554554A0800 PIN-SNAP, 8MMPIN-SNAP, 8MM
-
1105311053-1308 BRACKET, ELECTRICBRACKET, ELECTRIC
-
1327113271-1718 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
3501935019-1371-6Z FLAP, REAR REAR (LEFT/F.BLACK)FLAP, REAR REAR (LEFT/F.BLACK)
-
35019A35019-1372-6Z FLAP, REAR REAR (RIGHT/F.BLACK)FLAP, REAR REAR (RIGHT/F.BLACK)
-
35019B35019-1373-6Z FLAP, REAR SIDE (LEFT/F.BLACK)FLAP, REAR SIDE (LEFT/F.BLACK)
-
35019C35019-1374-6Z FLAP, REAR SIDE (RIGHT/F.BLACK)FLAP, REAR SIDE (RIGHT/F.BLACK)
-
35019D35019-1393-6Z FLAP, REAR FRONT (LEFT/F.BLACK)FLAP, REAR FRONT (LEFT/F.BLACK)
-
35019E35019-1394-6Z FLAP, REAR FRONT (RIGHT/F.BLACK)FLAP, REAR FRONT (RIGHT/F.BLACK)
-
3502335023-1565-290 FENDER-REAR (L.GREEN)FENDER-REAR (L.GREEN)
-
3506335063-1100 STAY, REAR FENDERSTAY, REAR FENDER
-
5300453004-1170 MAT, REAR FENDERMAT, REAR FENDER
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9206692066-1438 PLUGPLUG
-
9207192071-1131 GROMMETGROMMET
-
9215292152-0098 COLLAR, L=38.5COLLAR, L=38.5
-
9215392153-0326 BOLT, FLANGED, 8X68BOLT, FLANGED, 8X68
-
9217292172-1063 SCREW, 5X18SCREW, 5X18
-
9221092210-0012 NUT, POP, 5MMNUT, POP, 5MM
-
92210A92210-1368 NUT, 6MMNUT, 6MM
