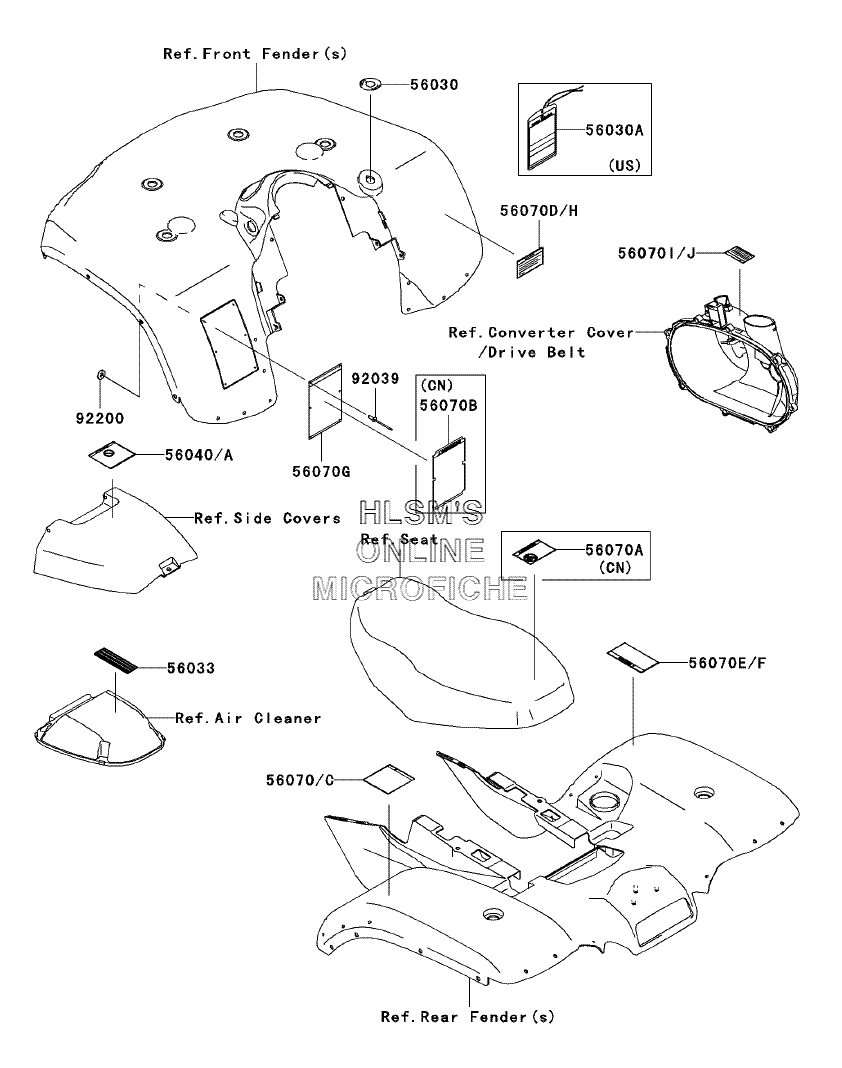

LABELS для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
5603056030-0014 LABEL, IGNITION SWITCHLABEL, IGNITION SWITCH
-
56030A56030-0047 LABEL, HANGTAG (USA ONLY)LABEL, HANGTAG (USA ONLY)
-
5603356033-1263 LABEL-MANUAL, MANUALLABEL-MANUAL, MANUAL
-
5604056040-1276 LABEL-WARNING, UNDER 16LABEL-WARNING, UNDER 16
-
56040A56040-1325 LABEL-WARNING, AGE (CANADA ONLY)LABEL-WARNING, AGE (CANADA ONLY)
-
5607056070-0014 LABEL-WARNING, TIRE AND MAX LOADLABEL-WARNING, TIRE AND MAX LOAD
-
56070A56070-0018 LABEL-WARNING, NO PASSENGER (CANADA ONLY)LABEL-WARNING, NO PASSENGER (CANADA ONLY)
-
56070B56070-0019 LABEL-WARNING, GENERAL (CANADA ONLY)LABEL-WARNING, GENERAL (CANADA ONLY)
-
56070C56070-0025 LABEL-WARNING, TIRE AND MAX LOAD (CANADA ONLY)LABEL-WARNING, TIRE AND MAX LOAD (CANADA ONLY)
-
56070D56070-0037 LABEL-WARNING, SHIFT LEVER(FREN (CANADA ONLY)LABEL-WARNING, SHIFT LEVER(FREN (CANADA ONLY)
-
56070E56070-0038 LABEL-WARNING, DRIVE BELTLABEL-WARNING, DRIVE BELT
-
56070F56070-0039 LABEL-WARNING, DRIVE BELT(FRENC (CANADA ONLY)LABEL-WARNING, DRIVE BELT(FRENC (CANADA ONLY)
-
56070G56070-1151 LABEL-WARNING, SERIOUS INJURYLABEL-WARNING, SERIOUS INJURY
-
56070H56070-1170 LABEL-WARNING, SHIFT LEVERLABEL-WARNING, SHIFT LEVER
-
56070I56070-1269 LABEL-WARNING, CVT COVERLABEL-WARNING, CVT COVER
-
56070J56070-1271 LABEL-WARNING, CVT COVER(FRENCH (CANADA ONLY)LABEL-WARNING, CVT COVER(FRENCH (CANADA ONLY)
-
9203992039-3763 RIVET, 3.2X8RIVET, 3.2X8
-
9220092200-1251 WASHER, 3.5X8X1WASHER, 3.5X8X1
