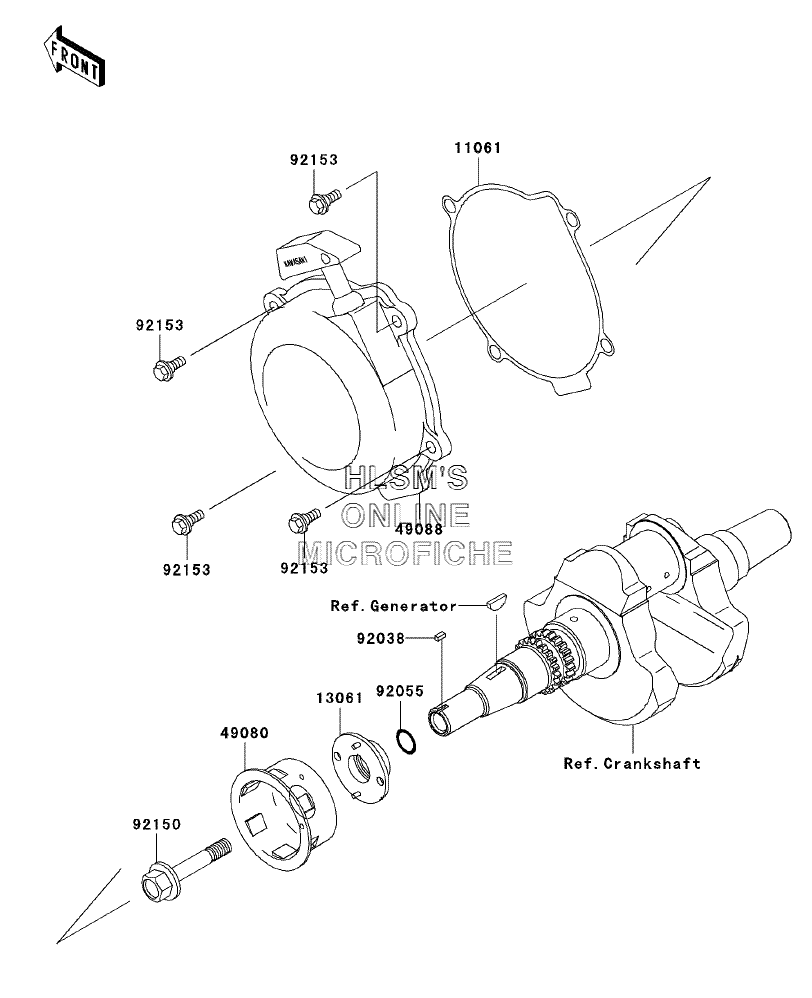

STARTER - RECOIL для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-1153 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1306113061-1873 BOSSBOSS
-
4908049080-1061 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-1058 STARTER-RECOILSTARTER-RECOIL
-
9203892038-1051 KEY, SUNKKEY, SUNK
-
9205592055-1215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9215092150-1987 BOLT, 12X65BOLT, 12X65
-
9215392153-7007 BOLT, FLANGED, M6X5X11BOLT, FLANGED, M6X5X11
