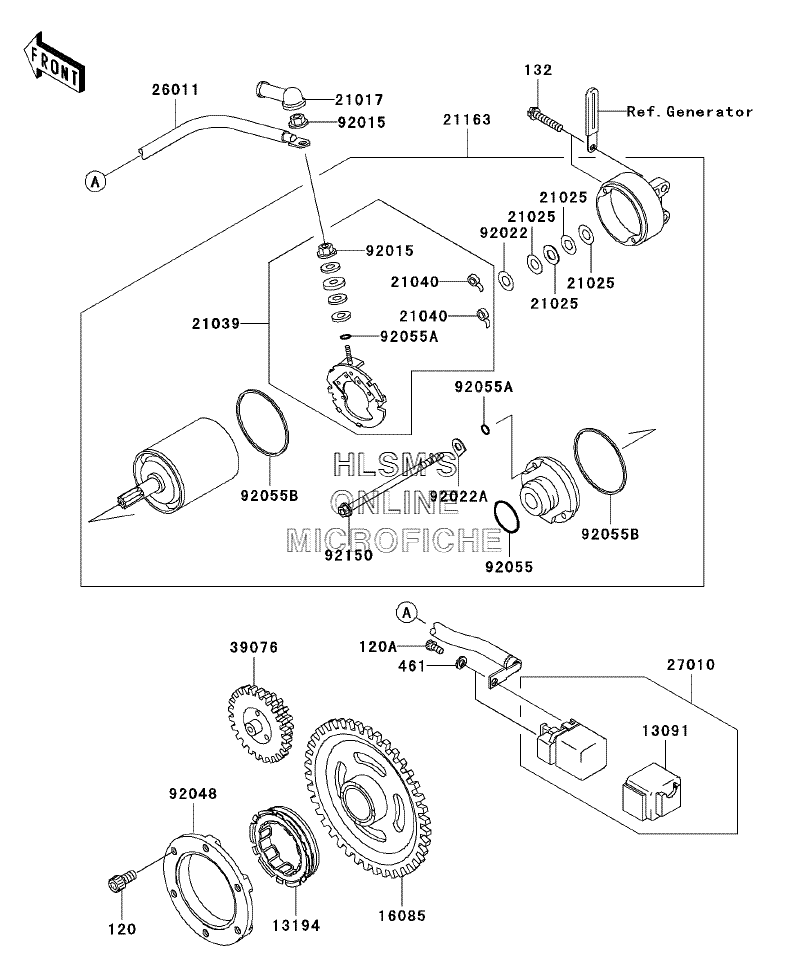

STARTER MOTOR для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
120120P0816 BOLT-SOCKET, 8X16BOLT-SOCKET, 8X16
-
120A120S0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
132132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
461461K0500 WASHER-SPRING, 5MM (BLACK)WASHER-SPRING, 5MM (BLACK)
-
1309113091-1992 HOLDERHOLDER
-
1319413194-1094 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1608516085-1238 GEAR, STARTERGEAR, STARTER
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1063 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-1320 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-1814 WIRE-LEADWIRE-LEAD
-
2701027010-1376 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0005 LIMITER, STARTERLIMITER, STARTER
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022A92022-1458 WASHER, LOCK, T=2.0WASHER, LOCK, T=2.0
-
9204892048-0002 RACE, ONE WAY CLUTCHRACE, ONE WAY CLUTCH
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055B92055-1381 RING-O, STARTER MOTORRING-O, STARTER MOTOR
-
9215092150-1243 BOLTBOLT
