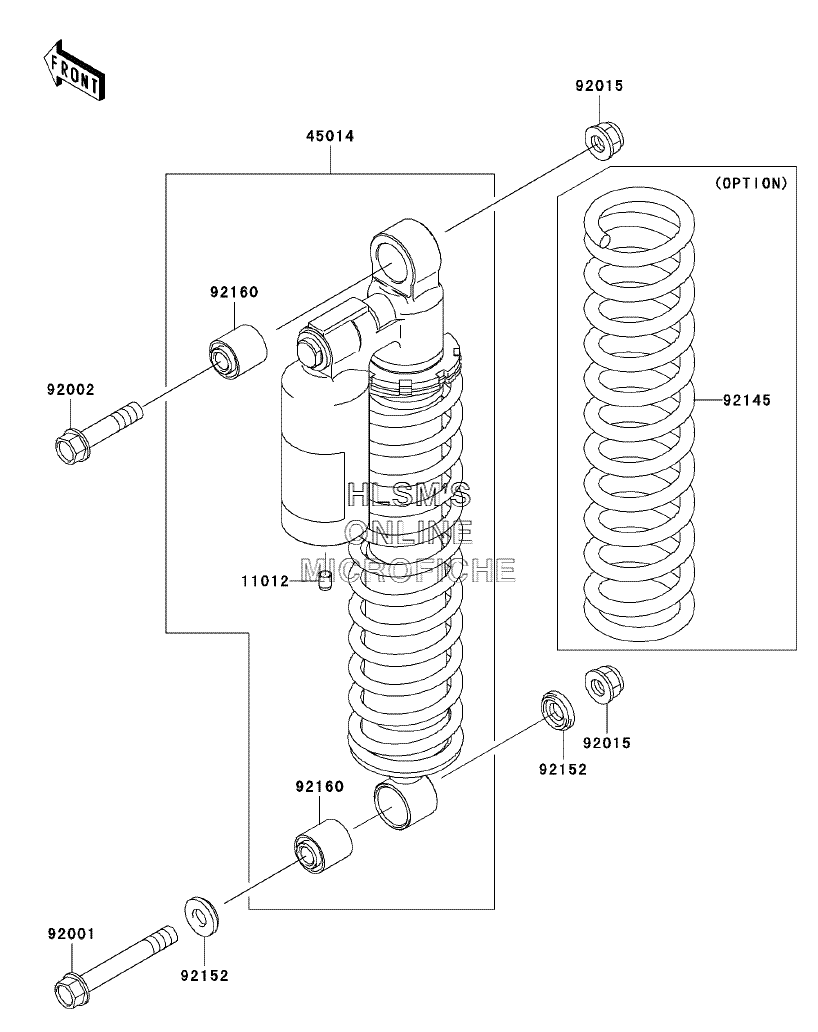

SUSPENSION - SHOCK ABSORBER для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
1101211012-1283 CAPCAP
-
4501445014-0028 SHOCKABSORBERSHOCKABSORBER
-
9200192001-1693 BOLT, FLANGED, 12X88BOLT, FLANGED, 12X88
-
9200292002-1840 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
9201592015-1617 NUT, FLANGED, LOCK, 12MMNUT, FLANGED, LOCK, 12MM
-
9214592145-0231 SPRING, REAR SHOCK, K=24.5N/MM (OPT)SPRING, REAR SHOCK, K=24.5N/MM (OPT)
-
9215292152-1293 COLLARCOLLAR
-
9216092160-1777 DAMPER, SHOCK ABSORBERDAMPER, SHOCK ABSORBER
