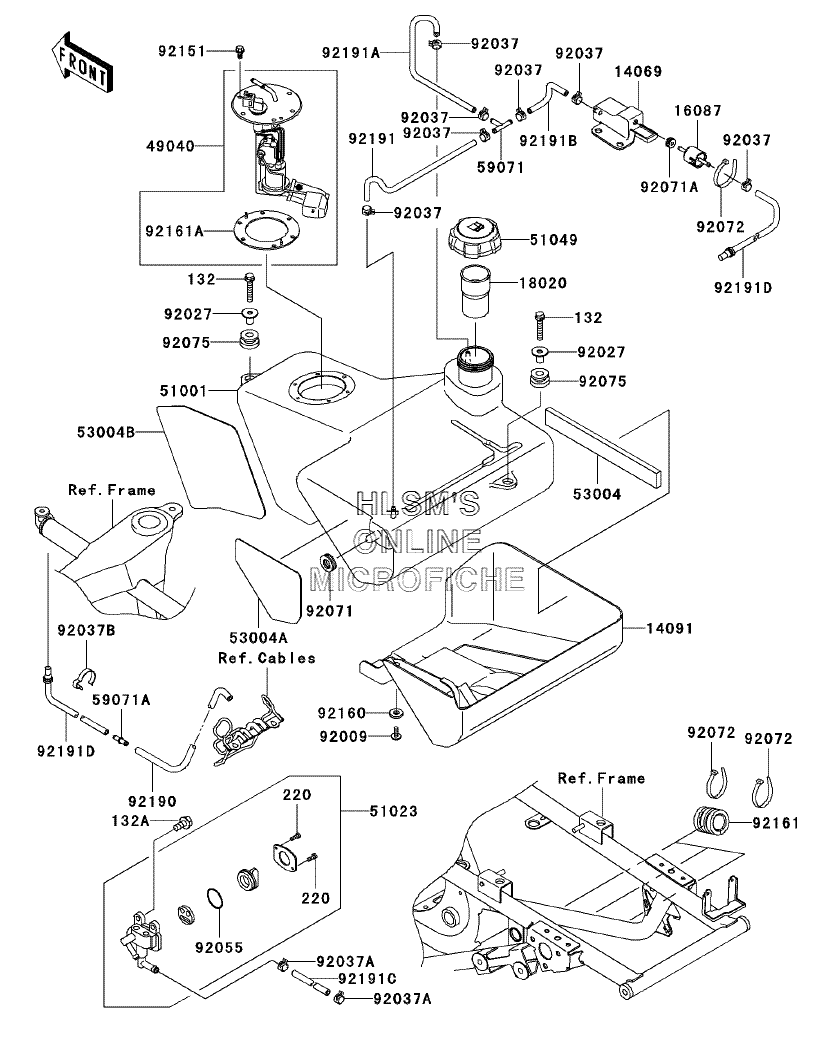

FUEL TANK для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132G0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132A132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
220220B0308 SCREW-PAN-CROS, 3X8SCREW-PAN-CROS, 3X8
-
1406914069-1069 BREATHER, TANKBREATHER, TANK
-
1409114091-1404 COVER, FUEL TANKCOVER, FUEL TANK
-
1608716087-0003 VALVE-CHECKVALVE-CHECK
-
1802018020-1278 BAFFLE, FUEL TANK CAPBAFFLE, FUEL TANK CAP
-
4904049040-0006 PUMP-FUELPUMP-FUEL
-
5100151001-1638 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-0002 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104951049-1128 CAP-TANK, FUELCAP-TANK, FUEL
-
5300453004-1161 MAT, FUEL TANK COVERMAT, FUEL TANK COVER
-
53004A53004-1164 MAT, FUEL TANKMAT, FUEL TANK
-
53004B53004-1165 MAT, FUEL TANKMAT, FUEL TANK
-
5907159071-3705 JOINTJOINT
-
59071A59071-3717 JOINTJOINT
-
9200992009-1480 SCREW, 6X12SCREW, 6X12
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1552 CLAMP, HOSECLAMP, HOSE
-
9205592055-0017 RING-ORING-O
-
9207192071-1249 GROMMET, AIR SUCTION VALVEGROMMET, AIR SUCTION VALVE
-
92071A92071-1266 GROMMETGROMMET
-
9207292072-1239 BAND, L=188BAND, L=188
-
9207592075-1787 DAMPERDAMPER
-
9215192151-1754 BOLT, FLANGED, 5X11.5BOLT, FLANGED, 5X11.5
-
9216092160-1017 DAMPERDAMPER
-
9216192161-1111 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92161A92161-1272 DAMPER, FUEL PUMPDAMPER, FUEL PUMP
-
9219092190-1256 TUBE, 5X9X530TUBE, 5X9X530
-
9219192191-1639 TUBE, TANK-FRONTTUBE, TANK-FRONT
-
92191A92191-1640 TUBE, TANK-REARTUBE, TANK-REAR
-
92191B92191-1641 TUBE, 5X9X160TUBE, 5X9X160
-
92191C92191-1665 TUBE, 5.3X10.5X425TUBE, 5.3X10.5X425
-
92191D92191-1666 TUBE, TANK BREATHERTUBE, TANK BREATHER
