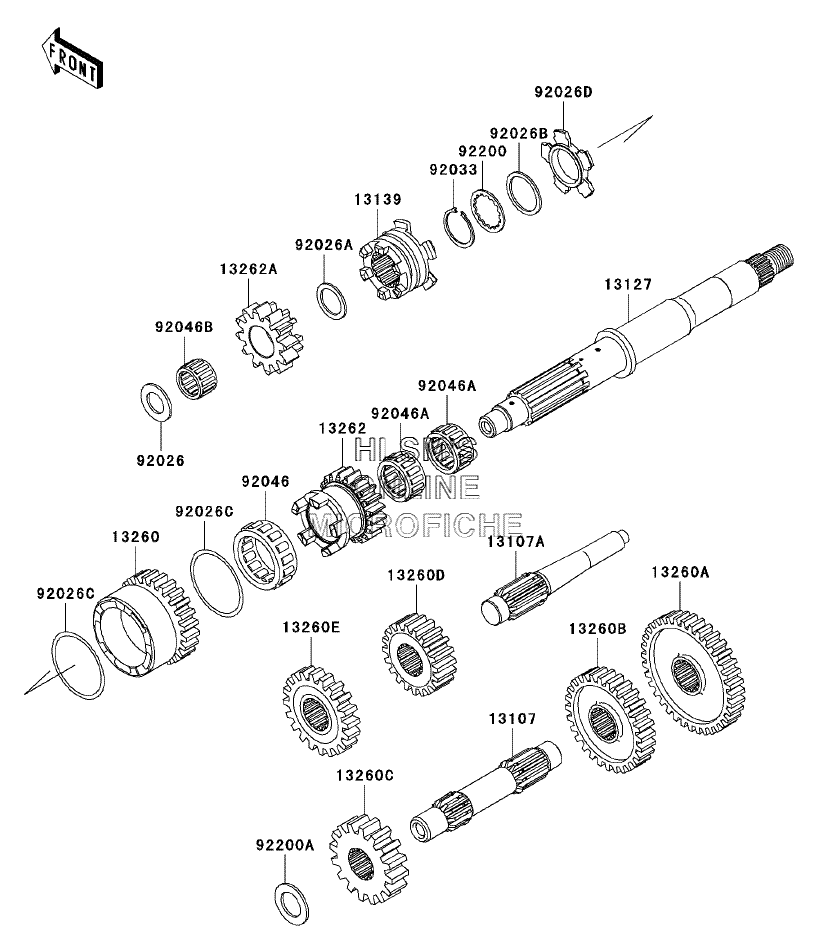

TRANSMISSION для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
1310713107-0113 SHAFT, COUNTERSHAFT, COUNTER
-
13107A13107-1437 SHAFT, REVERSE, IDLESHAFT, REVERSE, IDLE
-
1312713127-1282 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1313913139-0003 SHIFTERSHIFTER
-
1326013260-1867 GEAR, INPUT HIGH (26 TEETH)GEAR, INPUT HIGH (26 TEETH)
-
13260A13260-1869 GEAR, DRIVEN LOW (36 TEETH)GEAR, DRIVEN LOW (36 TEETH)
-
13260B13260-1870 GEAR, DRIVEN HIGH (30 TEETH)GEAR, DRIVEN HIGH (30 TEETH)
-
13260C13260-1871 GEAR, OUTPUT DRIVE (18 TEETH)GEAR, OUTPUT DRIVE (18 TEETH)
-
13260D13260-1872 GEAR, OUTPUT REVERSE (16 TEETH)GEAR, OUTPUT REVERSE (16 TEETH)
-
13260E13260-1873 GEAR, DRIVEN REVERSE (16 TEETH)GEAR, DRIVEN REVERSE (16 TEETH)
-
1326213262-0234 GEAR, INPUT LOW (20 TEETH)GEAR, INPUT LOW (20 TEETH)
-
13262A13262-0235 GEAR, INPUT REVERSE (12 TEETH)GEAR, INPUT REVERSE (12 TEETH)
-
9202692026-1415 SPACER, 17.3X30X2.0SPACER, 17.3X30X2.0
-
92026A92026-1568 SPACER, 21.2X29X1.6SPACER, 21.2X29X1.6
-
92026B92026-1587 SPACER, 28.2X34.5X1.6SPACER, 28.2X34.5X1.6
-
92026C92026-1599 SPACER, 48.2X54.3X1.0SPACER, 48.2X54.3X1.0
-
92026D92026-1600 SPACER, HI & LOWSPACER, HI & LOW
-
9203392033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9204692046-1276 BEARING-NEEDLE, HIGH GEARBEARING-NEEDLE, HIGH GEAR
-
92046A92046-1278 BEARING-NEEDLE, FWF-283317BEARING-NEEDLE, FWF-283317
-
92046B92046-1279 BEARING-NEEDLE, REVERSE GEARBEARING-NEEDLE, REVERSE GEAR
-
9220092200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
-
92200A92200-1351 WASHER, 20.3X33X2.0WASHER, 20.3X33X2.0
