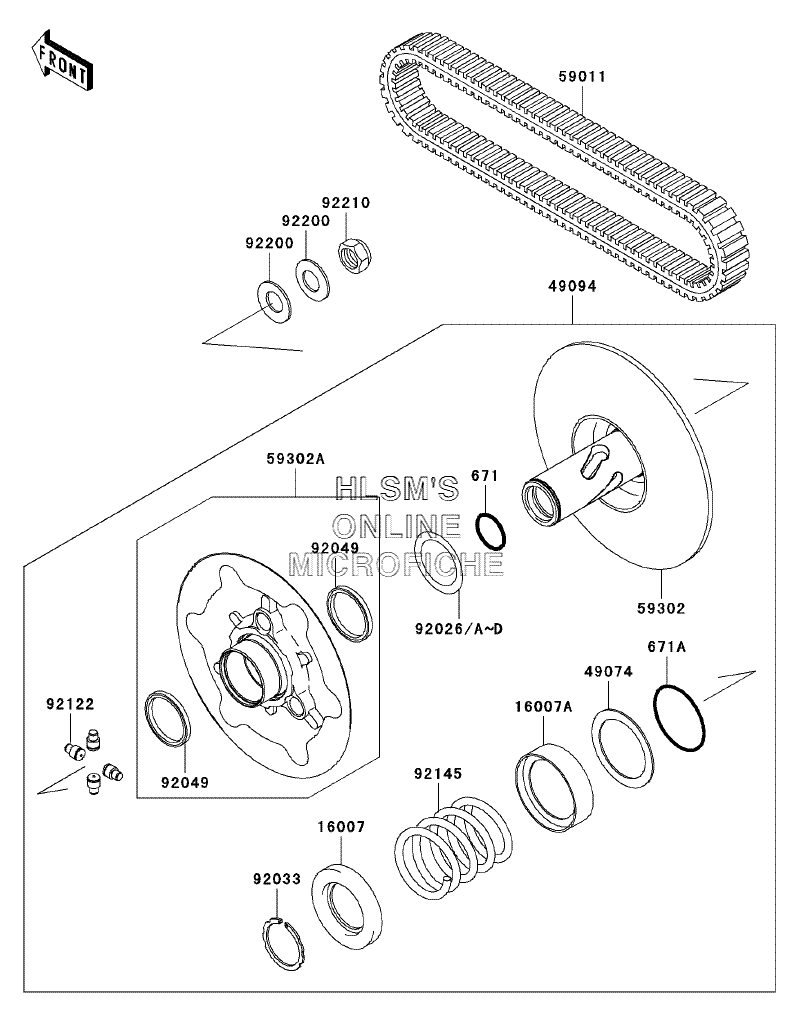

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
671671D2530 O RINGO RING
-
671A671D2550 O RINGO RING
-
1600716007-1203 SEAT-SPRINGSEAT-SPRING
-
16007A16007-1221 SEAT-SPRING, SHEAVE MOVABLESEAT-SPRING, SHEAVE MOVABLE
-
4907449074-1055 PLATE-THRUSTPLATE-THRUST
-
4909449094-0005 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0003 BELTBELT
-
5930259302-0001 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
59302A59302-0002 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
9202692026-0034 SPACER, T=0.30SPACER, T=0.30
-
92026A92026-1565 SPACER, T=1.00SPACER, T=1.00
-
92026B92026-1569 SPACER, T=0.60SPACER, T=0.60
-
92026C92026-1570 SPACER, T=1.40SPACER, T=1.40
-
92026D92026-1617 SPACER, T=0.80SPACER, T=0.80
-
9203392033-1317 RING-SNAPRING-SNAP
-
9204992049-1528 SEAL-OILSEAL-OIL
-
9212292122-1209 ROLLERROLLER
-
9214592145-1462 SPRING, YELLOWSPRING, YELLOW
-
9220092200-1505 WASHERWASHER
-
9221092210-1367 NUT, 18MMNUT, 18MM
