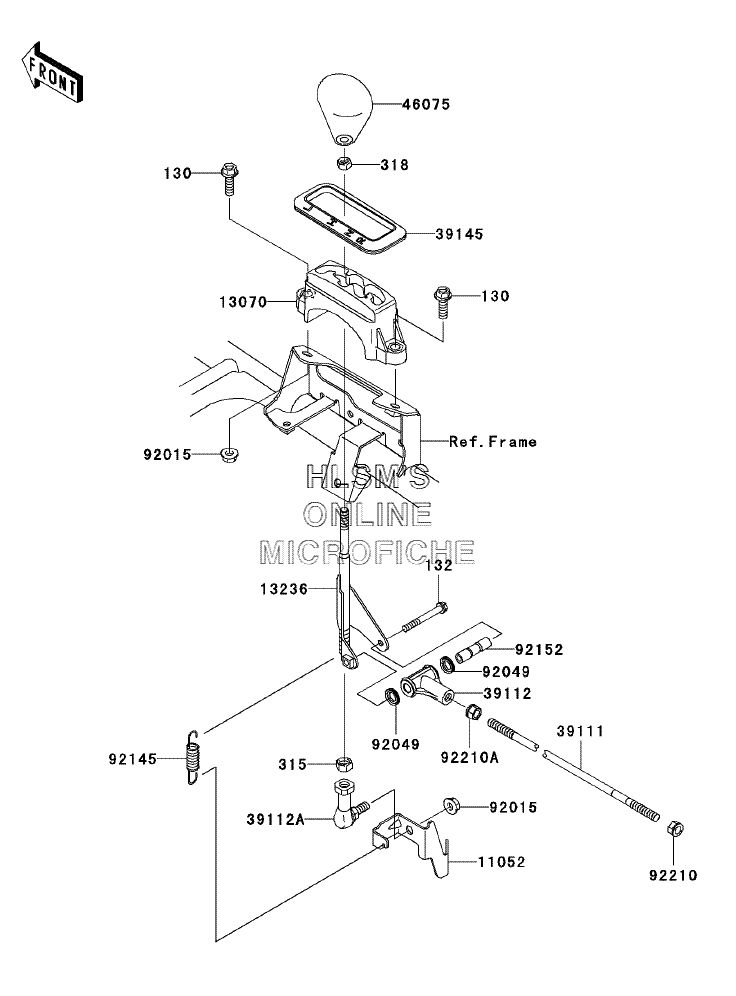

CONTROL для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130Z0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
132132J0650 BOLT-FLANGED-SMALL, 6X50BOLT-FLANGED-SMALL, 6X50
-
315315B1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
318318G0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
1105211052-1441 BRACKET, CONTROLBRACKET, CONTROL
-
1307013070-1396 GUIDE, CONTROL SHAFTGUIDE, CONTROL SHAFT
-
1323613236-1384 LEVER-COMP, SHIFTLEVER-COMP, SHIFT
-
3911139111-1174 ROD-TIE, SHIFTROD-TIE, SHIFT
-
3911239112-1079 RODEND-TIERODEND-TIE
-
39112A39112-1084 RODEND-TIE, CONTROL PIVOTRODEND-TIE, CONTROL PIVOT
-
3914539145-1121 TRIM-SEAL, CONTROL GUIDETRIM-SEAL, CONTROL GUIDE
-
4607546075-1185 GRIP, SHIFTGRIP, SHIFT
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9204992049-1458 SEAL-OILSEAL-OIL
-
9214592145-1441 SPRING, CONTROLSPRING, CONTROL
-
9215292152-1222 COLLAR, RODEND-TIECOLLAR, RODEND-TIE
-
9221092210-1242 NUT, 8MM (RIGHT)NUT, 8MM (RIGHT)
-
92210A92210-1284 NUT, 8MM (LEFT)NUT, 8MM (LEFT)
