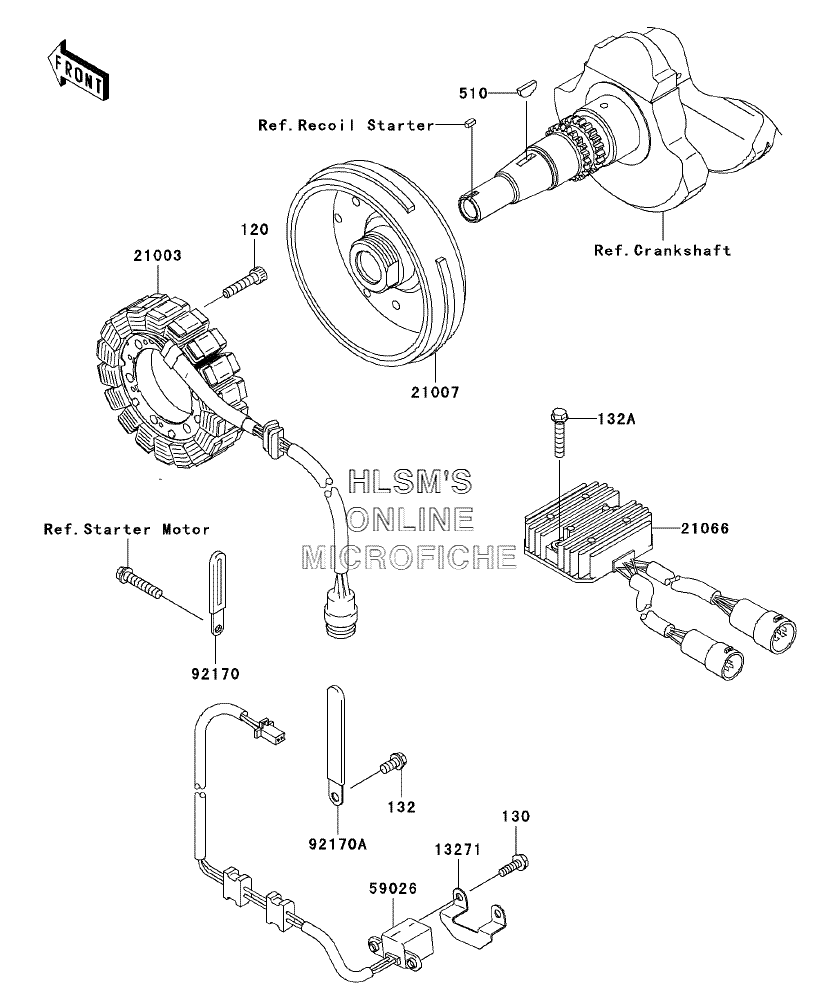

GENERATOR для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
120120P0628 BOLT-SOCKET, 6X28BOLT-SOCKET, 6X28
-
130130G0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
132132Y0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-1369 PLATEPLATE
-
2100321003-1359 STATORSTATOR
-
2100721007-1367 ROTORROTOR
-
2106621066-1112 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
5902659026-1159 COIL-PULSINGCOIL-PULSING
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1925 CLAMPCLAMP
