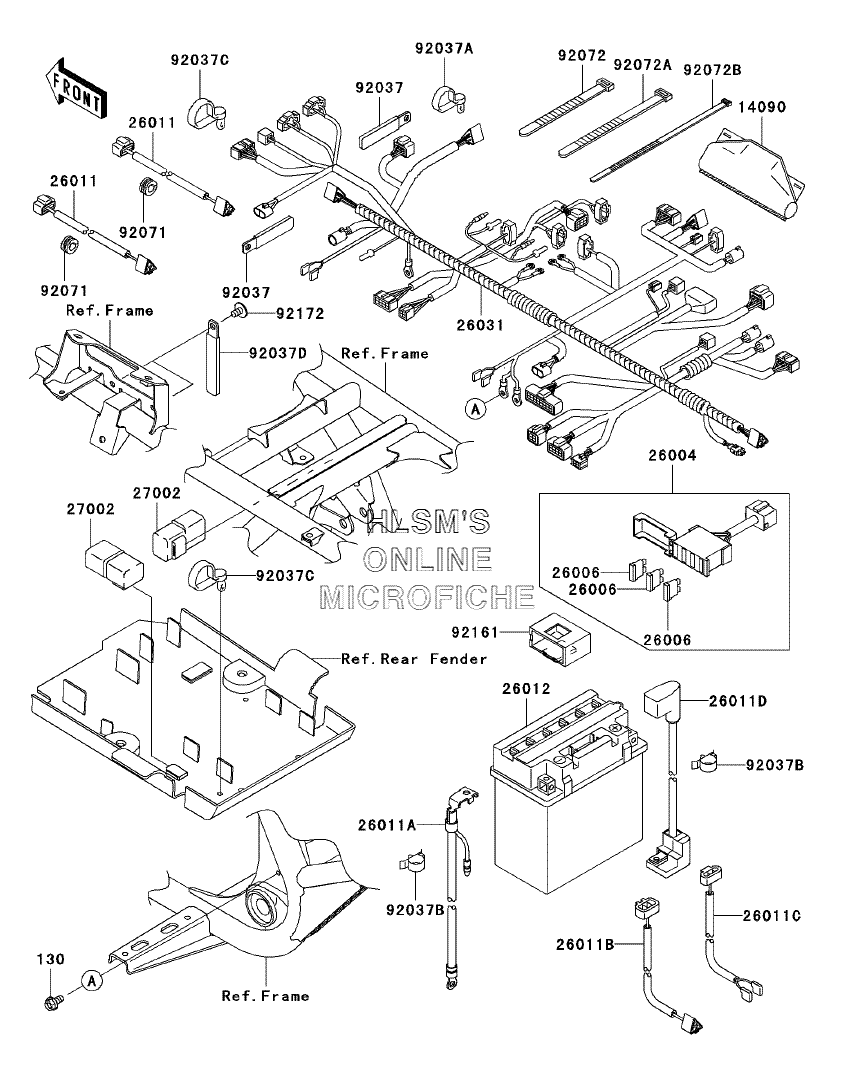

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130B0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
2600426004-0010 FUSE-ASSYFUSE-ASSY
-
2600626006-1007 FUSE, 10A-RFUSE, 10A-R
-
2601126011-1741 WIRE-LEAD, HEAD LAMPWIRE-LEAD, HEAD LAMP
-
26011A26011-1752 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
26011B26011-1801 WIRE-LEAD, SPEED SENSORWIRE-LEAD, SPEED SENSOR
-
26011C26011-1802 WIRE-LEAD, FRONT BRAKEWIRE-LEAD, FRONT BRAKE
-
26011D26011-1827 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
2601226012-1414 BATTERY, MF, KMX14-BS, 12V 12AHBATTERY, MF, KMX14-BS, 12V 12AH
-
2603126031-0216 HARNESS, MAINHARNESS, MAIN
-
2700227002-1086 RELAY-ASSYRELAY-ASSY
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1878 CLAMP, HARNESSCLAMP, HARNESS
-
92037C92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
92037D92037-1993 CLAMPCLAMP
-
92037D92037-1993 CLAMPCLAMP
-
9207192071-1128 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
92072B92072-1239 BAND, L=188BAND, L=188
-
9216192161-1136 DAMPER, FUSEDAMPER, FUSE
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
