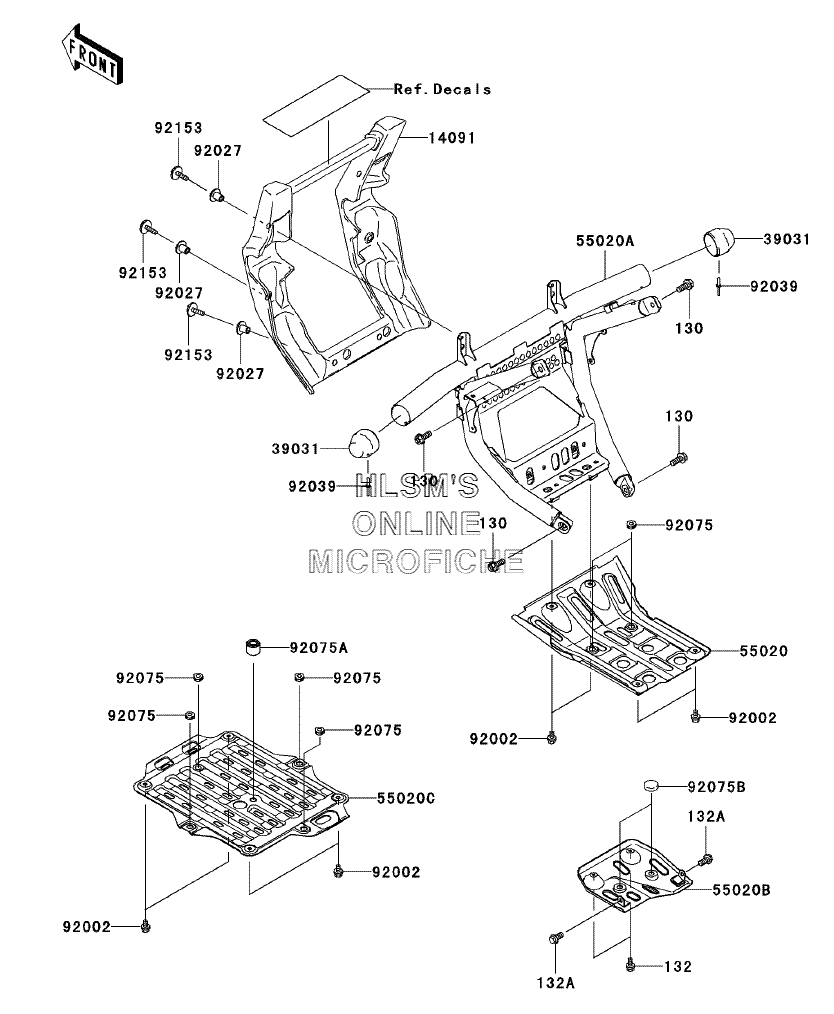

GUARD(S) для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130T0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
132132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132J0816 BOLT-FLANGED-SMALL, 8X16BOLT-FLANGED-SMALL, 8X16
-
1409114091-0123-6Z COVER, FRONT GUARD (F.BLACK)COVER, FRONT GUARD (F.BLACK)
-
3903139031-0001 CAP-END, GUARD PIPECAP-END, GUARD PIPE
-
5502055020-0001 GUARD, FRONT SKIDGUARD, FRONT SKID
-
55020A55020-0015-379 GUARD, FRONT (M.GRAYSTONE)GUARD, FRONT (M.GRAYSTONE)
-
55020B55020-1756 GUARD, SWING ARMGUARD, SWING ARM
-
55020C55020-1808 GUARD, ENGINE, UNDERGUARD, ENGINE, UNDER
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
9202792027-1920 COLLAR, L=14.1COLLAR, L=14.1
-
9203992039-1150 RIVETRIVET
-
9207592075-051 DAMPERDAMPER
-
92075A92075-1002 DAMPERDAMPER
-
92075B92075-157 DAMPERDAMPER
-
9215392153-0665 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
