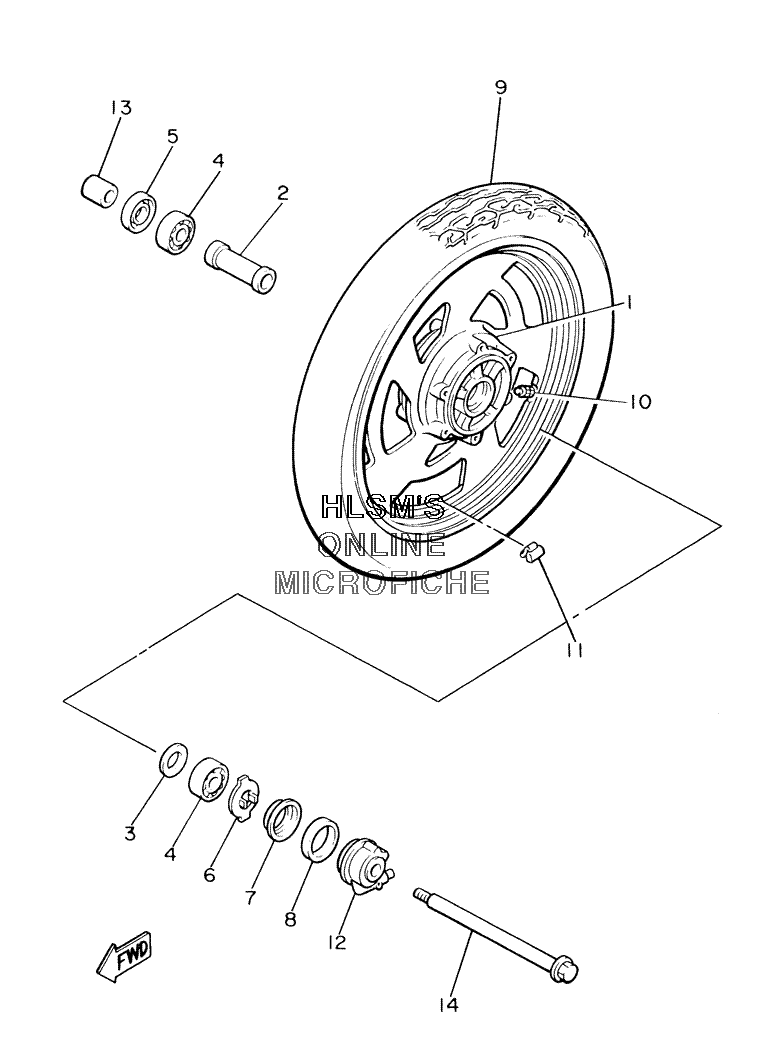

WHEEL - FRONT для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
15GK-25168-00-33 CAST WHEEL, FRONT (BLACK)CAST WHEEL, FRONT (BLACK)
-
290560-17322-00 SPACERSPACER
-
3148-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
493306-30317-00 BEARINGBEARING
-
593102-28022-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
6341-25149-00-00 CLUTCH, METERCLUTCH, METER
-
7341-25846-00-00 RETAINER, CLUTCHRETAINER, CLUTCH
-
893105-45017-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
994111-1805F-00 TIRE (110/90-18 M/C 61V G525) (BRIDGESTONE)TIRE (110/90-18 M/C 61V G525) (BRIDGESTONE)
-
994111-1805D-00 TIRE (110/90-18 M/C 61V F20) (DUNLOP)TIRE (110/90-18 M/C 61V F20) (DUNLOP)
-
1093900-00025-00 VALVE, RIMVALVE, RIM
-
115MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
115MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
115MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
121FK-25190-02-00 GEAR UNIT ASSY.GEAR UNIT ASSY.
-
1390387-173R6-00 COLLARCOLLAR
-
141FK-25181-00-00 AXLE, WHEELAXLE, WHEEL
