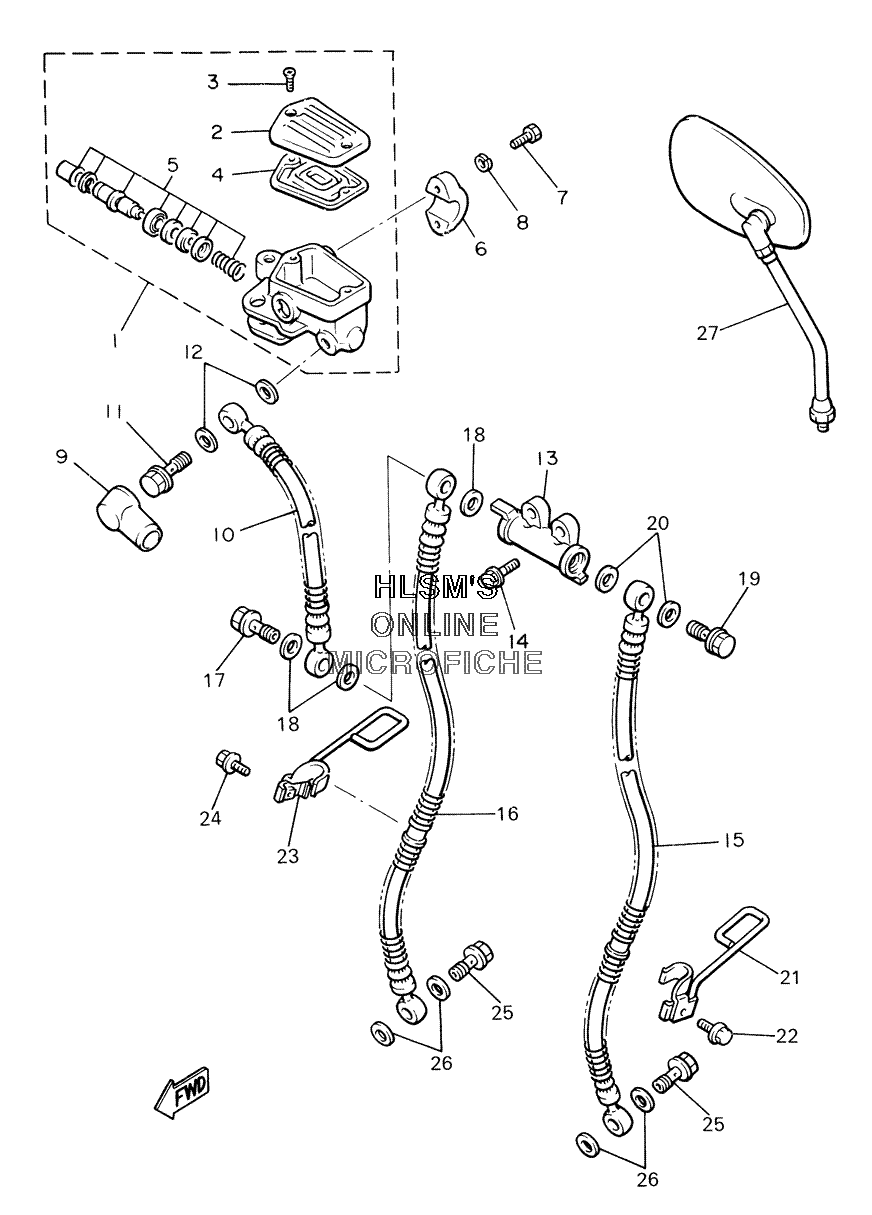

BRAKE - FRONT MASTER CYLINDER W/ MIRROR для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
13HE-2583T-01-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
23HE-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
336Y-2589H-00-00 ...SCREW...SCREW
-
436Y-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
536Y-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
636Y-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
790110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
94L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
101FK-25872-03-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1190401-10159-00 BOLT, UNIONBOLT, UNION
-
1290201-10118-00 WASHER, PLATEWASHER, PLATE
-
1342H-25885-01-00 JOINTJOINT
-
1491317-06020-00 BOLTBOLT
-
153LR-25873-02-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
163LR-25874-02-00 HOSE, BRAKEHOSE, BRAKE
-
1790401-10160-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
-
1990401-10159-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2155R-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2295024-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2355R-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2495024-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2590401-10159-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
271AA-26290-02-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
