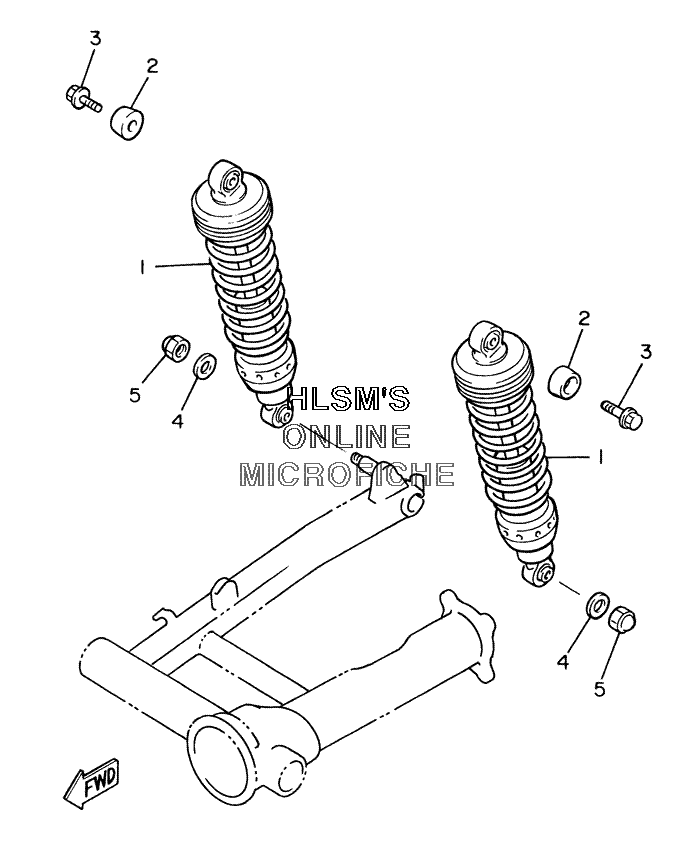

SUSPENSION - REAR SHOCK ABSORBER для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
13JP-22210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
242X-22243-00-00 WASHER 1WASHER 1
-
395024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490201-100A1-00 WASHER, PLATEWASHER, PLATE
-
590176-10073-00 NUT, CROWNNUT, CROWN
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER W/ MIRROR
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CLUTCH - MASTER CYLINDER W/ MIRROR
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- PICKUP COIL GOVERNOR
- RADIATOR
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- • SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
