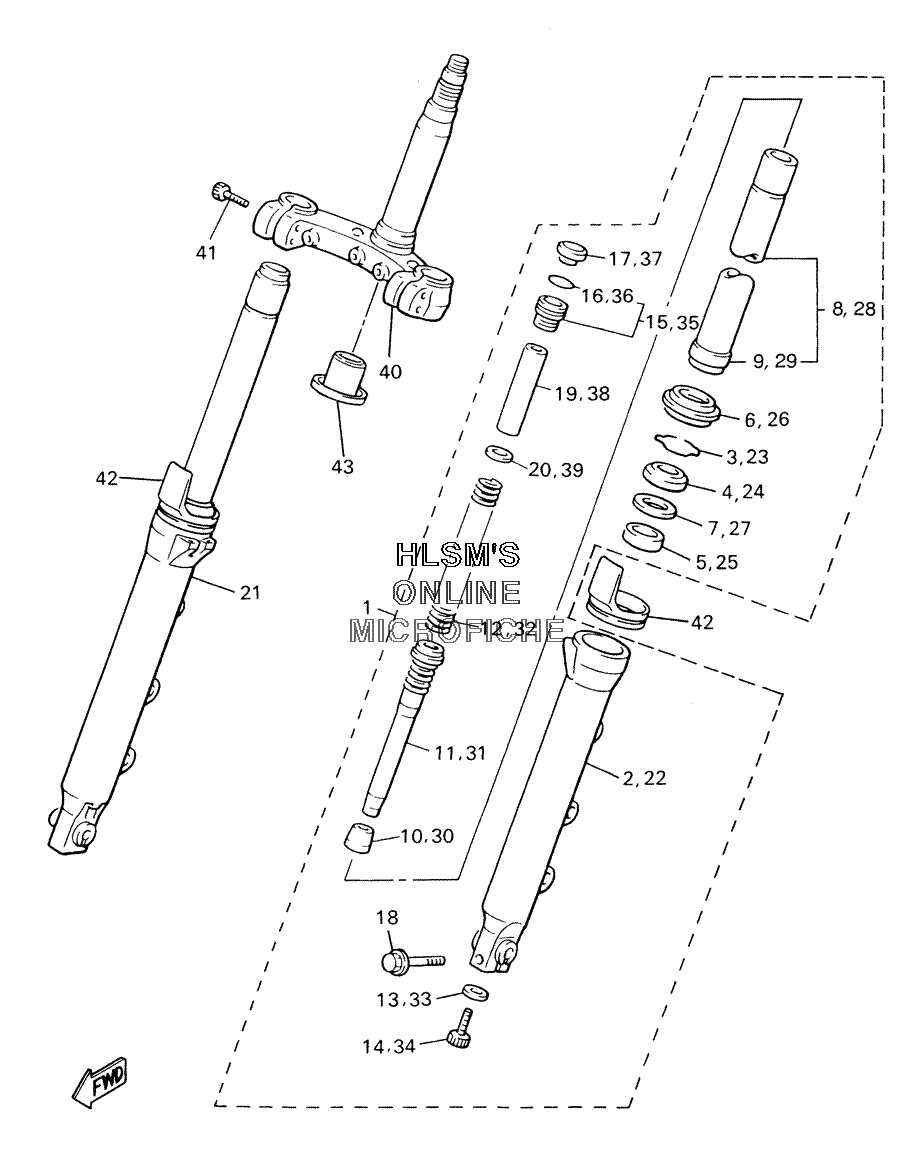

SUSPENSION - FRONT FORK для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
15GK-23102-00-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
25GK-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
34V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
44PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
55EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
64PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
74V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
85GK-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
95EA-23171-30-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
104YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
115GK-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
125GK-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
13509-23158-L0-00 ...GASKET...GASKET
-
14278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
153LR-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
164V4-23188-L0-00 ......O-RING......O-RING
-
173LR-23168-00-00 ...CAP, FRONT FORK...CAP, FRONT FORK
-
1895824-08045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
193YF-23118-00-00 ...SPACER...SPACER
-
203LR-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
215GK-23103-00-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
225GK-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
234V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
244PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
255EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
264PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
274V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
285GK-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
295EA-23171-30-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
304YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
315GK-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
325GK-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
33509-23158-L0-00 ...GASKET...GASKET
-
34278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
353LR-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
364V4-23188-L0-00 ......O-RING......O-RING
-
373LR-23168-00-00 ...CAP, FRONT FORK...CAP, FRONT FORK
-
383YF-23118-00-00 ...SPACER...SPACER
-
393LR-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
403LR-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4191314-08032-00 BOLTBOLT
-
424PU-2331G-00-00 COVERCOVER
-
434KM-23123-01-00 COVER, LOWER 1COVER, LOWER 1
