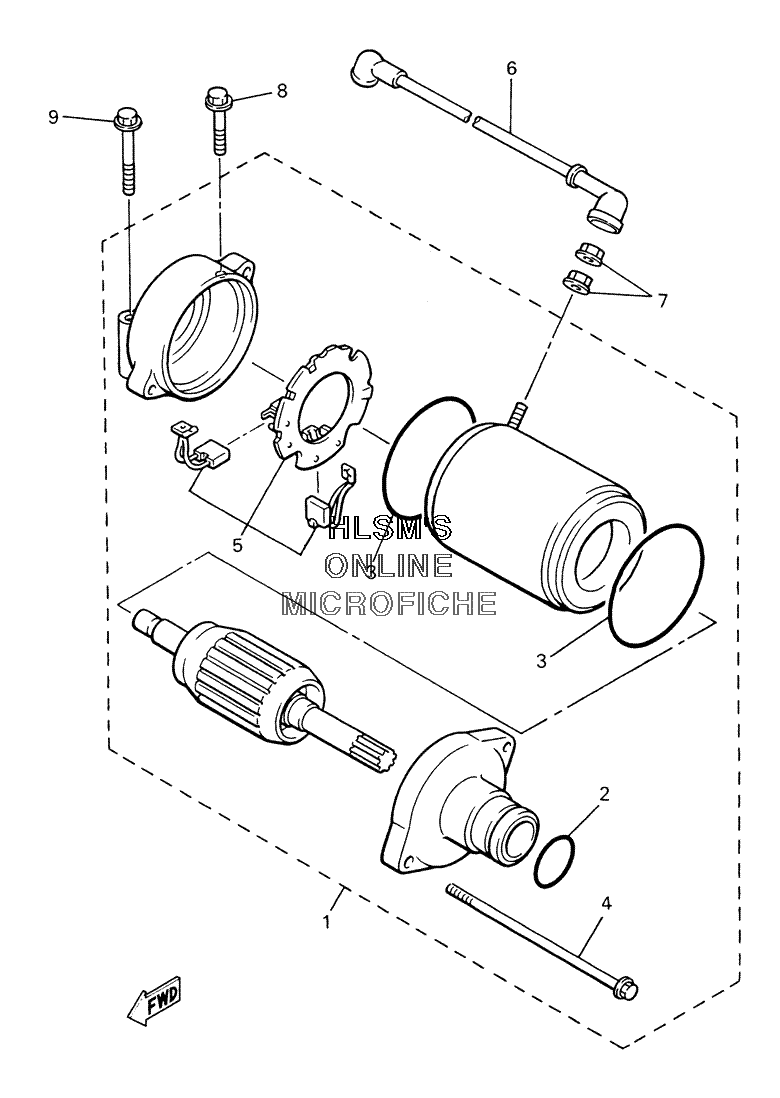

STARTING MOTOR для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
11FK-81890-00-00 MOTOR ASSY.MOTOR ASSY.
-
21FK-81847-00-00 ...O-RING...O-RING
-
311H-81844-00-00 ...GASKET...GASKET
-
41FK-81826-10-00 ...BOLT...BOLT
-
53AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
61FK-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
74XV-8182A-00-00 NUTNUT
-
895827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
995827-06055-00 BOLT, FLANGEBOLT, FLANGE
