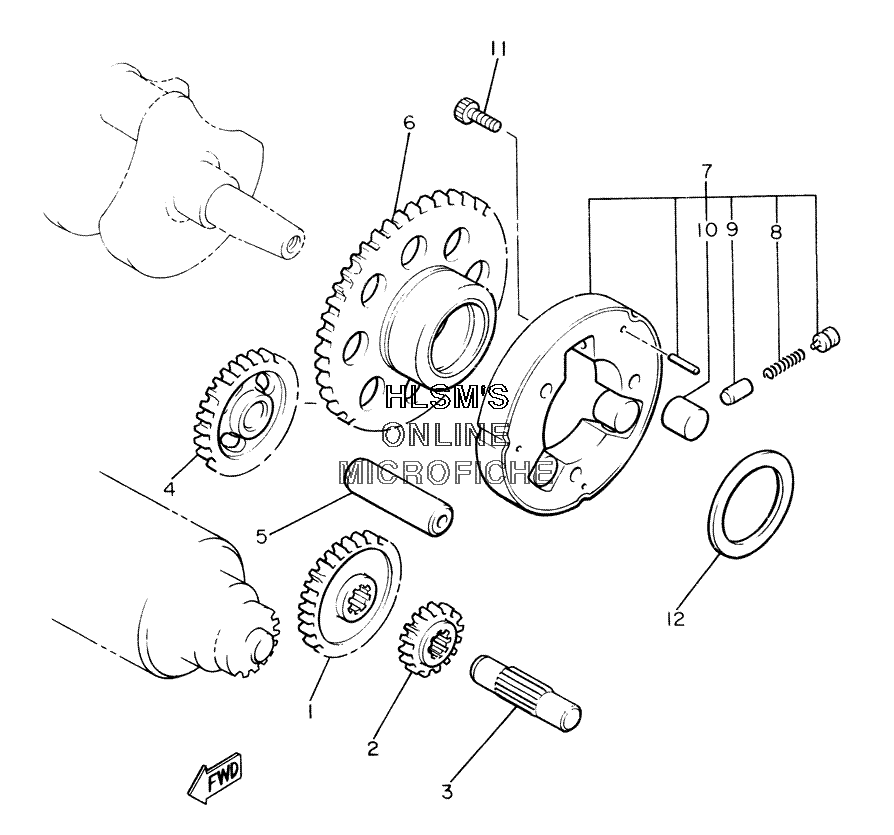

STARTER CLUTCH для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
126H-15514-00-00 GEAR 2 (42T)GEAR 2 (42T)
-
226H-15515-00-00 GEAR 3 (13T)GEAR 3 (13T)
-
326H-15522-00-00 SHAFT 2SHAFT 2
-
426H-15512-00-00 GEAR, IDLER 1 (27T)GEAR, IDLER 1 (27T)
-
526H-15521-00-00 SHAFT 1SHAFT 1
-
626H-15517-00-00 GEAR, IDLER 2 (76T)GEAR, IDLER 2 (76T)
-
711H-15580-00-00 STARTER CLUTCH OUTER ASSY.STARTER CLUTCH OUTER ASSY.
-
890501-04623-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
91J7-15583-01-00 ...CAP, STARTER CLUTCH SPRING...CAP, STARTER CLUTCH SPRING
-
1093615-12088-00 ...PIN, DOWEL...PIN, DOWEL
-
1191317-08014-00 BOLTBOLT
-
1290201-350F3-00 WASHER, PLATEWASHER, PLATE
