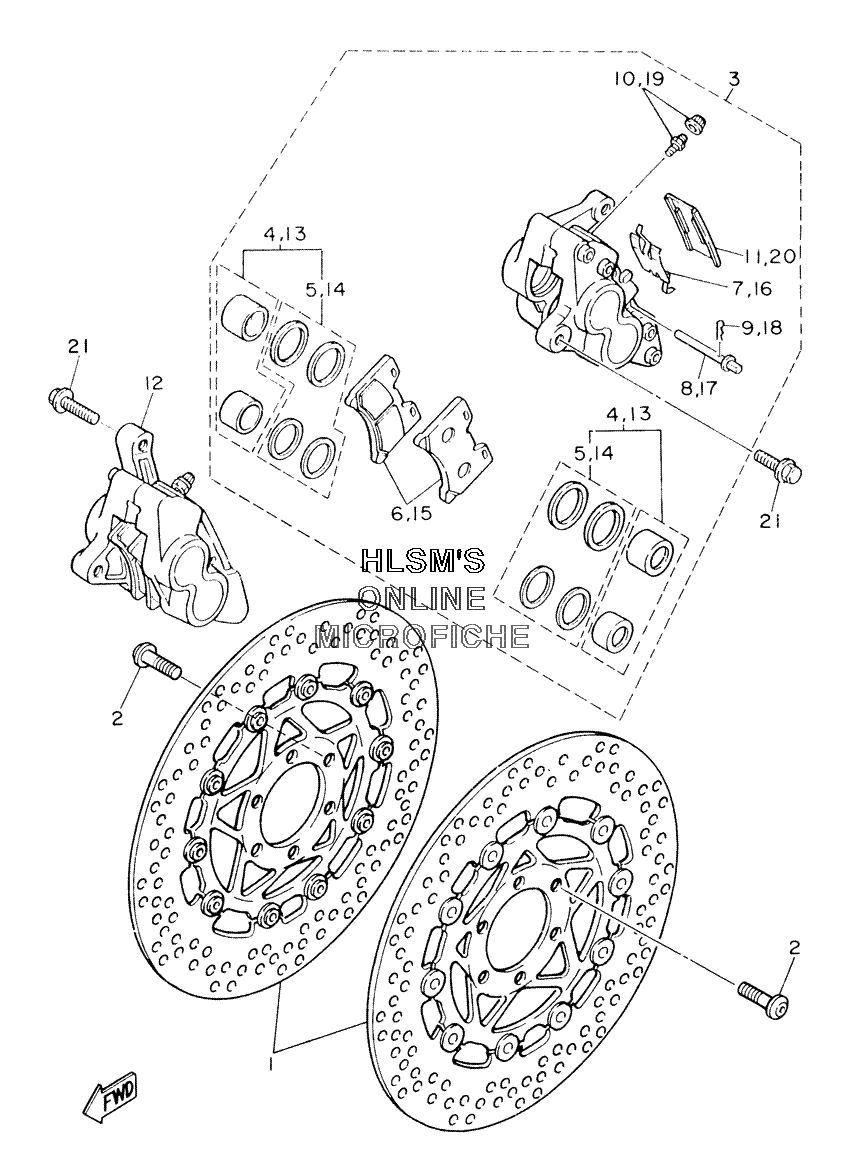

BRAKE - FRONT CALIPER для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
13LR-2581T-00-00 DISK BRAKE ASSY.DISK BRAKE ASSY.
-
290109-083G4-00 BOLTBOLT
-
33JP-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
43HE-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
53HE-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
63GM-W0045-02-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
73GM-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
83HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
93GM-25925-00-00 ...CLIP...CLIP
-
101J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
111KT-25836-00-00 ...COVER, DUST...COVER, DUST
-
123JP-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
133HE-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
143HE-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
153GM-W0045-02-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
163GM-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
173HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
183GM-25925-00-00 ...CLIP...CLIP
-
191J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
201KT-25836-00-00 ...COVER, DUST...COVER, DUST
-
2190105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
