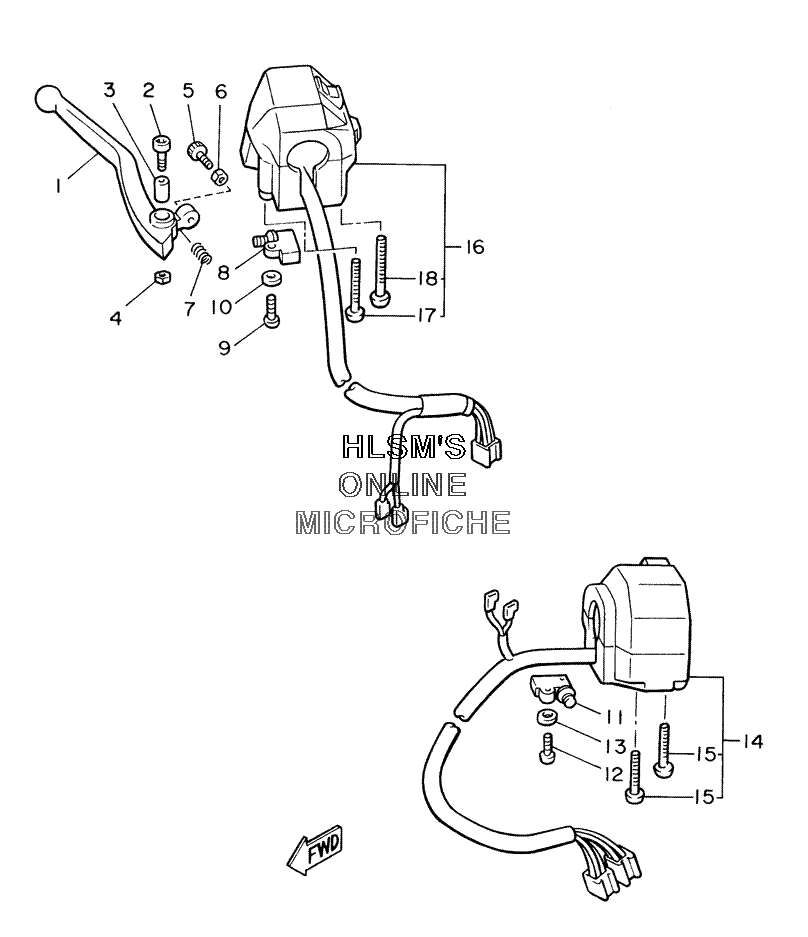

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
11FK-83922-00-00 LEVER RLEVER R
-
290110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
336Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
495607-06100-00 NUT, UNUT, U
-
590149-06131-00 SCREWSCREW
-
690170-06010-00 NUTNUT
-
790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
836Y-83980-01-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
-
998507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092907-04600-00 WASHERWASHER
-
1136Y-82917-00-00 SWITCHSWITCH
-
1298507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-04600-00 WASHERWASHER
-
141FK-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1598506-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
161FK-83973-11-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1798506-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1898506-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
