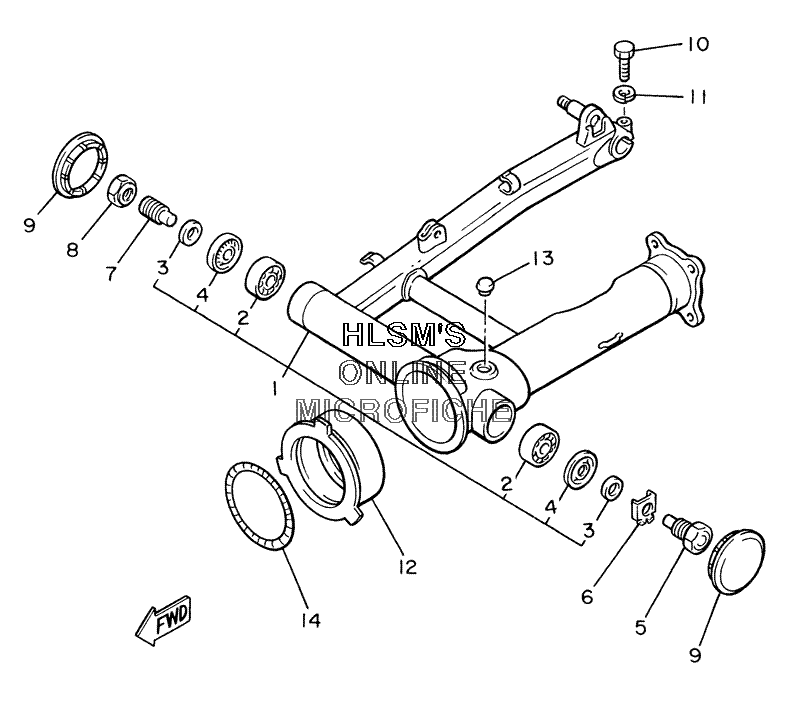

SUSPENSION - REAR ARM для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
12EN-W2211-00-35 REAR ARM COMP. (SILVER)REAR ARM COMP. (SILVER)
-
293332-00010-00 ...BEARING...BEARING
-
390387-17543-00 ...COLLAR...COLLAR
-
493102-25017-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
542X-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
690215-22238-00 WASHER, LOCKWASHER, LOCK
-
71J7-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
81J7-22143-00-00 NUTNUT
-
92H7-2219X-00-00 COVERCOVER
-
1097004-08035-00 BOLTBOLT
-
1192904-08600-00 WASHERWASHER
-
1226H-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1390338-20113-00 PLUGPLUG
-
1490506-07136-00 SPRING, TENSIONSPRING, TENSION
