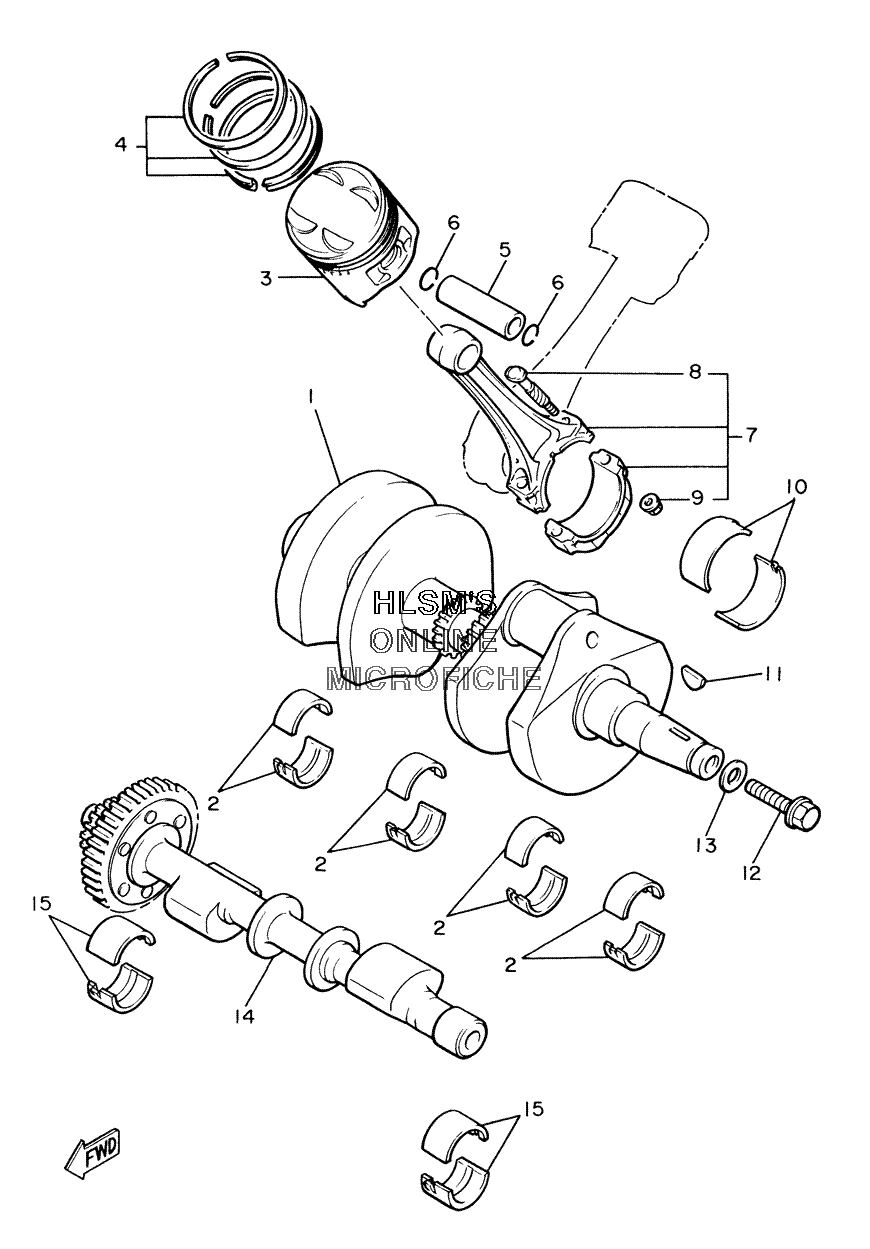

CRANKSHAFT - PISTON для Yamaha V MAX - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1FK-11400-00-00 CRANKSHAFT ASSY.
    CRANKSHAFT ASSY.
  • 2
    1FK-11416-01-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
  • 2
    1FK-11416-11-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
  • 2
    1FK-11416-31-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
  • 2
    1FK-11416-61-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
  • 2
    1FK-11416-51-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
  • 2
    1FK-11416-41-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
  • 2
    1FK-11416-21-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
  • 3
    1FK-11631-00-A0 PISTON (STD)
    PISTON (STD)
  • 3
    1FK-11636-00-00 PISTON (0.50MM O/S) (OPT)
    PISTON (0.50MM O/S) (OPT)
  • 3
    1FK-11635-00-00 PISTON (0.25MM O/S) (OPT)
    PISTON (0.25MM O/S) (OPT)
  • 4
    1FK-11610-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 4
    1FK-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)
    PISTON RING SET (0.50MM O/S) (OPT)
  • 4
    1FK-11610-10-00 PISTON RING SET (0.25MM O/S) (OPT)
    PISTON RING SET (0.25MM O/S) (OPT)
  • 5
    3JP-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 6
    93450-19095-00 CIRCLIP, INNER
    CIRCLIP, INNER
  • 7
    1FK-11650-01-00 CONNECTING ROD ASSY.
    CONNECTING ROD ASSY.
  • 8
    26H-11654-00-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 9
    90179-08327-00 ...NUT
    ...NUT
  • 10
    1FK-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
    PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
  • 10
    1FK-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
    PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
  • 10
    1FK-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
    PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
  • 10
    1FK-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
    PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
  • 10
    1FK-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
    PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
  • 10
    1FK-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (PINK)
    PLANE BEARING, CONNECTING ROD (OPT) (PINK)
  • 11
    90280-05029-00 KEY, WOODRUFF
    KEY, WOODRUFF
  • 12
    90105-12374-00 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    90201-121H0-00 WASHER, PLATE
    WASHER, PLATE
  • 14
    1FK-11500-10-00 BALANCER ASSY.
    BALANCER ASSY.
  • 15
    26H-11413-02-00 PLANE BEARING, BALANCE WEIGHT (OPT) (BLUE)
    PLANE BEARING, BALANCE WEIGHT (OPT) (BLUE)
  • 15
    26H-11413-12-00 PLANE BEARING, BALANCE WEIGHT (OPT) (BLACK)
    PLANE BEARING, BALANCE WEIGHT (OPT) (BLACK)
  • 15
    26H-11413-22-00 PLANE BEARING, BALANCE WEIGHT (OPT) (BROWN)
    PLANE BEARING, BALANCE WEIGHT (OPT) (BROWN)
  • 15
    26H-11413-32-00 PLANE BEARING, BALANCE WEIGHT (OPT) (GREEN)
    PLANE BEARING, BALANCE WEIGHT (OPT) (GREEN)
  • 15
    26H-11413-42-00 PLANE BEARING, BALANCE WEIGHT (OPT) (YELLOW)
    PLANE BEARING, BALANCE WEIGHT (OPT) (YELLOW)
  • 15
    26H-11413-52-00 PLANE BEARING, BALANCE WEIGHT (OPT) (PINK)
    PLANE BEARING, BALANCE WEIGHT (OPT) (PINK)
  • 15
    26H-11413-62-00 PLANE BEARING, BALANCE WEIGHT (OPT) (RED)
    PLANE BEARING, BALANCE WEIGHT (OPT) (RED)
