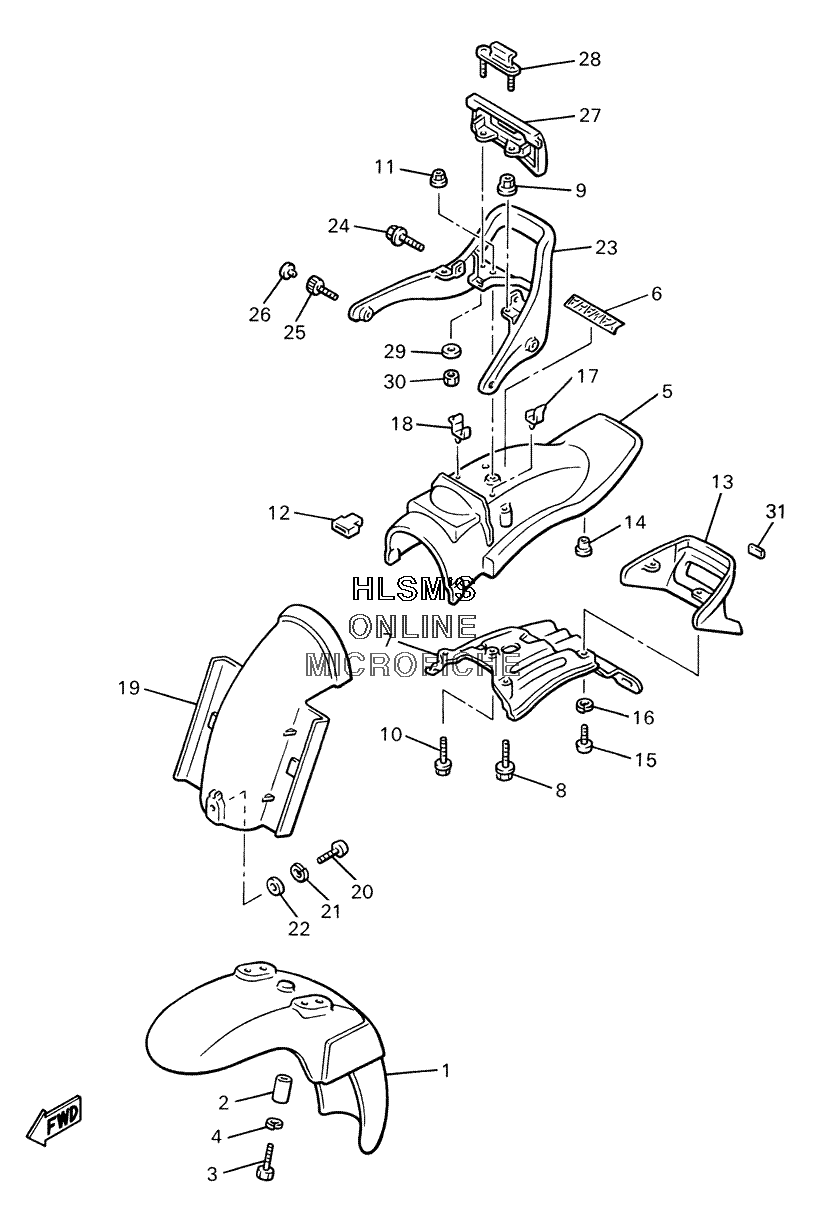

FENDER - FRONT / REAR для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
11FK-21511-00-6Y FENDER, FRONT (DRMK/LGB)FENDER, FRONT (DRMK/LGB)
-
290387-07789-00 COLLARCOLLAR
-
397027-06016-00 BOLTBOLT
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
51FK-21611-00-P8 FENDER, REAR (DRMK)FENDER, REAR (DRMK)
-
699247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
71FK-21670-01-00 REINF. COMP.REINF. COMP.
-
895827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
1095827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
12437-21717-10-00 DAMPERDAMPER
-
131FK-84516-01-98 COVER, TAILLIGHT (LGB)COVER, TAILLIGHT (LGB)
-
1431A-14477-00-00 PLATEPLATE
-
1598507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
1790464-16021-00 CLAMPCLAMP
-
1890464-16025-00 CLAMPCLAMP
-
191FK-21629-00-00 GUARD, MUDGUARD, MUD
-
2098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2290201-06055-00 WASHER, PLATEWASHER, PLATE
-
231FK-21645-00-00 STAY, REARSTAY, REAR
-
2495827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2591317-08020-00 BOLTBOLT
-
2690338-08163-00 PLUGPLUG
-
271FK-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
281FK-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
2995307-06600-00 NUTNUT
-
3090201-06057-00 WASHER, PLATEWASHER, PLATE
-
311FK-84527-00-00 DAMPERDAMPER
