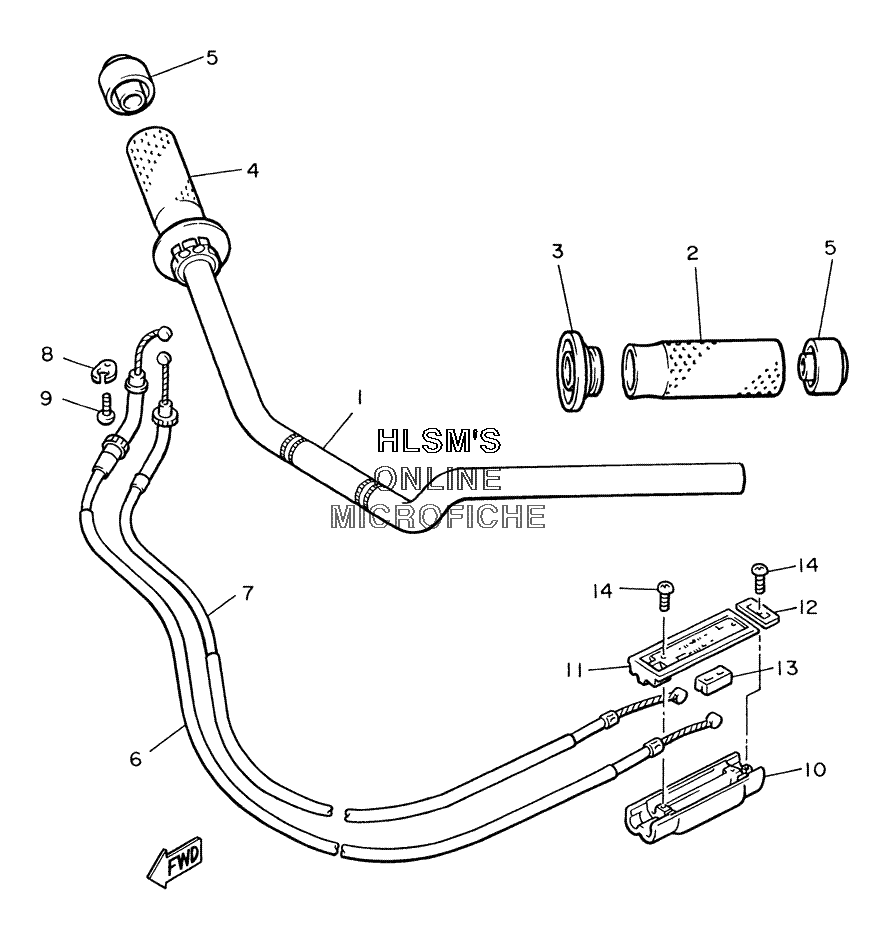

HANDLEBAR W/ CABLES для Yamaha V MAX - 2005 года выпуска`
-
№АртикулНазвание
-
11FK-26111-10-00 HANDLEBARHANDLEBAR
-
23JB-26241-00-00 GRIPGRIP
-
33JB-26273-00-00 ROTORROTOR
-
43JB-26240-00-00 GRIP ASSY.GRIP ASSY.
-
53JB-2628J-00-00 CAP, GRIPCAP, GRIP
-
61FK-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
71FK-26312-01-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
85H0-26393-00-00 HOLDERHOLDER
-
998507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1026H-26261-01-00 CONNECTOR, CABLECONNECTOR, CABLE
-
1126H-26262-01-00 CAP, CABLE CONNECTORCAP, CABLE CONNECTOR
-
1226H-26272-00-00 CAPCAP
-
1326H-26244-01-00 SLIDER, THROTTLESLIDER, THROTTLE
-
1497707-30112-00 SCREW, TAPPINGSCREW, TAPPING
