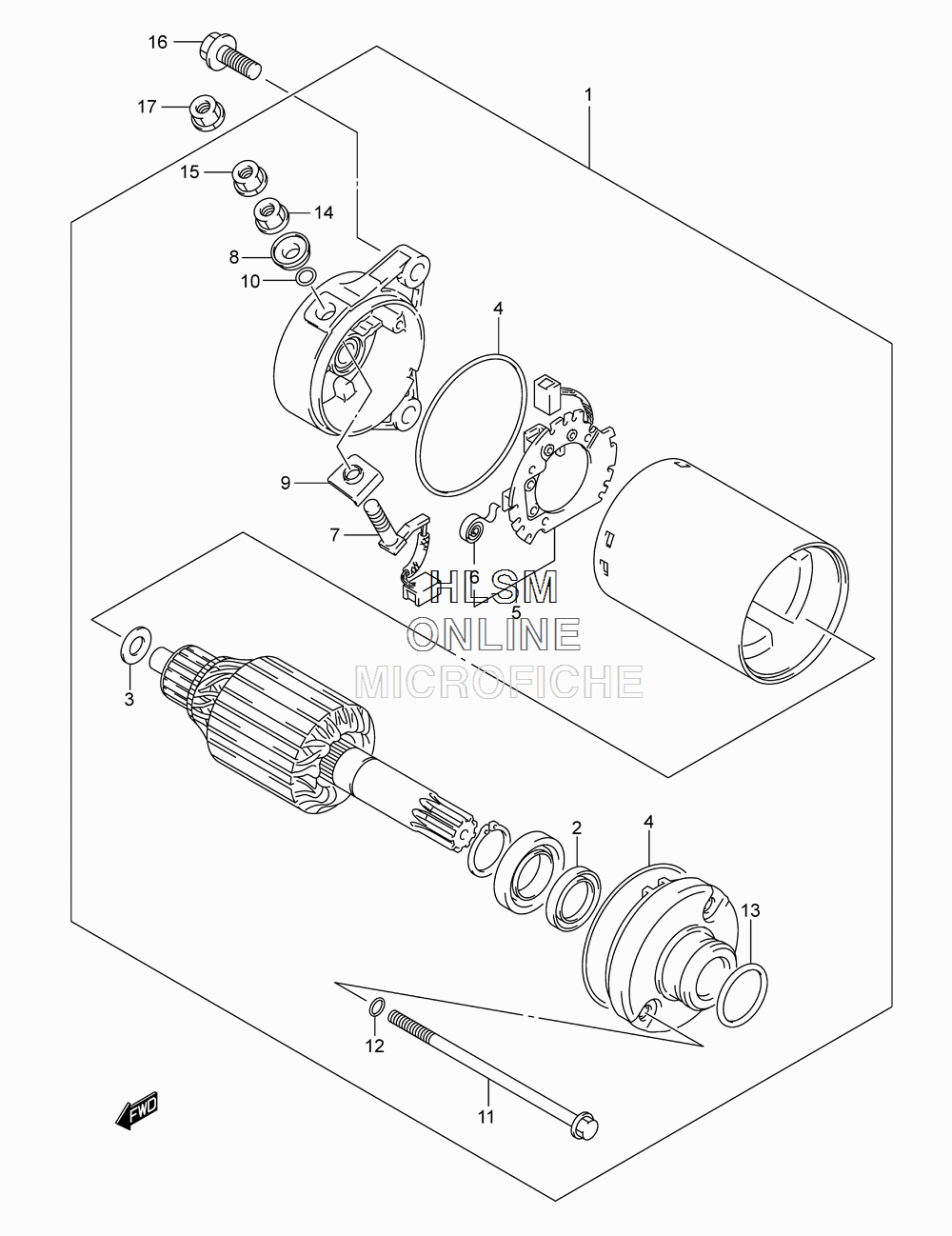

STARTING MOTOR для Suzuki TU250X L3 - 2013 года выпуска

№

Артикул

Название
1

31100-38300-H17 MOTOR ASSY, STARTING

MOTOR ASSY, STARTING
2

31153-49210 ...OIL SEAL

...OIL SEAL
3

31170-43400 ...SHIM SET

...SHIM SET
4

31264-44110 ...O-RING

...O-RING
5

31132-27A01 ...HOLDER, BRUSH

...HOLDER, BRUSH
6

31135-65010 ......SPRING

......SPRING
7

31130-38300 ...BRUSH, PLUS

...BRUSH, PLUS
8

31172-38300 ...BUSHING

...BUSHING
9

31171-38300 ...BUSH, B

...BUSH, B
10

31143-38300 ...O-RING

...O-RING
11

31281-87402 ...BOLT

...BOLT
12

31156-38300 ...O-RING

...O-RING
13

09280-24003 ...O RING (D:3,ID:24.5)

...O RING (D:3,ID:24.5)
14

08310-00067 ...NUT

...NUT
15

08361-3506A ...NUT

...NUT
16

09103-06212 BOLT (6X25)

BOLT (6X25)
17

08361-3506A NUT

NUT
