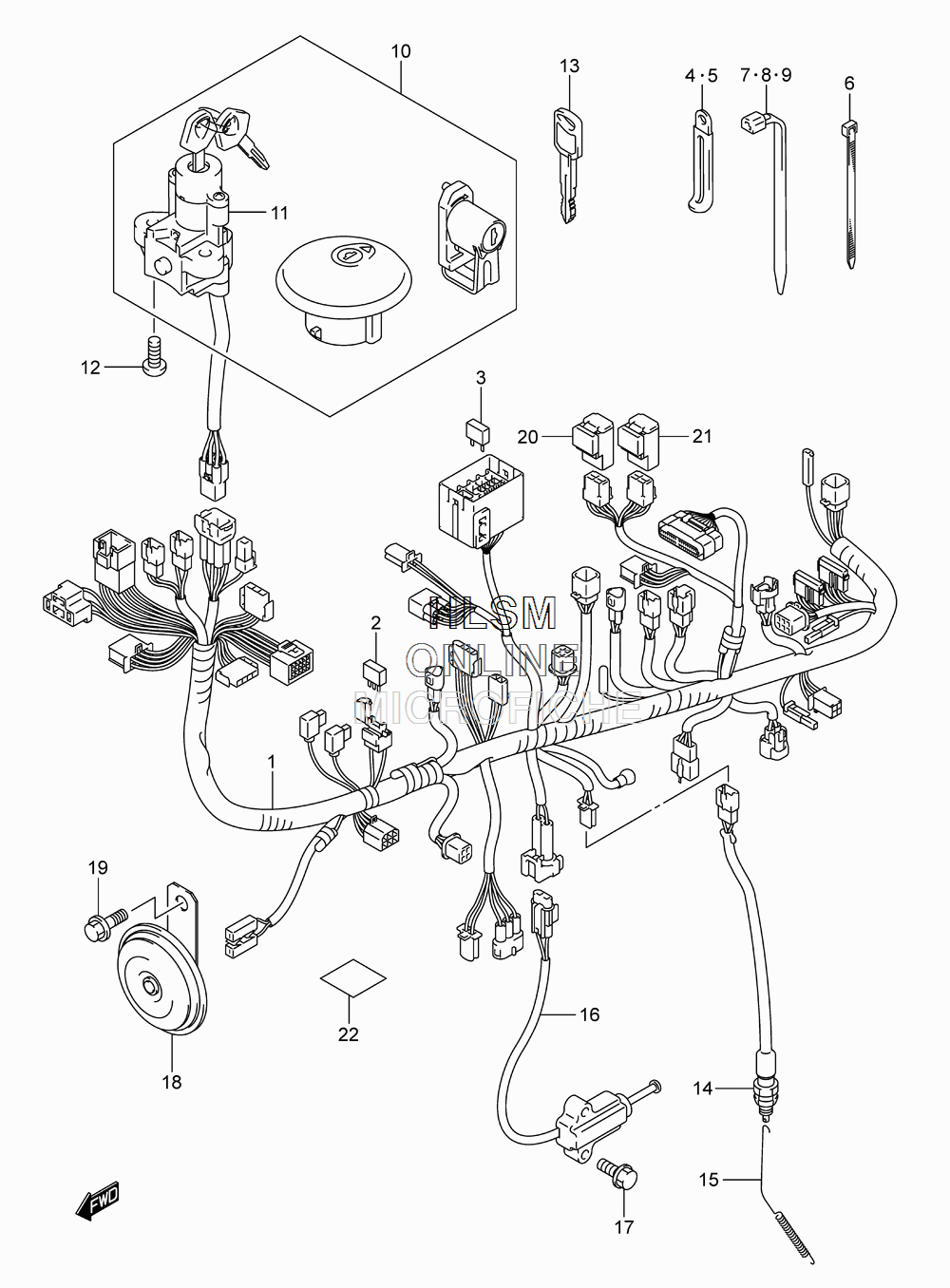

ELECTRICAL - WIRING HARNESS для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
136610-26G70 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 ...DIODE...DIODE
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409404-06433 CLAMP (L:80)CLAMP (L:80)
-
509404-08419 CLAMP (L:80)CLAMP (L:80)
-
609407-10403 CLAMP (L:95)CLAMP (L:95)
-
709407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
1037106-33890 LOCK SETLOCK SET
-
1137100-33EB0 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1209139-08016 BOLT (8X20)BOLT (8X20)
