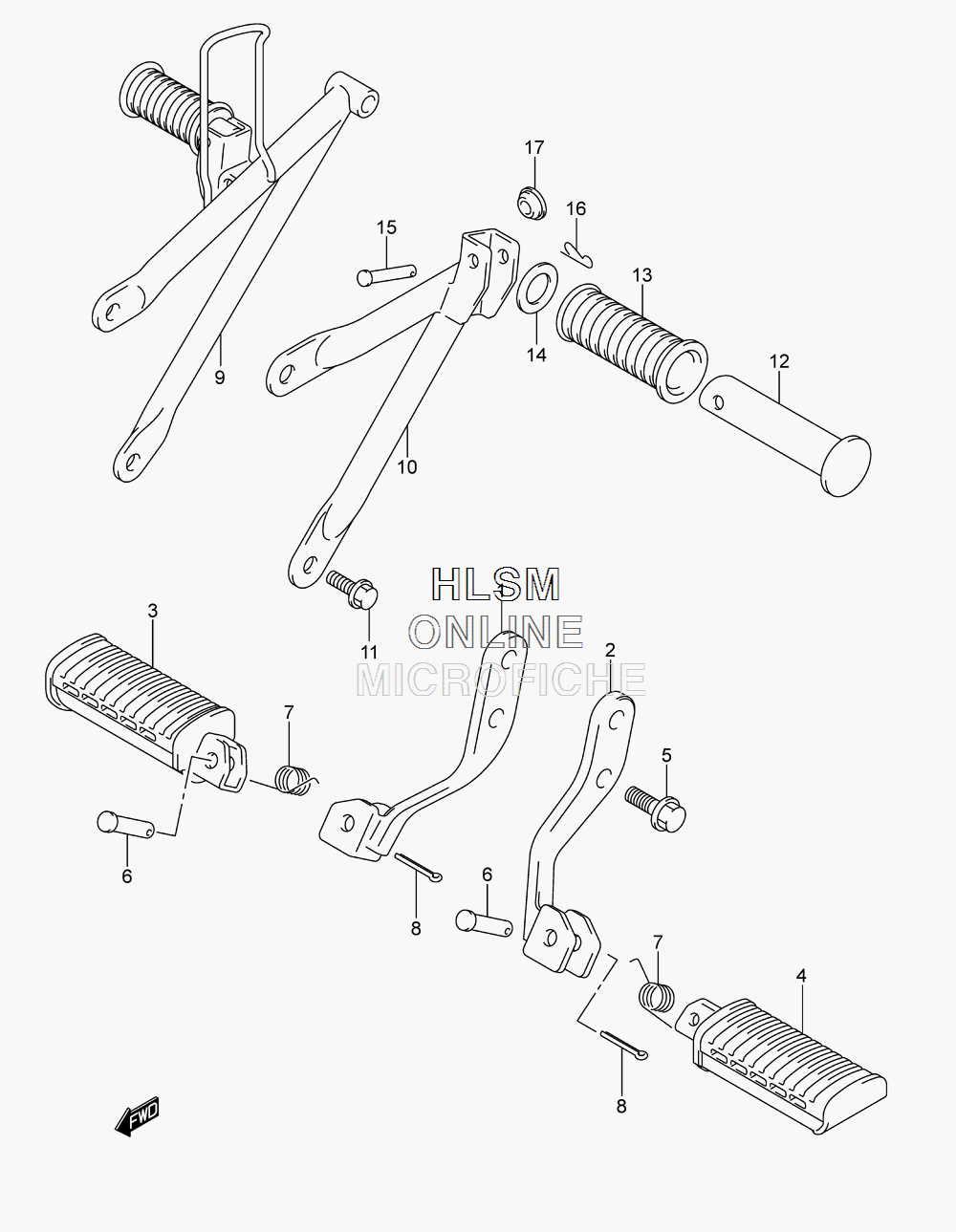

FOOTREST для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
143510-26G00 BAR, FRONT FOOTREST RIGHTBAR, FRONT FOOTREST RIGHT
-
243520-26G00 BAR, FRONT FOOTREST LEFTBAR, FRONT FOOTREST LEFT
-
343550-37301 RUBBER, RIGHTRUBBER, RIGHT
-
443560-37301 RUBBER, LEFTRUBBER, LEFT
-
501550-1025B BOLTBOLT
-
609200-08002 PINPIN
-
709448-14012 SPRINGSPRING
-
804111-2020A COTTER PINCOTTER PIN
-
943810-26G01-019 TUBE, PILLION RIGHT (019 - BLACK)TUBE, PILLION RIGHT (019 - BLACK)
-
1043820-26G01-019 TUBE, PILLION LEFT (019 - BLACK)TUBE, PILLION LEFT (019 - BLACK)
-
1101550-1020B BOLTBOLT
-
1243610-03001 BAR, PILLIONBAR, PILLION
-
1343612-33200 RUBBER, PILLIONRUBBER, PILLION
-
1409160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
1509200-06033 PINPIN
-
1609385-06012 CLIPCLIP
-
1709250-15010 PLUGPLUG
