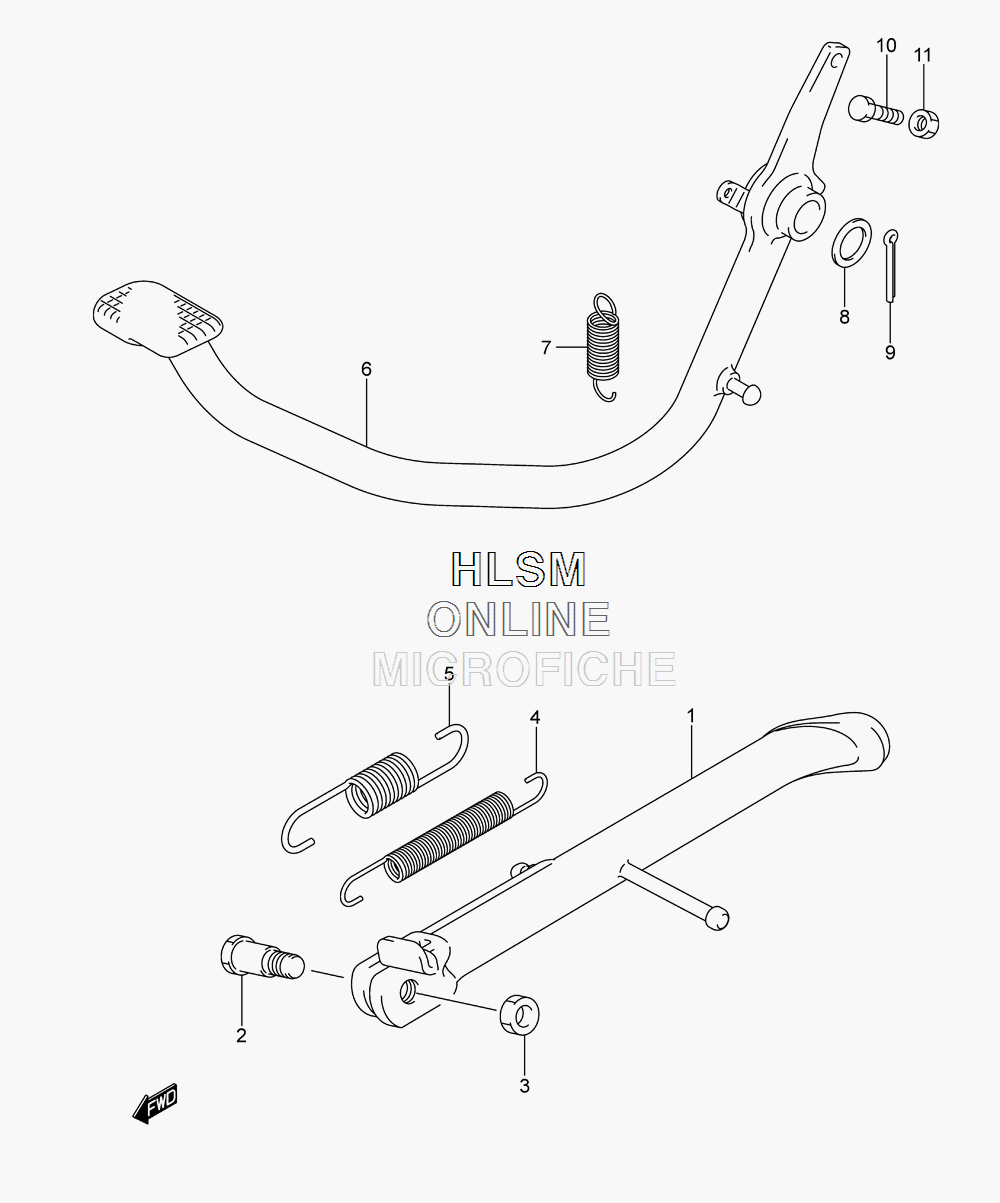

BRAKE PEDAL W/ STAND (CANADA ONLY) для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
142310-26G10 STAND, PROPSTAND, PROP
-
209111-10036 BOLT (10X38)BOLT (10X38)
-
308319-3110B NUTNUT
-
409443-12036 SPRINGSPRING
-
509443-19010 SPRINGSPRING
-
643110-26G00 PEDAL, BRAKEPEDAL, BRAKE
-
709443-14013 SPRINGSPRING
-
809160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
904111-3025A COTTER PINCOTTER PIN
-
1009100-06009 BOLT (6X23)BOLT (6X23)
-
1108310-0006B NUTNUT
