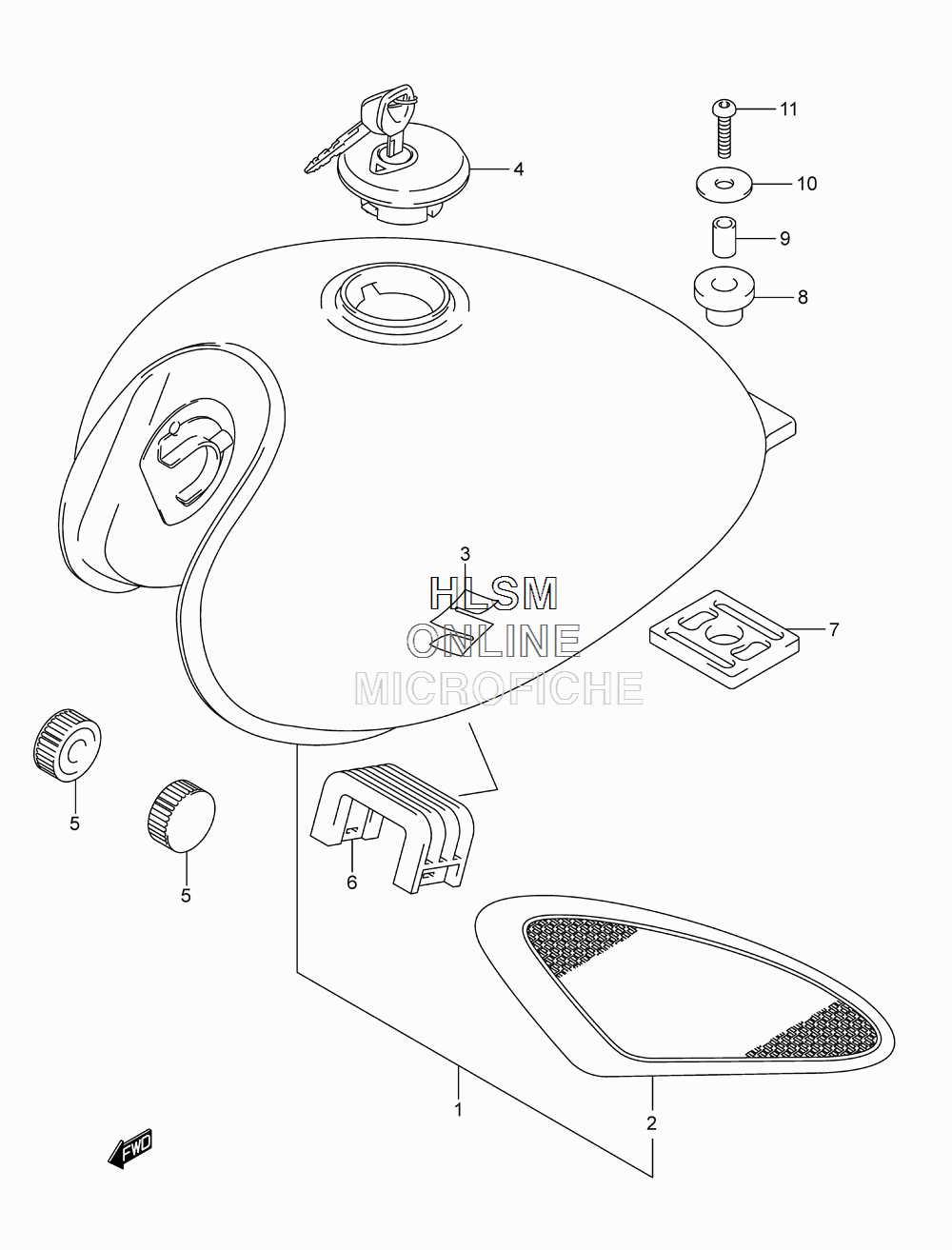

FUEL TANK для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
144100-26G60-YMD TANK ASSY, FUEL (YMD - SILVER)TANK ASSY, FUEL (YMD - SILVER)
-
268110-26G10-ALA ...TAPE SET (GRAY/RED)...TAPE SET (GRAY/RED)
-
368111-18G20 EMBLEM "S"EMBLEM "S"
-
444200-24840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509329-10016 CUSHIONCUSHION
-
644541-38200 CUSHION, CENTERCUSHION, CENTER
-
744542-41F00 CUSHION, LOWERCUSHION, LOWER
-
844541-41F01 CUSHION, UPPERCUSHION, UPPER
-
909180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
1009160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
1107120-0835B BOLTBOLT
