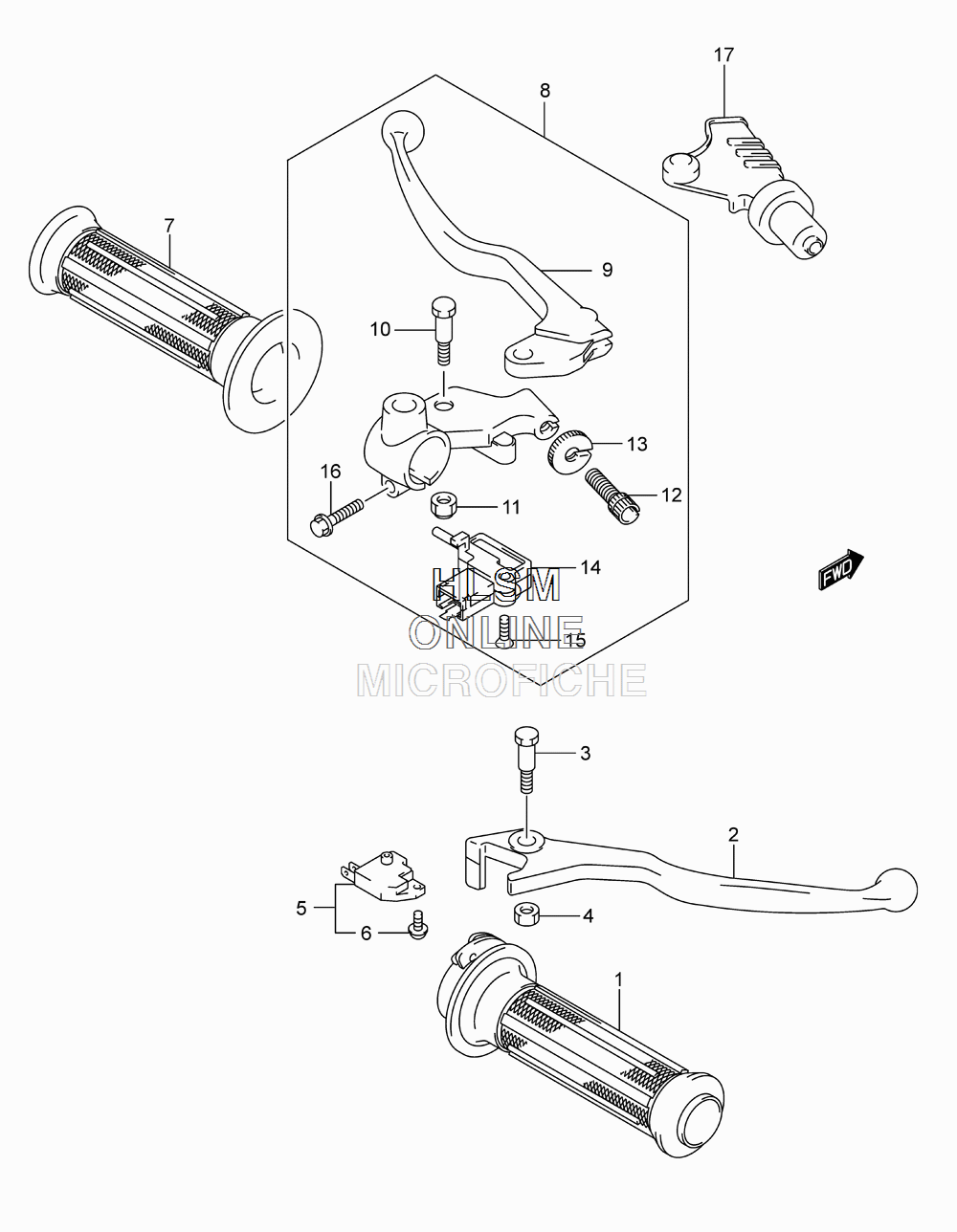

HANDLEBAR - LEVERS для Suzuki TU250X L3 - 2013 года выпуска`
-
№АртикулНазвание
-
157110-29G01-291 GRIP, THROTTLE (BLACK)GRIP, THROTTLE (BLACK)
-
257421-14F00 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
357431-04F00 BOLT, BRAKE LEVER PIVOTBOLT, BRAKE LEVER PIVOT
-
457433-09F00 NUT, PIVOTNUT, PIVOT
-
557460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757211-22D01-291 GRIP, LEFT (BLACK)GRIP, LEFT (BLACK)
-
857500-25D00 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
957621-40F00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057431-45C01 ...BOLT, LEVER SET...BOLT, LEVER SET
-
1108319-2106B ...NUT...NUT
-
1257441-45C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1357442-45C00 ...NUT, LOCK...NUT, LOCK
-
1457560-05A00 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1502122-0320A ...SCREW...SCREW
-
1601547-0620B ...BOLT...BOLT
-
1757661-33E00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
