GASKET SET для Suzuki TU250X L3 - 2013 года выпуска

  • №
    Артикул
    Название
  • 1

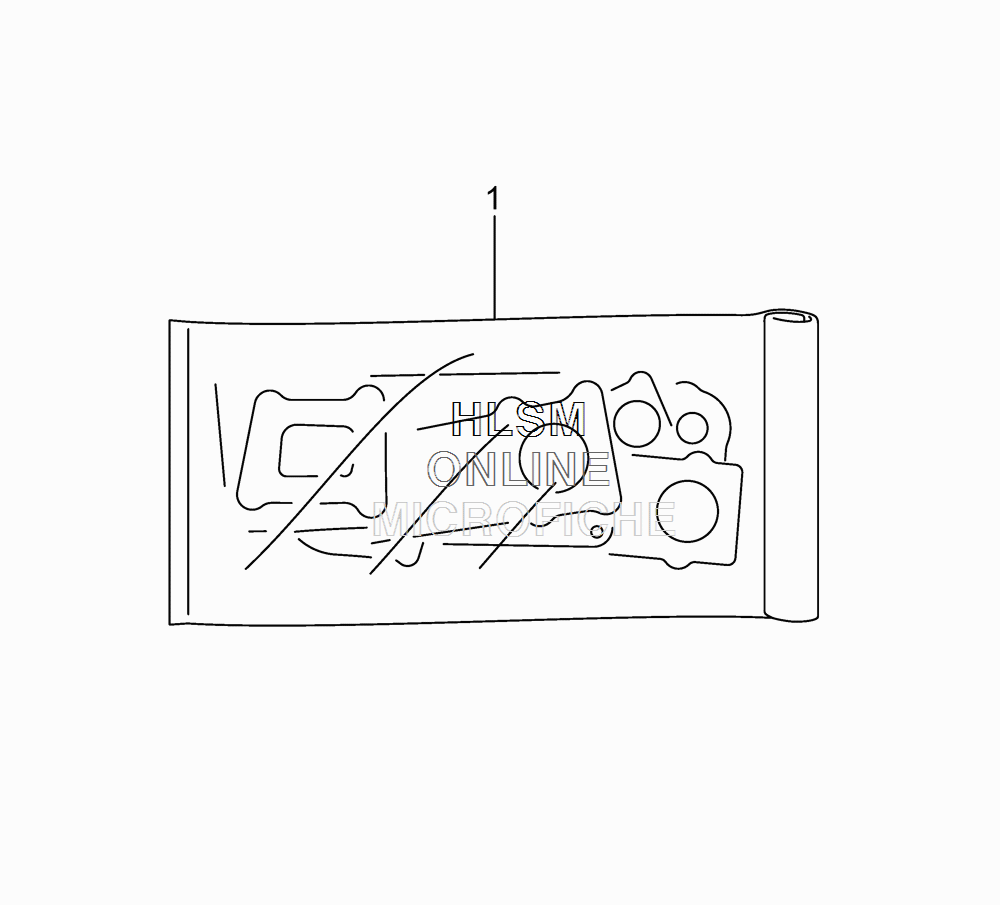

    11401-26812 GASKET SET
    GASKET SET
  • 2
    11141-26G00 ...GASKET, CYLINDER HEAD
    ...GASKET, CYLINDER HEAD
  • 3
    11241-26G00 ...GASKET, CYLINDER
    ...GASKET, CYLINDER
  • 4
    11482-38212 ...GASKET, CLUTCH COVER
    ...GASKET, CLUTCH COVER
  • 5
    11483-37D11 ...GASKET, MAGNETO COVER
    ...GASKET, MAGNETO COVER
  • 6
    12837-32410 ...GASKET, TENSIONER ADJUSTER
    ...GASKET, TENSIONER ADJUSTER
  • 7
    14181-22D01 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 8
    09280-15007 ...O RING (D:2.4,ID:15.8)
    ...O RING (D:2.4,ID:15.8)
  • 9
    09280-30001 ...O RING (D:3.0,ID:29.5)
    ...O RING (D:3.0,ID:29.5)
  • 10
    09280-40010 ...O RING (D:2.4,ID:39.7)
    ...O RING (D:2.4,ID:39.7)
  • 11
    09280-72001 ...O RING (D:2.4,ID:73.0)
    ...O RING (D:2.4,ID:73.0)
  • 12
    09280-82001 ...O RING (D:2.4,ID:85.0)
    ...O RING (D:2.4,ID:85.0)
