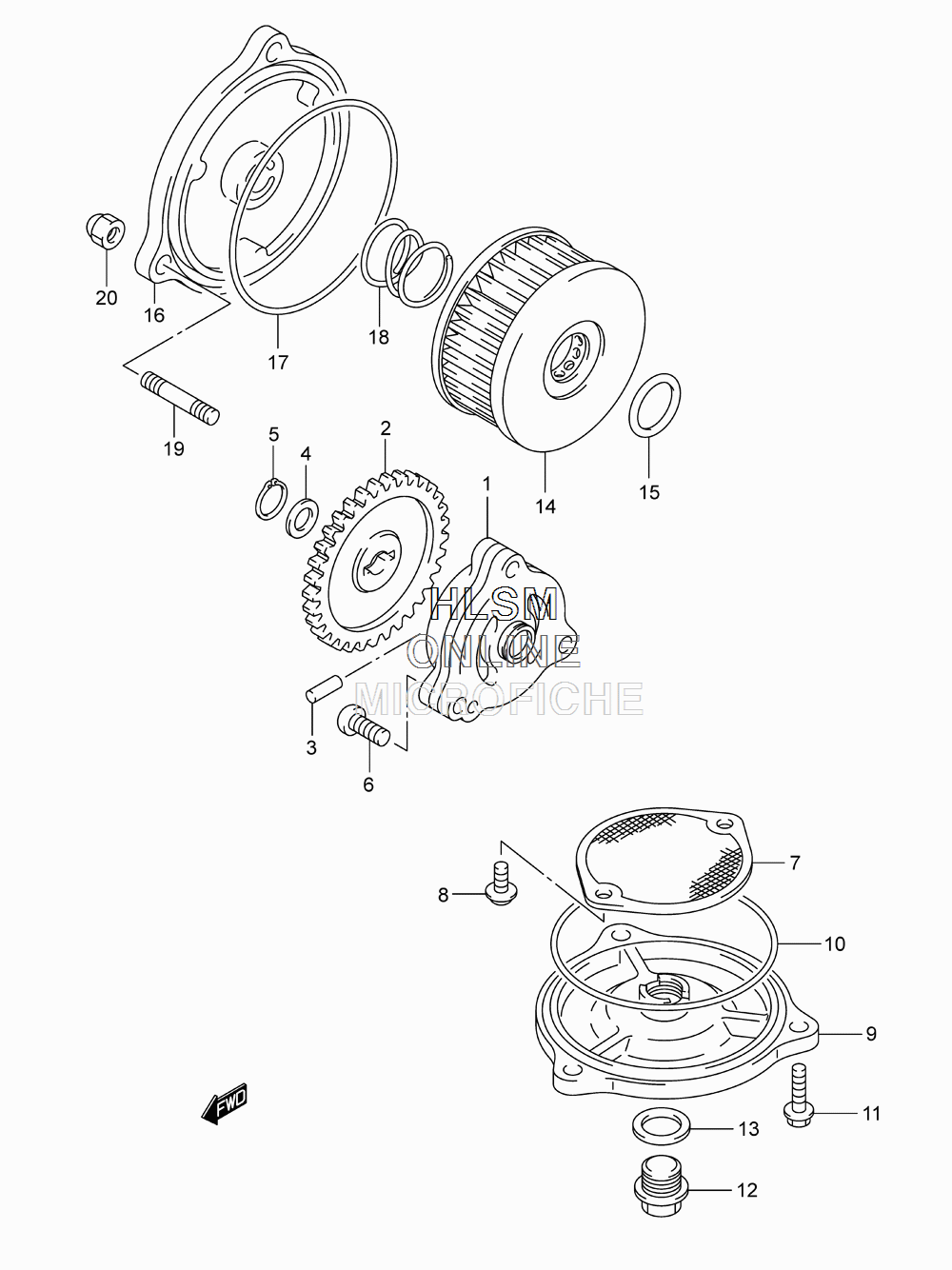

OIL PUMP для Suzuki TU250X L3 - 2013 года выпуска`
-
№АртикулНазвание
-
116400-38200 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
216331-26F00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
309261-04001 PIN (4X18.5)PIN (4X18.5)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
508331-31109 CIRCLIPCIRCLIP
-
607130-0625A BOLTBOLT
-
716520-37400 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
802112-7512A SCREWSCREW
-
916523-38200 CAP, OIL STRAINERCAP, OIL STRAINER
-
1009280-82001 O RING (D:2.4,ID:85)O RING (D:2.4,ID:85)
-
1101547-0620A BOLTBOLT
-
1209247-14026 PLUGPLUG
-
1309168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1416510-38240 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1509280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1616512-25D00 CAP, OIL FILTERCAP, OIL FILTER
-
1709280-72001 O RING (D:2.4,ID:73)O RING (D:2.4,ID:73)
-
1809440-21006 SPRINGSPRING
-
1909108-06123 STUD BOLTSTUD BOLT
-
2008313-10067 NUTNUT
