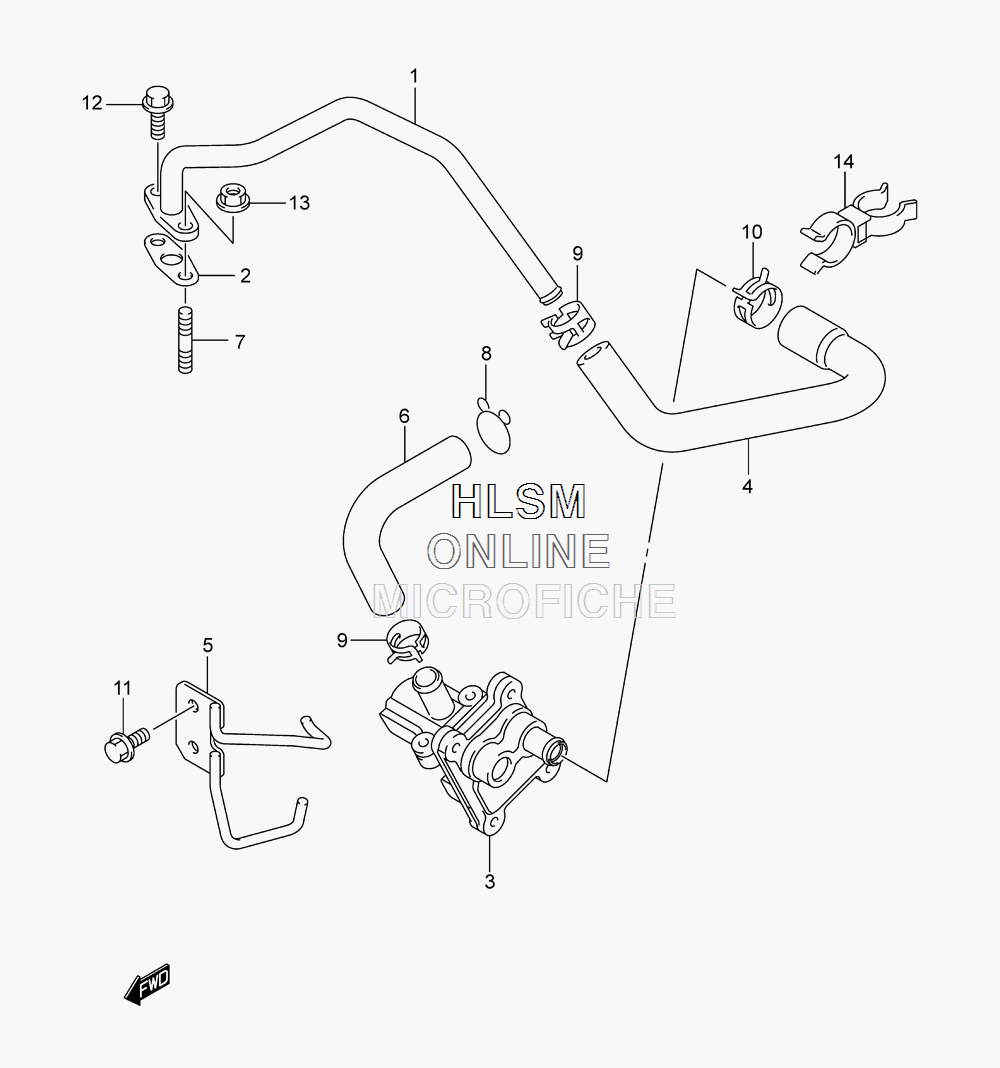

2ND AIR для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
118410-26G10 PIPE, 2ND AIRPIPE, 2ND AIR
-
218441-45C01 GASKETGASKET
-
318450-26G11 VALVE ASSY, 2ND AIRVALVE ASSY, 2ND AIR
-
418461-26G11 HOSE, 2ND AIR VALVEHOSE, 2ND AIR VALVE
-
518610-26G00 BRACKET, 2ND AIR VALVEBRACKET, 2ND AIR VALVE
-
618711-26G20 HOSE, 2ND AIR CLEANERHOSE, 2ND AIR CLEANER
-
709108-06102 STUD BOLTSTUD BOLT
-
809401-15101 CLIPCLIP
-
909401-17401 CLIPCLIP
-
1009401-20408 CLIPCLIP
-
1101547-0612A BOLTBOLT
-
1201550-0616A BOLTBOLT
-
1308316-1006A NUTNUT
-
1409408-00262 CLAMPCLAMP
