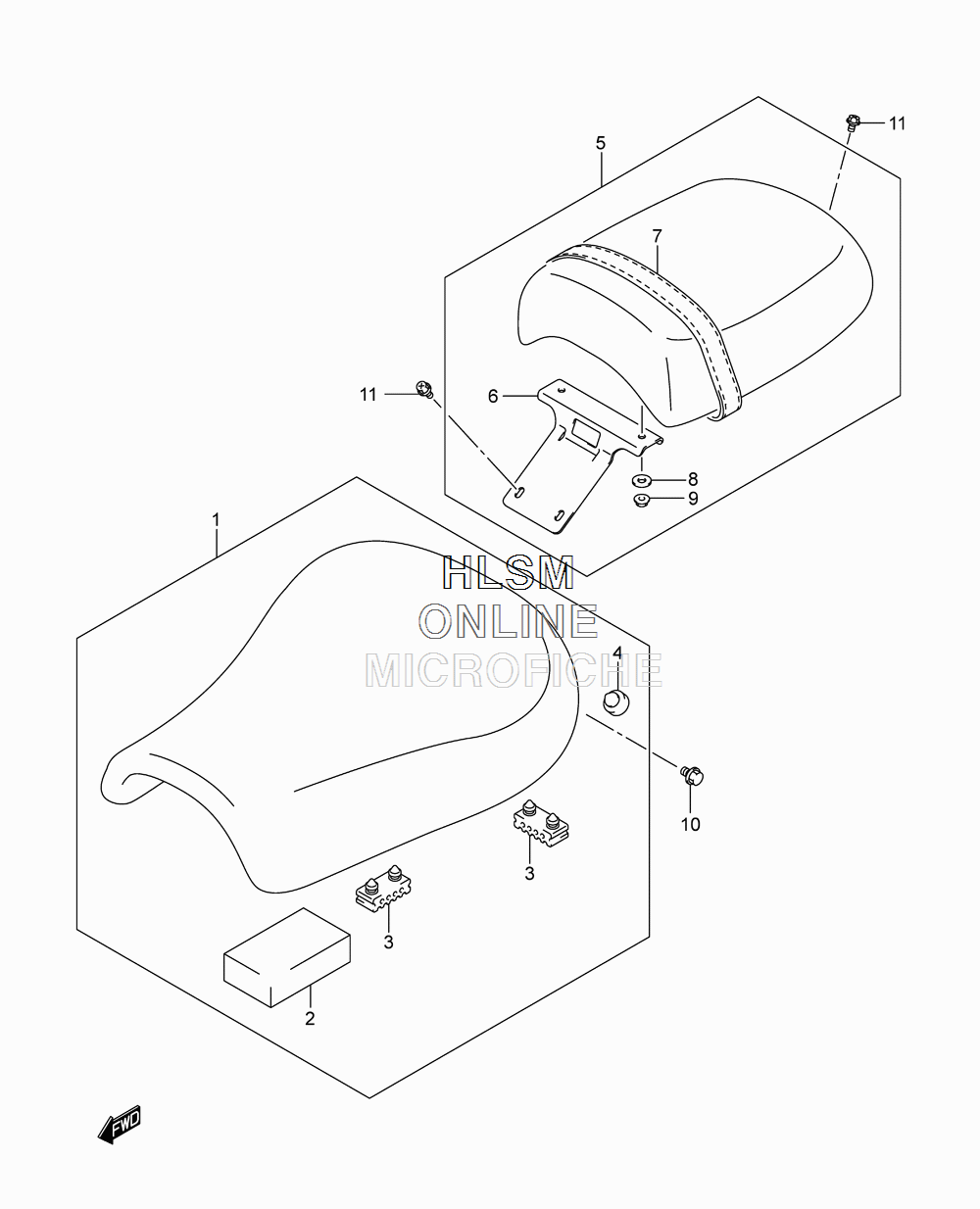

SEAT для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
145100-26G10-58P SEAT ASSY (58P - BLACK)SEAT ASSY (58P - BLACK)
-
245149-26G00 ...CUSHION, TOOL...CUSHION, TOOL
-
345149-31300 ...CUSHION, FRONT...CUSHION, FRONT
-
409321-10012 ...CUSHION...CUSHION
-
545300-26G00-9MG SEAT ASSY, PILLIONSEAT ASSY, PILLION
-
645316-26G00 ...PLATE, FRONT...PLATE, FRONT
-
745381-26G00 ...BAND, SEAT GRIP...BAND, SEAT GRIP
-
809160-06084 ...WASHER (6.5X18X1.6)...WASHER (6.5X18X1.6)
-
908316-1006B ...NUT...NUT
-
1001550-0812B BOLTBOLT
-
1102162-0612B BOLTBOLT
