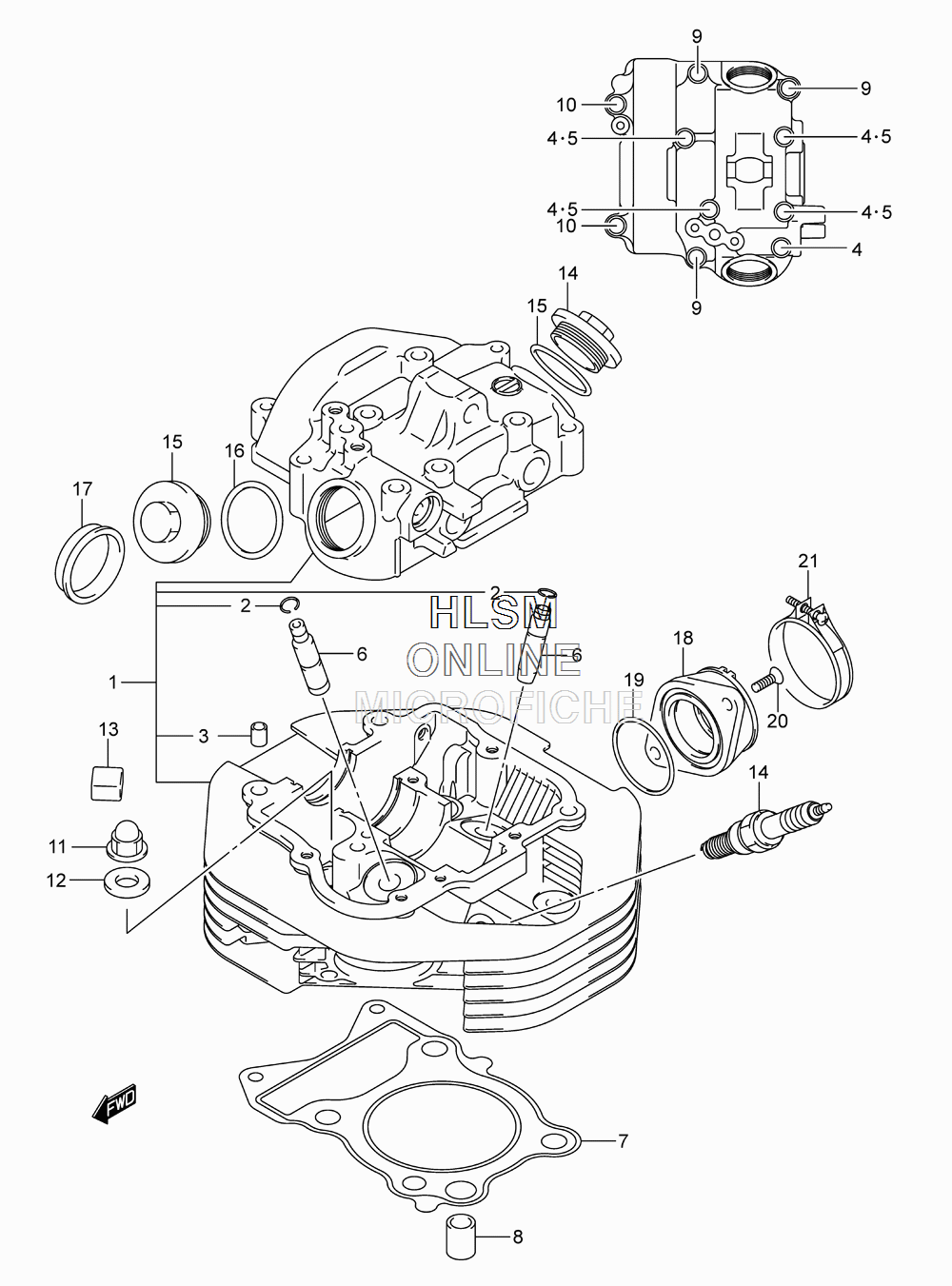

CYLINDER HEAD для Suzuki TU250X L3 - 2013 года выпуска

№

Артикул

Название
1

11100-26G01 HEAD ASSY, CYLINDER

HEAD ASSY, CYLINDER
2

09381-10004 ...CIRCLIP

...CIRCLIP
3

09206-08001 ...PIN (8X11)

...PIN (8X11)
4

09103-06064 ...BOLT (6X60)

...BOLT (6X60)
5

09168-06023 ...GASKET (5.8X13X1.2)

...GASKET (5.8X13X1.2)
6

11115-05270 GUIDE, VALVE

GUIDE, VALVE
7

11141-26G00 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
8

04211-13189 PIN

PIN
9

01550-0645A BOLT

BOLT
10

08313-2006A NUT

NUT
11

09159-10026 NUT

NUT
12

09168-10017 GASKET (10.5X22X2)

GASKET (10.5X22X2)
13

11151-39300 PAD, RUBBER

PAD, RUBBER
14

09482-00223 SPARK PLUG (X24ESR-U)

SPARK PLUG (X24ESR-U)
14

09482-00399 SPARK PLUG (DR8EA)

SPARK PLUG (DR8EA)
15

11175-18900 CAP, INSPECTION

CAP, INSPECTION
16

09280-30001 O RING (D:3,ID:29.5)

O RING (D:3,ID:29.5)
17

09241-38001 PLUG

PLUG
18

13110-26GA0 PIPE, INTAKE

PIPE, INTAKE
19

09280-40010 O RING (D:2.4,ID:39.7)

O RING (D:2.4,ID:39.7)
20

02122-0616B SCREW

SCREW
21

13170-25D01 CLAMP

CLAMP
