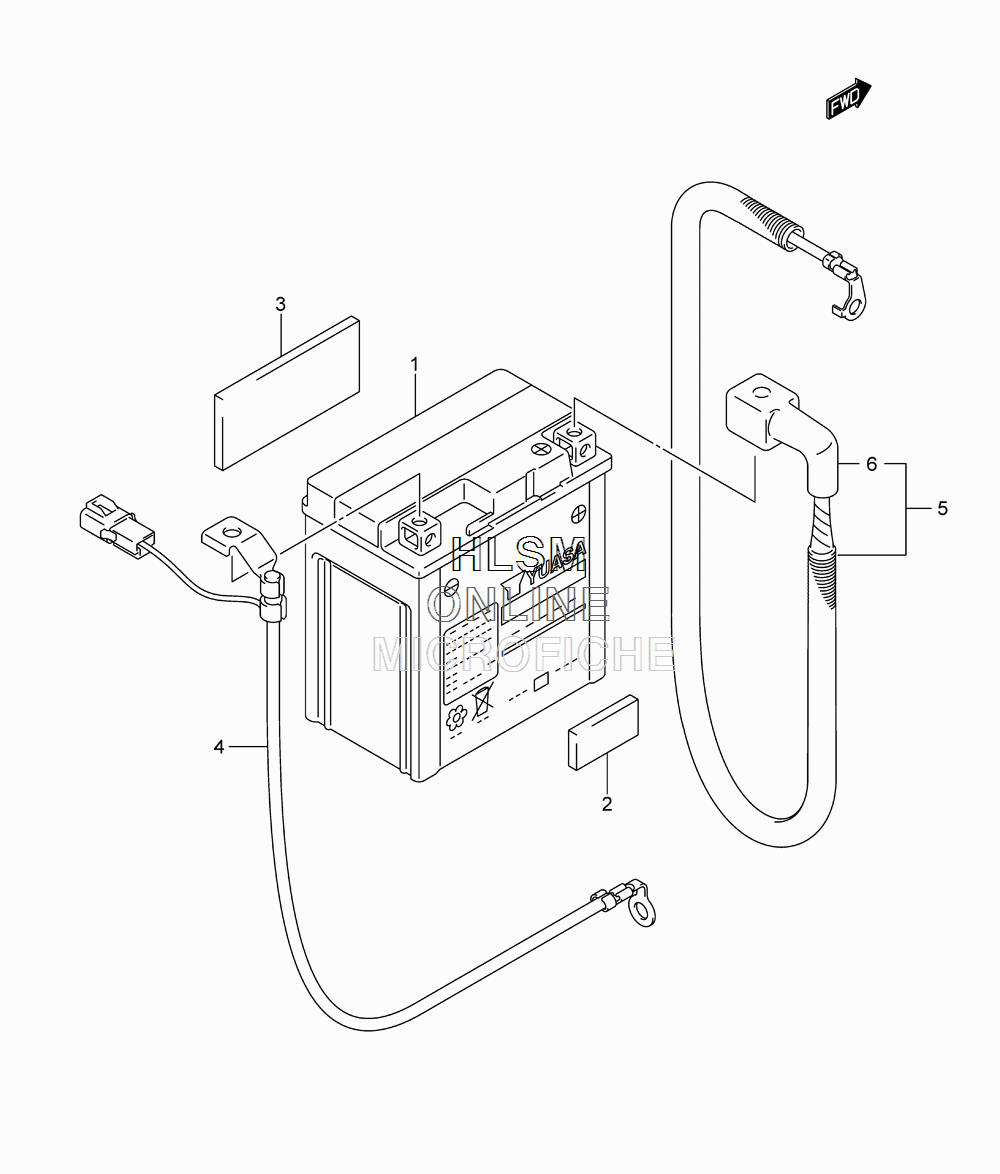

BATTERY для Suzuki TU250X L3 - 2013 года выпуска
-
№АртикулНазвание
-
133610-15D20 BATTERY ASSY (YTX7L-BS,12V6AH)BATTERY ASSY (YTX7L-BS,12V6AH)
-
233652-24D00 PROTECTOR (100X70X3)PROTECTOR (100X70X3)
-
333652-28C00 PROTECTOR (85X40X3)PROTECTOR (85X40X3)
-
433860-26G00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
-
533820-26G10 WIRE, BATTERY PLUS LEADWIRE, BATTERY PLUS LEAD
-
633624-43500 ...CAP, BATTERY PLUS TERMINAL...CAP, BATTERY PLUS TERMINAL
