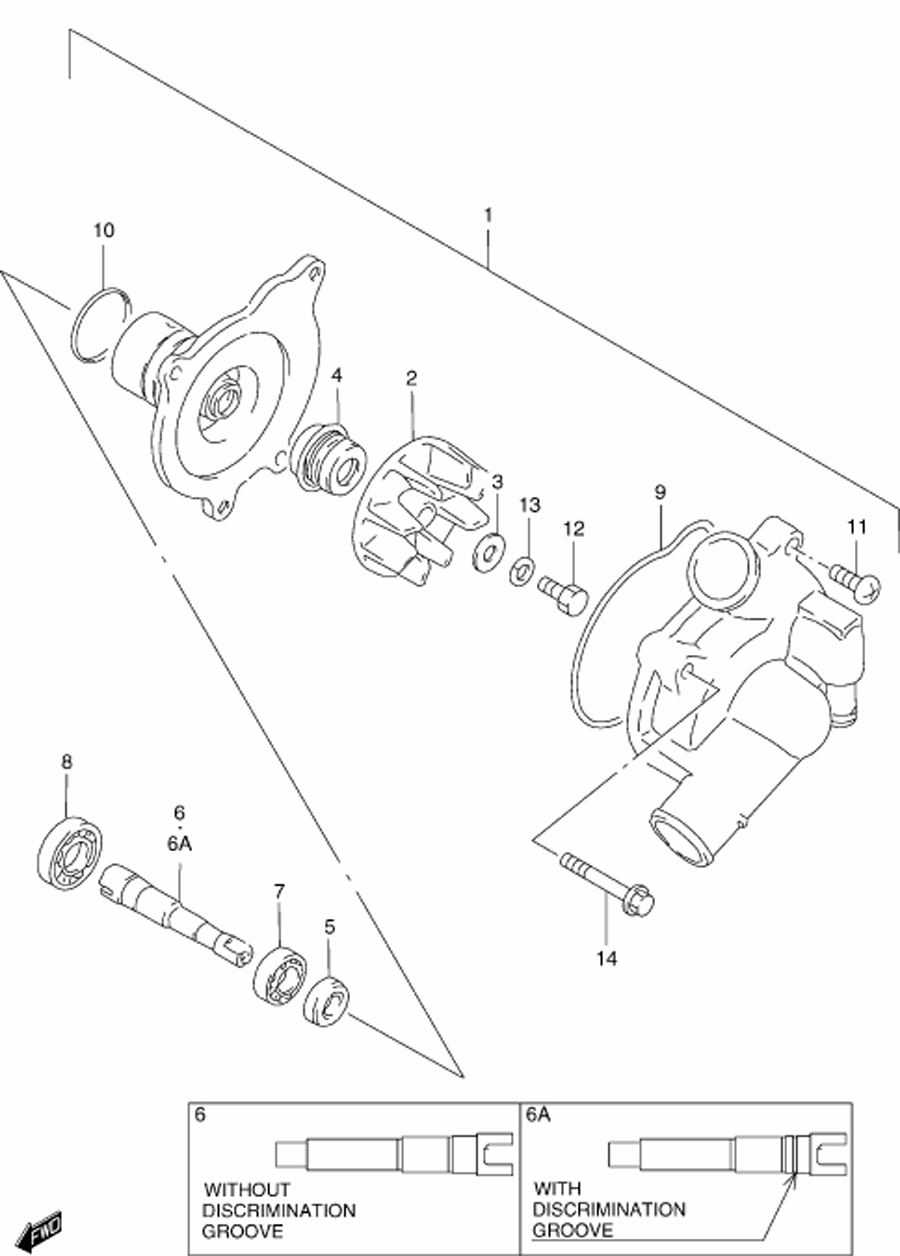

WATER PUMP для Suzuki GSX-R600 Y - 2000 года выпуска`
-
№АртикулНазвание
-
117400-33E00 PUMP ASSY., WATERPUMP ASSY., WATER
-
217491-17E01 ...IMPELLER...IMPELLER
-
309168-06025 ...GASKET...GASKET
-
4-217470-46A01 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
509283-10004 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
617511-33E00 ...SHAFT (W/O DISCRIMINATION GROOVE)...SHAFT (W/O DISCRIMINATION GROOVE)
-
6A17511-33E01 ...SHAFT (WITH DISCRIMINATION GROOVE)...SHAFT (WITH DISCRIMINATION GROOVE)
-
709262-10014 ...BEARING (10X26X8)...BEARING (10X26X8)
-
809262-12001 ...BEARING (12X28X8)...BEARING (12X28X8)
-
917418-33400 ...O-RING...O-RING
-
1017435-33400 ...O-RING...O-RING
-
1102112-06163 ...SCREW...SCREW
-
1209100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1309164-06006 ...LOCK WASHER...LOCK WASHER
-
1401547-06353 BOLTBOLT
