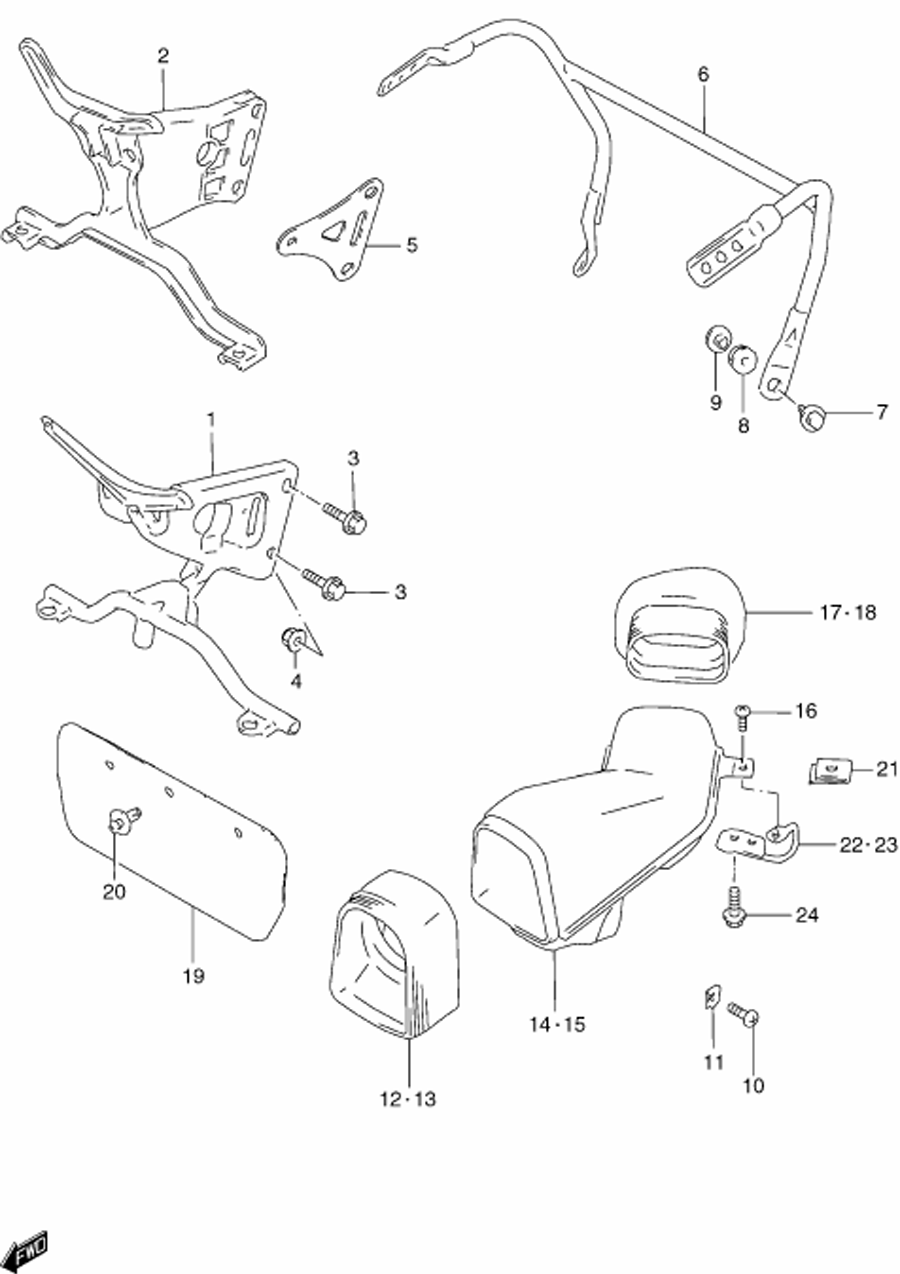

UPPER COWLING BODY - INSTALLATION PARTS для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
294510-33E10 BRACE, COWLINGBRACE, COWLING
-
3-201550-08403 BOLTBOLT
-
408313-20083 NUTNUT
-
594512-33E00 PLATE, BRACEPLATE, BRACE
-
6-294520-33E01 BRACE, VIEW MIRROR (REAR)BRACE, VIEW MIRROR (REAR)
-
7-309116-06146 BOLTBOLT
-
809320-09009 CUSHIONCUSHION
-
9-294529-46E00 WASHER (LOWER)WASHER (LOWER)
-
1009139-05054 SCREWSCREW
-
11-294484-24F00 NUTNUT
-
1294453-33E00 JOINT, AIR INTAKE (FRONT/RIGHT)JOINT, AIR INTAKE (FRONT/RIGHT)
-
1394454-33E00 JOINT. AIR INTAKE (FRONT/LEFT)JOINT. AIR INTAKE (FRONT/LEFT)
-
14-294420-33E11 PIPE, AIR INTAKE (RIGHT)PIPE, AIR INTAKE (RIGHT)
-
15-394430-33E31 PIPE, AIR INTAKE (LEFT)PIPE, AIR INTAKE (LEFT)
-
1609139-05054 SCREWSCREW
-
1794455-33E00 JOINT, AIR INTAKE (REAR/RIGHT)JOINT, AIR INTAKE (REAR/RIGHT)
-
1894456-33E00 JOINT, AIR INTAKE (REAR/LEFT)JOINT, AIR INTAKE (REAR/LEFT)
-
1994474-33E00 PLATE, AIR GUIDEPLATE, AIR GUIDE
-
2009409-06319 CLIPCLIP
-
2294550-33E01 BRACE, AIR INTAKE PIPE (RIGHT)BRACE, AIR INTAKE PIPE (RIGHT)
-
2394560-33E01 BRACE, AIR INTAKE PIPE (LEFT)BRACE, AIR INTAKE PIPE (LEFT)
-
2401550-06123 BOLTBOLT
